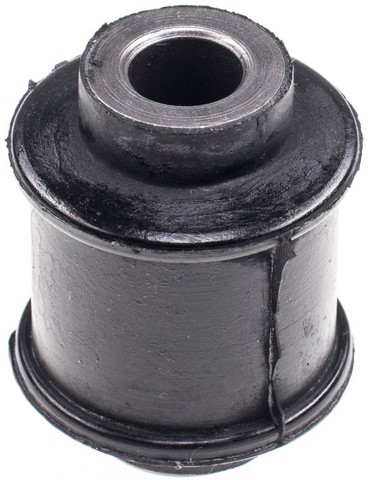

Rear Upper Control Arm Bushing for 2001-2008 Ford Escape & More - Dorman 533-800

$19.99

Vehicles this part fits

    Part number: 533-800
    UPC: 194883740044
    Condition: New
    Weight: 0.90 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $19.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm Bushing P/N:533-800
    Dorman - OE Solutions Suspension Control Arm Bushing P/N:533-800
    $19.99
    $19.99

    Dorman 533-800 rear upper control arm bushing for the 2001-2008 Ford Escape and other vehicles lets you replace the worn bushing instead of the whole arm. This bushing, also called a suspension control arm bushing, cushions the pivot where the arm meets the vehicle and is a direct replacement.

    • Steel and rubber construction
    • Rust-resistant coating
    • Sold as the bushing alone, so the complete control arm stays in place
    • Inside diameter of 12.2 mm and outside diameter of 38 mm
    • Part of the Dorman OE Solutions line

    Quick facts

    • Part: Dorman 533-800 control arm bushing
    • Also called: suspension control arm bushing
    • Fits: 2001-2008 Ford Escape and other vehicles
    • Position: Rear upper
    • Material: Steel and rubber
    • Condition: New

    A worn bushing can show up as a clunk over bumps, loose or vague handling, or cracked, split or shifted rubber. A clunk can also come from other rear suspension parts, so with the engine off, look for damaged rubber where you can see it, compare the old bushing with the sizes below once it is out, and have a shop inspect the rear arms if you are unsure. This listing is one bushing, and the matching bushings on both sides are normally replaced together.

    Fits

    It fits the 2001-2008 Ford Escape, the 2001-2006 Mazda Tribute and the 2005-2008 Mercury Mariner.

    Specifications

    Fit and size

    • Position: rear upper
    • Quantity per vehicle: 4
    • Inside diameter: 12.2 mm
    • Outside diameter: 38 mm
    • Mounting hole diameter: 18.4 mm
    • Distance between mounting holes: 62.8 mm
    • Wall thickness: 23.8 mm
    • Length: 50 mm
    • Width: 60 mm
    • Height: 66.2 mm

    Build and materials

    • Material: steel and rubber
    • Coating: rust-resistant
    • Grade: standard replacement
    • Condition: new
    • Country of origin: China

    In the box

    One control arm bushing; the vehicles take four. Mounting hardware, a bracket and a dust boot are not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: 602.65045
    TD4366W · 12200359 · K200359 · FB1128 · GS40429 · MS40429 · 1408076 · JBU1563

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    602.65045, TD4366W, 12200359, K200359, FB1128, GS40429, MS40429, 1408076, JBU1563

    Frequently Asked Questions

    Is the Dorman 533-800 a Ford Escape control arm bushing for 2001-2008?

    Yes. Dorman 533-800 is a rear upper control arm bushing for the 2001-2008 Ford Escape. It also fits the 2001-2006 Mazda Tribute.

    Does the Dorman control arm bushing come with bolts or a bracket?

    No. This listing is one steel and rubber bushing. Mounting hardware, a bracket and a dust boot are not included, so plan on new bolts.

    What size is the Dorman 533-800 bushing?

    Dorman 533-800 has a 12.2 mm inside diameter, a 38 mm outside diameter, a 50 mm length and an 18.4 mm mounting hole diameter.

    What noises can a worn rear upper control arm bushing make?

    A worn bushing can cause a clunk over bumps or a loose feel in handling, and cracked or split rubber is a visible sign. A shop can inspect the rear suspension to confirm.

    Is this bushing steel or all rubber?

    It is steel and rubber, with a rust-resistant coating. It is a standard replacement grade bushing.
