Front Right Lower Control Arm Bushing for 2013-2018 Acura RDX - Dorman 540-832

$121.99

Vehicles this part fits

    Part number: 540-832
    UPC: 194883771505
    Condition: New
    Weight: 6.91 LBS
    Item Package Quantity: 1
    $121.99
    Adding to cart… The item has been added

    Have questions?

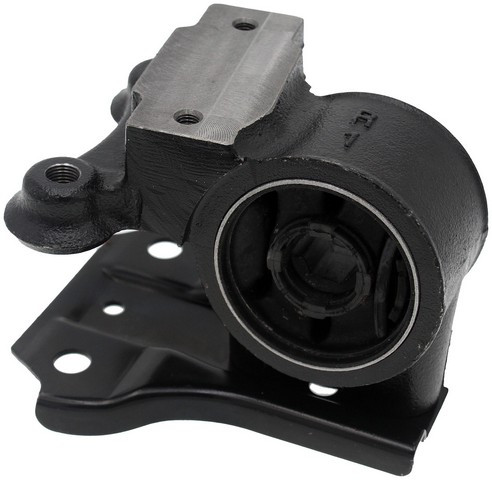

    Dorman - OE Solutions Suspension Control Arm Bushing P/N:540-832
    Dorman - OE Solutions Suspension Control Arm Bushing P/N:540-832
    $121.99
    $121.99

    Dorman 540-832 front right lower control arm bushing for the 2013-2018 Acura RDX cushions the pivot where the control arm meets the vehicle. It is one of the Dorman control arm bushings in the OE Solutions line.

    • Rubber and steel construction with a rust-resistant coating
    • Bolt-on mounting with 12 mm and 8 mm mounting holes
    • Replaces only the worn bushing, not the complete control arm
    • Standard replacement grade
    • Quality inspection carried out so the part meets product standards

    Quick facts

    • Part: Dorman 540-832 control arm bushing
    • Also called: suspension control arm bushing
    • Fits: 2013-2018 Acura RDX
    • Position: Front right lower rearward
    • Material: Steel and rubber
    • Condition: New

    A clunk over bumps, uneven tire wear or a loose steering feel can mean a worn bushing, though other suspension parts can produce the same signs. Before you replace this bushing, rule out a worn ball joint, a tired strut mount and damaged sway bar links.

    Fits

    This bushing is a direct-fit replacement for the 2013-2018 Acura RDX, made to match the design and dimensions of the original components. The RDX takes one for the front right lower rearward position; the front left is a separate part ordered separately, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front right lower rearward
    • Quantity per vehicle: 1 for this position
    • Inside diameter: 18.5 mm
    • Outside diameter: 73.4 mm
    • Mounting hole diameters: 12 mm and 8 mm
    • Distance between mounting holes: 74 mm
    • Length: 144.4 mm
    • Width: 57.5 mm
    • Bushing width: 66.2 mm
    • Wall thickness: 10.4 mm

    Build and materials

    • Material: steel and rubber
    • Coating: rust-resistant
    • Mounting type: bolt-on
    • Grade: standard replacement
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One control arm bushing. Mounting hardware, a bracket and a dust boot are not included, so plan on new mounting bolts, since the old ones may not be reusable.

    Interchange: 51395TX4A01 · 51395TX4H51

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    51395TX4A01, 51395TX4H51

    Frequently Asked Questions

    Is the Dorman suspension control arm bushing 540-832 for the front right side?

    Yes. Dorman 540-832 is for the front right lower rearward position on the 2013-2018 Acura RDX, and the front left bushing is a separate part ordered separately.

    Does the Dorman 540-832 bushing come with bolts or a bracket?

    No. Dorman 540-832 is one control arm bushing only. Mounting hardware, a bracket and a dust boot are not included, so plan on new bolts.

    What is this control arm bushing made of?

    This bushing is made of steel and rubber and has a rust-resistant coating. It measures 18.5 mm inside diameter and 73.4 mm outside diameter.

    How can I tell if a front lower control arm bushing is worn?

    Cracked or split rubber you can see, a clunk over bumps or a loose steering feel can mean the bushing is worn. A shop can confirm it.

    Does Dorman 540-832 replace number 51395TX4H51?

    Yes. 51395TX4H51 is one of the numbers Dorman 540-832 replaces, along with 51395TX4A01.
