Front Right Lower Control Arm for 1996-2002 Toyota 4Runner - Dorman 520-464

$178.99

Vehicles this part fits

    Part number: 520-464
    UPC: 019495221029
    Condition: New
    Weight: 15.80 LBS
    Item Package Quantity: 1
    $178.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm P/N:520-464
    Dorman - OE Solutions Suspension Control Arm P/N:520-464
    $178.99
    $178.99

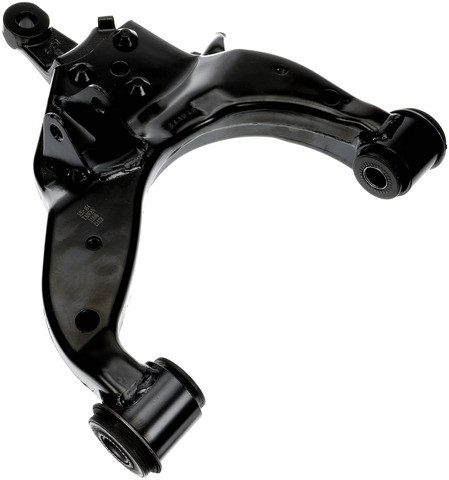

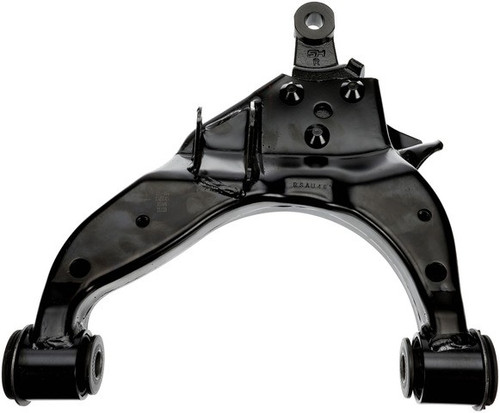

    Dorman 520-464 front right lower control arm for the 1996-2002 Toyota 4Runner connects the wheel to the chassis and guides it as the suspension moves. It is a direct replacement, precision-engineered to match the design and dimensions of original components.

    • Dorman OE Solutions line, standard replacement grade
    • Steel control arm with a powder-coated finish for rust and corrosion resistance
    • Bushings are included for a complete installation that saves time and labor
    • Press-in end 2 type, with a casting/forged arm
    • Thorough quality control testing by Dorman's product and quality engineers

    Quick facts

    • Part: Dorman 520-464 control arm
    • Also called: suspension control arm
    • Fits: 1996-2002 Toyota 4Runner
    • Position: Front right lower
    • Material: Steel
    • Condition: New

    A worn control arm or bushing can show up as a clunk over bumps, a car that pulls or wanders, or uneven tire wear. Before you replace the arm, rule out worn ball joints, tie rod ends, shocks and wheel bearings, which can produce similar symptoms.

    Fits

    It fits the 1996-2002 Toyota 4Runner. This listing is one arm for the front right; the front left is a separate part, and both sides are normally replaced together. Each side of the front axle takes one.

    Specifications

    Fit and size

    • Position: Front right lower
    • Quantity per vehicle: 1 per side
    • Length: 262.5 mm
    • Bushing inside diameter: 14.3 mm
    • Bushing outside diameter: 39.6 mm
    • Bushing length: 92 mm

    Build and materials

    • Control arm type: Casting/Forged
    • Material: Steel
    • Finish: Powder coated
    • Bushing material: Rubber
    • End 2 type: Press in
    • Grade: Standard replacement
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One control arm with its bushings. The ball joint, grease fitting and mounting hardware are not included, so plan on new bolts rather than reusing the old ones.

    Interchange: 102-6716
    CA12160 · 5CB86053 · RK640426 · FA3102 · GS86111 · CMS86111 · 2606101 · SRK640426 · X50CJ7045 · JTC2500 · 4806835080 · 4806835081

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    102-6716, CA12160, 5CB86053, RK640426, FA3102, GS86111, CMS86111, 2606101, SRK640426, X50CJ7045, JTC2500, 4806835080, 4806835081

    Frequently Asked Questions

    Is this 1996-2002 Toyota 4Runner lower control arm for the front right or the left side?

    It is the front right lower arm. Dorman 520-464 fits the 1996-2002 Toyota 4Runner, and the left side is a separate part.

    Does this Dorman control arm include the bushings?

    Yes, the bushings come with the arm. The ball joint, grease fitting and mounting hardware are not included.

    What is this suspension control arm made of and how is it finished?

    Dorman 520-464 is a steel arm with a powder-coated finish and rubber bushings. It is a casting/forged type with a press-in end 2.

    What can a worn control arm bushing feel like?

    A worn bushing or arm can show up as a clunk over bumps, a car that wanders or pulls, or uneven tire wear. A shop can check the suspension to find the cause.

    How large are the bushings on this control arm?

    The bushing is 39.6 mm outside diameter, 14.3 mm inside diameter and 92 mm long. The arm itself measures 262.5 mm in length.
