Rear Upper Control Arm for 2009-2013 Toyota Matrix & More - Dorman 524-315

$62.99

Vehicles this part fits

    Part number: 524-315
    UPC: 885484454606
    Condition: New
    Weight: 11.80 LBS
    Item Package Quantity: 1
    $62.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm P/N:524-315
    Dorman - OE Solutions Suspension Control Arm P/N:524-315
    $62.99
    $62.99

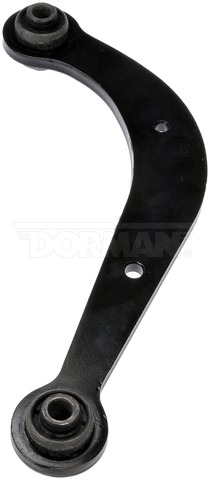

    Dorman 524-315 rear upper control arm for the 2009-2013 Toyota Matrix and other vehicles links the rear suspension to the body. This Dorman control arm is a standard-replacement part for the rear left and rear right upper positions.

    • Part of the Dorman OE Solutions line in a standard-replacement grade
    • Steel arm with a powder-coated finish that resists rust and corrosion
    • Rubber bushings come with the arm, saving time and labor
    • Stamped, bent shape, 262.5 mm long with 296 mm between mounting holes

    Quick facts

    • Part: Dorman 524-315 control arm
    • Also called: suspension control arm
    • Fits: 2009-2013 Toyota Matrix and other vehicles
    • Position: rear left upper and rear right upper
    • Material: Steel
    • Condition: New

    A worn suspension control arm can show up as a clunk over bumps, uneven rear tire wear or loose, wandering handling. Those signs alone do not prove this arm is the problem, because a worn shock absorber can make a similar noise.

    Fits

    This control arm is a direct replacement for the 2009-2013 Toyota Matrix, the 2003-2006 Pontiac Vibe and the 2000-2005 Toyota Celica. This listing is one arm: the 2009-2013 Toyota Matrix takes one on each side of the rear, and the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: rear left upper and rear right upper
    • Length: 262.5 mm
    • Distance between mounting holes: 296 mm
    • Bushing inside diameter: 14.3 mm
    • Bushing outside diameter: 39.6 mm
    • Bushing length: 92 mm

    Build and materials

    • Type: stamped, bent shape
    • Material: steel
    • Finish: powder coated
    • Bushing material: rubber
    • Grade: standard replacement
    • Condition: new
    • Country of origin: Turkey

    In the box

    One rear upper control arm with rubber bushings. The ball joint and mounting hardware are not included, so plan on new fasteners.

    Interchange: TC6609 · CA5194 · 19184441 · 88971293 · 2CB861027 · RK642411 · RK642456 · GS861013 · CMS861013 · 4877020010 · 4877020020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TC6609, CA5194, 19184441, 88971293, 2CB861027, RK642411, RK642456, GS861013, CMS861013, 4877020010, 4877020020

    Frequently Asked Questions

    Is this Dorman upper control arm right for the 2009-2013 Toyota Matrix?

    Yes. Dorman 524-315 is a rear upper control arm for the 2009-2013 Toyota Matrix, and the same number covers both the rear left and rear right upper positions.

    Does the Dorman 524-315 control arm come with bushings and a ball joint?

    Partly. Dorman 524-315 includes rubber bushings, but the ball joint and mounting hardware are not included.

    What is the Dorman OE Solutions control arm made of?

    This rear upper control arm is steel with a powder-coated finish, and its bushings are rubber. It is a stamped, bent design in the standard-replacement grade.

    How do I know if a rear upper control arm bushing is worn?

    Cracked or torn bushing rubber, a clunk over bumps or uneven rear tire wear can all mean a worn arm. A shop can safely check the rear suspension for play.

    Is 4877020010 a number that Dorman 524-315 replaces?

    Yes. 4877020010 is one of the numbers this part replaces, along with 4877020020 and the other numbers on the Interchange line.
