Front Lower Control Arm for 2009-2015 Jaguar XF & More - Dorman 524-562

$222.99

Vehicles this part fits

    Part number: 524-562
    UPC: 885484493674
    Condition: New
    Weight: 8.68 LBS
    Item Package Quantity: 1
    $222.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm P/N:524-562
    Dorman - OE Solutions Suspension Control Arm P/N:524-562
    $222.99
    $222.99

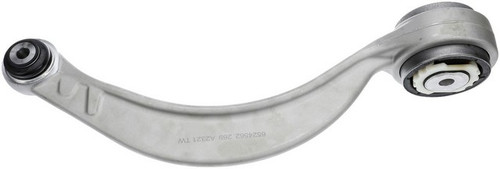

    Dorman 524-562 front lower control arm for the 2009-2015 Jaguar XF and other vehicles links the wheel assembly to the chassis. This Dorman control arm replaces a worn or damaged arm in the front lower suspension.

    • Dorman OE Solutions control arm in standard replacement grade
    • Stamped steel arm with a powder-coated finish for rust and corrosion resistance
    • Rubber bushings included to save installation time and labor
    • Quality control testing by product and quality engineers for sustained performance

    Quick facts

    • Part: Dorman 524-562 control arm
    • Also called: suspension control arm
    • Fits: 2009-2015 Jaguar XF and other vehicles
    • Position: Front right lower forward, front left lower forward
    • Material: Steel
    • Condition: New

    A worn control arm can show up as a clunk over bumps, uneven tire wear or a car that wanders in the lane. Before you replace the arm, rule out a worn ball joint, a worn sway bar link and a loose wheel, since each can cause similar noise and wear.

    Fits

    The vehicles it fits include the 2009-2015 Jaguar XF, the 2010-2015 Jaguar XFR and the 2013-2015 Jaguar XFR-S. This Dorman lower control arm is a direct replacement that fits and performs like the original equipment on these vehicles. Each front side takes one arm; this listing is a single arm, and the other side of that axle is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front right lower forward, front left lower forward
    • Quantity per vehicle: 1 per side
    • Length: 262.5 mm
    • Bushing outside diameter: 39.6 mm
    • Bushing inside diameter: 14.3 mm
    • Bushing length: 92 mm

    Build and materials

    • Control arm type: stamped
    • Material: steel
    • Finish: powder coated
    • Bushing material: rubber, included
    • End 2 type: press in
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One control arm with its rubber bushings. A ball joint and mounting hardware are not included, so plan on new fasteners, because the old ones may not be reusable.

    Interchange: 102-8214
    TC3552 · CA5144 · 6CB101213 · C2C13829 · C2C15324 · C2C20618 · C2C26261 · C2C26835 · C2C36868 · C2C39683 · C2C6500 · C2Z10052 · XR845712 · RK642022 · GS101217 · CMS101217 · 2607088 · X21CJ7001 · V410058

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    102-8214, TC3552, CA5144, 6CB101213, C2C13829, C2C15324, C2C20618, C2C26261, C2C26835, C2C36868, C2C39683, C2C6500, C2Z10052, XR845712, RK642022, GS101217, CMS101217, 2607088, X21CJ7001, V410058

    Frequently Asked Questions

    Is Dorman 524-562 a 2009-2015 Jaguar XF control arm?

    Yes. Dorman 524-562 is a front lower control arm for the 2009-2015 Jaguar XF, and each front side takes one arm.

    Which of the 2009-2015 Jaguar XF front suspension arms is this one?

    Dorman 524-562 is the front lower forward arm, listed for both the right and left sides. If your car is not named here, look it up in the "Vehicles it fits" section on this page.

    Does this suspension control arm come with bushings or a ball joint?

    Yes, it includes rubber bushings. No, a ball joint and mounting hardware are not included.

    Are the bushings on this control arm rubber?

    Yes. The bushing is rubber and measures 39.6 mm outside diameter, 14.3 mm inside diameter and 92 mm long.

    What does a worn bushing on a stamped steel control arm look like?

    Cracked, torn or separated rubber, or play at the bushing end, can mean the bushing is worn. A shop can test the suspension if you only notice a clunk or uneven tire wear.
