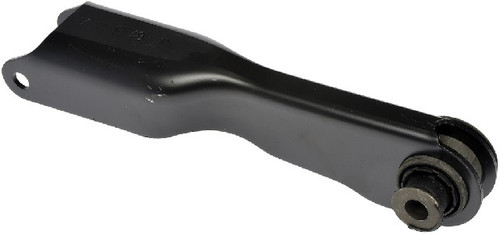

Dorman 526-231 rear left lower control arm for the 2005-2010 Honda Odyssey links the rear left wheel to the suspension. This Dorman control arm, also listed as a suspension control arm, is a stamped steel arm that comes with its bushings.
- Part of the Dorman OE Solutions product line
- Stamped steel arm with a powder-coated finish for resistance to rust and corrosion
- Rubber bushings included with the arm
- Straight arm shape with a bracket at end 2
Quick facts
- Part: Dorman 526-231 rear left lower control arm
- Also called: suspension control arm
- Fits: 2005-2010 Honda Odyssey
- Position: Rear left lower rearward
- Material: Steel arm with rubber bushings
- Condition: New
Clunking from the rear suspension, uneven tire wear or torn bushings can mean a control arm is worn. Before you replace this arm, rule out worn shocks, loose fasteners and alignment problems, since a worn arm is not the only source of rear noise or uneven tire wear. Control arms are normally replaced as a pair across the axle, and this listing is one arm for the rear left; the rear right is ordered separately.
Fits
As a Honda Odyssey control arm for 2005-2010, it is a direct-fit replacement for the rear left lower position, which takes one arm.
Specifications
Fit and size
- Position: rear left lower rearward
- Quantity: 1 for the rear left position
- Length: 522.5 mm, with 522.5 mm between mounting holes
- Width: 245.13 mm
- Height: 84.54 mm
- Bushing inside diameter: 16 mm
- Bushing outside diameter: 43.78 mm
- Bushing length: 52 mm
Build and materials
- Construction: stamped, straight shape, bracket at end 2
- Control arm material: steel
- Bushing material: rubber
- Finish: powder coated
- Grade: standard replacement
- Ball joint and grease fitting: not included
- Condition: new
- Country of origin: China
In the box
One control arm with its bushings, one bolt and one washer. The ball joint, grease fitting and other mounting hardware are not included, so plan on new fasteners where the job calls for them.
Interchange: CA14892 · 52360SHJA00 · 5CB60426 · RK643936 · GS601215 · CMS601215 · 2608487
This part cross-references / interchanges with the following part numbers:
CA14892, 52360SHJA00, 5CB60426, RK643936, GS601215, CMS601215, 2608487
Frequently Asked Questions
Is this the 2008 Honda Odyssey lower control arm for the left or right side?
It is the left side. Dorman 526-231 is a rear left lower control arm for the 2005-2010 Honda Odyssey, and the rear right takes a separate part.
Does Dorman 526-231 work as the rearward 2010 Honda Odyssey lower control arm?
Yes. Dorman 526-231 is cataloged as the rear left lower rearward arm for the 2005-2010 Honda Odyssey, so 2010 is covered.
What is this DORMAN lower control arm made of?
The arm is stamped steel with a powder-coated finish, and its bushings are rubber.
Does Dorman 526-231 come with a ball joint or hardware?
No ball joint, grease fitting or extra hardware. Dorman 526-231 comes as one control arm with its bushings, one bolt and one washer.
Does Dorman 526-231 replace part number 52360SHJA00?
Yes. 52360SHJA00 is one of the numbers Dorman 526-231 replaces, and the Interchange line lists the others.
