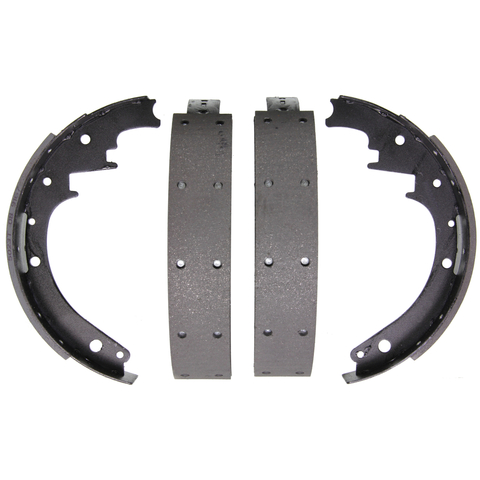

Drum Brake Shoe for 1959-1970 Buick Electra & More - Wagner Brake Z197R

$42.99

Vehicles this part fits

    Part number: Z197R
    UPC: 008536325437
    Condition: New
    Weight: 8.50 LBS
    Item Package Quantity: 1
    $42.99
    Adding to cart… The item has been added

    Have questions?

    Wagner Brake Drum Brake Shoe P/N:Z197R
    Wagner Brake Drum Brake Shoe P/N:Z197R
    $42.99
    $42.99

    Wagner Brake Z197R drum brake shoe for the 1959-1970 Buick Electra and other vehicles presses its friction material against the brake drum to slow the wheel.

    • OE-matched organic friction material for braking performance
    • Precision-ground friction material to maximize friction-to-drum contact
    • The friction material is riveted to the shoe
    • Attached levers and pins to match the OE design on select applications

    A worn shoe can show up as grinding or scraping when you brake, a pedal that travels farther than before, or a pull to one side. Before you replace the shoes, rule out other causes of those signs, such as a worn drum or a leaking wheel cylinder. This listing is one shoe, and the shoes on both sides of an axle are normally replaced together.

    It is listed for a wide range of Buick models, including the 1962-1964 Buick Estate Wagon and the 1959-1970 Buick LeSabre, at one shoe per application.

    Specifications

    Fit and size

    • Position: front, rear
    • Quantity per application: 1
    • Brake drum diameter: 12.000 in
    • Shoe width: 2.250 in
    • Primary friction material thickness: 0.250 in
    • Secondary friction material thickness: 0.290 in

    Build and materials

    • Friction material: organic
    • Friction material attachment: riveted
    • Country of origin: China

    In the box

    One drum brake shoe. Mounting hardware is not included, so plan on new hardware rather than reusing the old pieces.

    Interchange / FMSI:

    FMSI: S197R

    Interchange: AXS197 · AXS197R · BS197R · BS216 · BX197 · R197 · 197PB · 197PG · 197SG

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    AXS197, AXS197R, BS197R, BS216, BX197, R197, 197PB, 197PG, 197SG, S197R

    Frequently Asked Questions

    Does the Wagner Brake Z197R drum brake shoe fit a 1959-1970 Buick LeSabre?

    Yes, Wagner Brake Z197R is listed for the 1959-1970 Buick LeSabre, the 1959-1970 Buick Electra and the 1962-1964 Buick Estate Wagon. If your Buick is not named here, look it up in the "Vehicles it fits" section.

    Are the levers and pins included with this Z197R drum brake shoe?

    On select applications, yes: attached levers and pins that match the OE design come with the shoe. Mounting hardware is not included.

    What friction material and thickness does the Wagner Brake Z197R shoe have?

    Wagner Brake Z197R has an organic friction material that is riveted to the shoe. The friction material is 0.250 in thick on the primary and 0.290 in thick on the secondary.

    How can I tell when riveted drum brake shoes like these are wearing out?

    Signs can include grinding or scraping when braking, a pedal that travels farther than before, or a pull to one side. A shop can inspect the brakes and measure the friction material.

    What drum size and shoe width is this drum brake shoe made for?

    This shoe is made for a 12.000 in brake drum and is 2.250 in wide.
