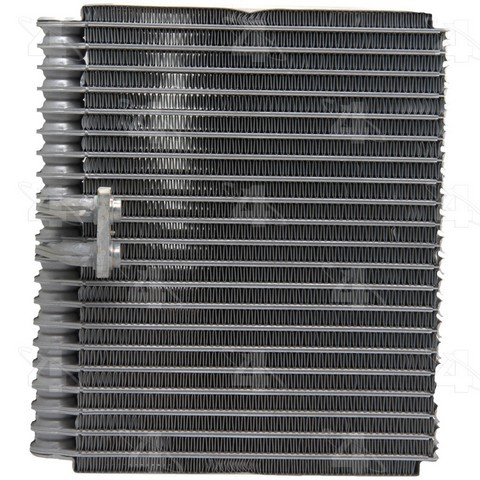

Four Seasons 54846 A/C evaporator core for the 2004-2006 Pontiac GTO removes heat from cabin air as refrigerant passes through it.
- Plate and fin core made of aluminum
- Optimized refrigerant flow through the core

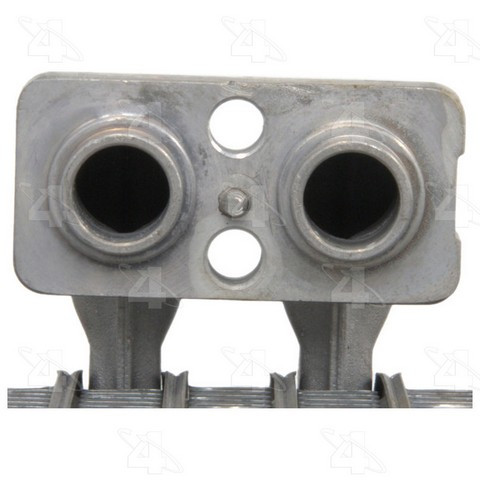

- Male block fittings on both the inlet and the outlet
- Includes gaskets, o-rings or seals for the replacement
Quick facts
- Part: Four Seasons 54846 A/C evaporator core
- Fits: 2004-2006 Pontiac GTO
- Material: Aluminum
- Condition: New
Weak cooling, a musty smell from the vents or an oily film on the vent surfaces can mean the evaporator core is leaking or plugged, though low refrigerant or another A/C fault can show up the same way. Before replacing the core, look over the visible A/C lines and fittings with the engine off for oily residue. A shop can leak-test the system, because opening an A/C line takes recovery equipment.
Fits
This is an application-specific evaporator core for the 2004-2006 Pontiac GTO, and the core design meets or exceeds OE performance and efficiency. The car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Height: 11.5 in
- Width: 10 in
- Thickness: 3.5 in
- Inlet fitting: male block fitting
- Outlet fitting: male block fitting
Build and materials
- Type: plate and fin
- Material: Aluminum
- O-rings: 2, number 24610
- Condition: New
- Country of origin: China
In the box
One evaporator core and two O-rings, number 24610.
Interchange: 1563048 · 288846 · T54846 · 770214 · 11154846 · 706967 · 4712012 · A88846 · 599908 · 97167 · EV939908PF · EV939908PFXC
This part cross-references / interchanges with the following part numbers:
1563048, 288846, T54846, 770214, 11154846, 54846, 706967, 4712012, A88846, 599908, 97167, EV939908PF, EV939908PFXC
Frequently Asked Questions
Does the Four Seasons 54846 evaporator core fit the 2004-2006 Pontiac GTO?
Yes. Four Seasons 54846 is an application-specific A/C evaporator core for the 2004-2006 Pontiac GTO, and the car takes one.
Do O-rings come with this plate and fin evaporator core?
Yes. This evaporator core comes with two O-rings, number 24610.
What is the Four Seasons 54846 evaporator core made of?
Four Seasons 54846 is a plate and fin core made of aluminum, with male block fittings on both the inlet and the outlet.
Could a musty smell from the vents mean the evaporator core is leaking?
It can. A leaking or plugged evaporator core may cause a musty smell or weak cooling, and a shop can leak-test the A/C system to confirm.
How big is this A/C evaporator core?
It measures 11.5 inches high, 10 inches wide and 3.5 inches thick.
