Remanufactured Rear Left Brake Caliper for 2005-2012 Ford F-350 Super Duty & More - Raybestos FRC11588

$147.99

Vehicles this part fits

    Part number: FRC11588
    UPC: 829352350263
    Condition: Refurbished
    Weight: 22.00 LBS
    Item Package Quantity: 1
    $147.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC11588
    Raybestos Brakes Disc Brake Caliper P/N:FRC11588
    $147.99
    $147.99

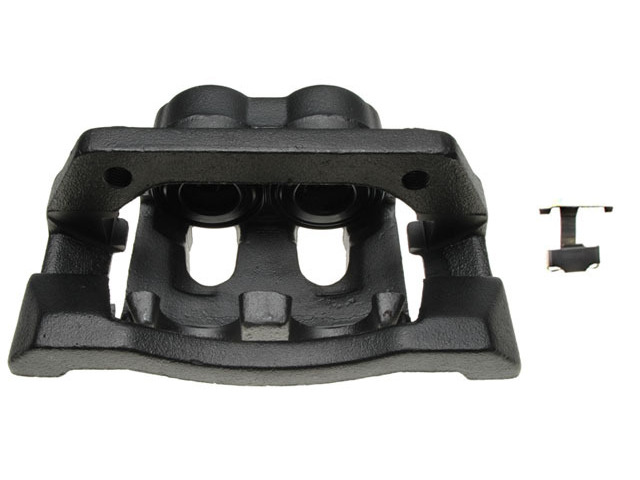

    Raybestos Brakes FRC11588 rear left brake caliper for the 2005-2012 Ford F-350 Super Duty and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper and bracket assembly is made with materials that match OE specifications.

    • Raybestos R-Line non-plated remanufactured semi-loaded caliper and bracket assembly
    • New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replace the old ones for leak-free operation
    • Castings, guide pins and brackets are inspected before being reused
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance and durability

    Quick facts

    • Part: Raybestos Brakes FRC11588 brake caliper
    • Also called: disc brake caliper
    • Fits: 2005-2012 Ford F-350 Super Duty and other vehicles
    • Position: Rear left
    • Material: Cast iron
    • Condition: Remanufactured

    Pulling to one side when braking, brake fluid around the caliper or uneven pad wear can mean a caliper is sticking or leaking. A worn rotor or a seized guide pin can be behind these signs too, so find the cause before buying a caliper.

    Fits

    This rear-left caliper fits the 2005-2012 Ford F-350 Super Duty and the 2011-2012 Ford F-450 Super Duty, with one caliper for the rear-left position on each. This listing is one caliper; the rear right is a separate part, and the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: rear left
    • Quantity per application: 1
    • Piston diameter: 53.9 mm (2.122 in)
    • Bracket mounting hole size: 16.000 mm, thread pitch 2.000 mm
    • Bleeder screw thread: 3/8-24

    Build and materials

    • Caliper type: floating, semi-loaded with bracket
    • Casting material: cast iron
    • Rubber components: EPDM70
    • Condition: remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured semi-loaded caliper and bracket assembly.

    Interchange: 99-17938B · 18-B5029 · 18-P5029 · 141.65526 · 142.65526 · 14-3316
    SC1393 · BC3Z2553A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    99-17938B, 18-B5029, 18-P5029, 141.65526, 142.65526, SC1393, BC3Z2553A, 14-3316

    Frequently Asked Questions

    Is the FRC11588 a brake caliper for the 2005-2012 Ford F-350 Super Duty?

    Yes. Raybestos Brakes FRC11588 is the rear-left caliper for the 2005-2012 Ford F-350 Super Duty, and the 2011-2012 Ford F-450 Super Duty takes it too.

    Does the FRC11588 come with its bracket?

    Yes. This caliper is a semi-loaded caliper and bracket assembly, and its seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new ones.

    What size is the piston on this remanufactured rear-left caliper?

    The piston measures 53.9 mm (2.122 in) across, and the caliper is a floating type. The bleeder screw thread is 3/8-24.

    How can I tell if a rear caliper is sticking or leaking?

    Look for fluid around the caliper, uneven pad wear, or a truck that pulls to one side when braking. A shop can test the brake hydraulics, and a leaking or dragging caliper needs prompt attention.

    How is the Raybestos R-Line remanufactured caliper tested?

    Raybestos Brakes FRC11588 is 100% pressure tested, and its castings, guide pins and brackets are inspected before being reused.
