Remanufactured Front Right Brake Caliper for 2003-2008 Toyota Corolla & More - Raybestos FRC11386

$94.99

Vehicles this part fits

    Part number: FRC11386
    UPC: 829352045022
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $94.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC11386
    Raybestos Brakes Disc Brake Caliper P/N:FRC11386
    $94.99
    $94.99

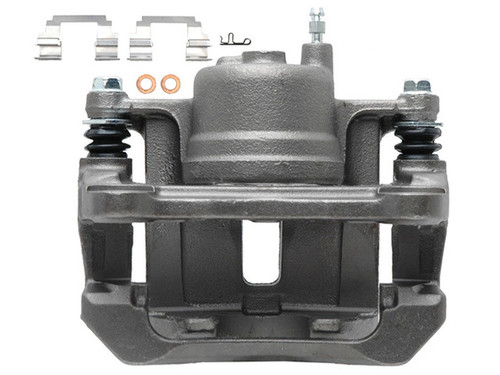

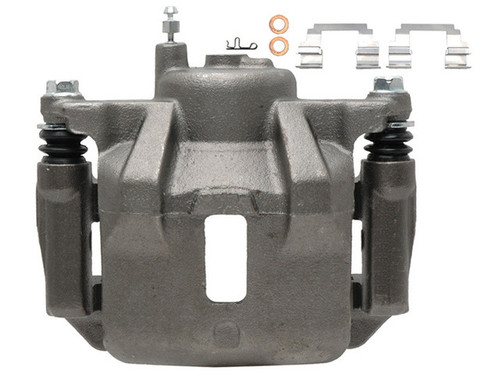

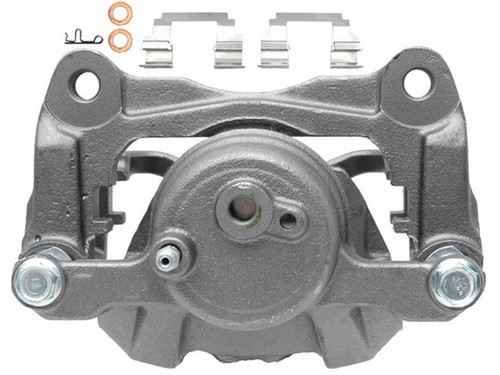

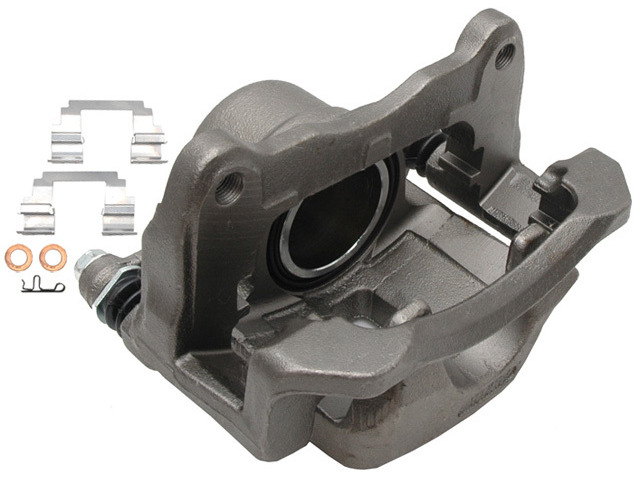

    Raybestos Brakes FRC11386 front right brake caliper for the 2003-2008 Toyota Corolla and other vehicles presses the brake pads against the rotor to slow the car. It is a remanufactured, semi-loaded caliper and bracket assembly.

    • Raybestos R-Line non-plated caliper
    • All new rubber and sealing components: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings
    • Castings, guide pins and brackets inspected before they are reused
    • EPDM70 rubber components for heat resistance and durability
    • 100% pressure tested

    Quick facts

    • Part: Raybestos Brakes FRC11386 brake caliper
    • Also called: disc brake caliper
    • Fits: 2003-2008 Toyota Corolla and other vehicles
    • Position: Front right
    • Material: Cast iron
    • Condition: Remanufactured

    A disc brake caliper that sticks or leaks can show up as the car pulling to one side, uneven pad wear or fluid around the caliper. These signs alone do not prove the caliper is at fault, since a damaged brake hose is one other common cause.

    Fits

    It fits the 2003-2008 Toyota Corolla, the 2003-2008 Toyota Matrix and the 2003-2008 Pontiac Vibe. The front right position takes one caliper, sold individually here; the front left is a separate part, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per application: 1
    • Piston diameter: 57.1 mm (2.248 in)
    • Bracket mounting hole: 12.000 mm, thread pitch 1.250 mm
    • Bleeder screw thread: M7x1

    Build and materials

    • Caliper type: floating
    • Construction: semi-loaded caliper and bracket assembly
    • Casting material: cast iron
    • Condition: remanufactured
    • Country of origin: Mexico

    Interchange: 19-B2699 · 15-19273 · 99-01633B · 19-P2699 · 141.44221 · 142.44221 · 14-9273
    SC1126

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19-B2699, 15-19273, 99-01633B, 19-P2699, 141.44221, 142.44221, SC1126, 14-9273

    Frequently Asked Questions

    Is this the right 2003-2008 Toyota Corolla caliper for the front right side?

    Yes. Raybestos Brakes FRC11386 fits the front right of the 2003-2008 Toyota Corolla. The 2003-2008 Toyota Matrix and the 2003-2008 Pontiac Vibe also fit.

    Are these brake calipers right for the 2003-2008 Toyota Matrix?

    Yes. Raybestos Brakes FRC11386 is a front right caliper for the 2003-2008 Toyota Matrix. The front left side needs its own caliper, ordered separately.

    What piston size does this front right caliper have?

    The piston diameter is 57.1 mm (2.248 in). This is a floating-type caliper with an M7x1 bleeder screw thread.

    Is this remanufactured caliper pressure tested?

    Yes. The caliper is 100% pressure tested, and its rubber components are EPDM70.

    What signs can show a brake caliper is sticking or leaking?

    The car pulling to one side when braking, pads worn unevenly, or fluid around the caliper can all be signs. A shop can test the brakes to find the cause.
