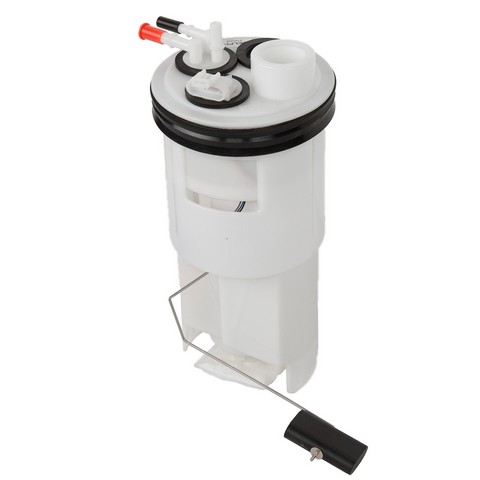

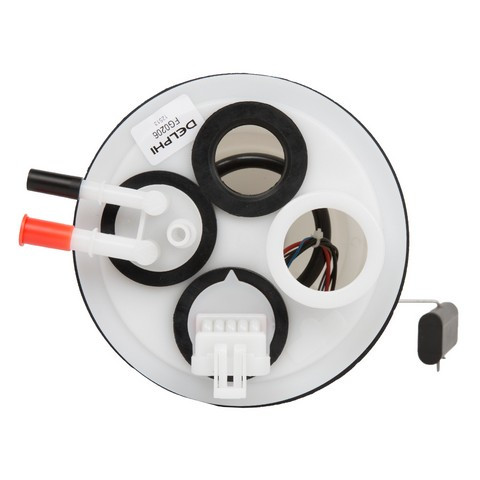

Delphi FG0206 fuel pump module for the 1991-1993 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated and tested, then matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0206 fuel pump module
- Also called: fuel pump assembly
- Fits: 1991-1993 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the module is wearing out. These signs alone do not prove it is the problem, though; a plugged fuel filter is another common cause of hard starting.
Fits
It fits the 1991-1993 Dodge Dakota with the L4-2.5L, V6-3.9L or V8-5.2L and the 1995 Dodge Dakota with the L4-2.5L. The fitment calls for one module per truck.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump module assembly with float arm
- Condition: New
In the box
One fuel pump module assembly with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installation.
- The included instruction sheet covers the steps.
Interchange: 4762 405 · 4762 996 · 953-3069 · 953-6000
MU74 · 4010029 · E7050M · DFG0206 · F3061A · F3073A · 67614 · M273058 · P74654M · 52017633 · AFS0274S · RE0274S · EFP116M · EFP7050M · C0406M · A30048 · SP115 · SP115M · SP140 · USEP7050M
This part cross-references / interchanges with the following part numbers:
MU74, 4010029, E7050M, DFG0206, F3061A, F3073A, 67614, M273058, P74654M, 4762 405, 4762 996, 52017633, 953-3069, 953-6000, AFS0274S, RE0274S, EFP116M, EFP7050M, C0406M, A30048, SP115, SP115M, SP140, USEP7050M
Frequently Asked Questions
Does this Delphi fuel module fit the 1991-1993 Dodge Dakota with the V8-5.2L engine?
Yes. Delphi FG0206 fits the 1991-1993 Dodge Dakota with the L4-2.5L, V6-3.9L or V8-5.2L, and the 1995 Dodge Dakota with the L4-2.5L.
Does the Delphi module come with a float arm?
Yes. Delphi FG0206 is a fuel pump module assembly with a float arm, and an instruction sheet comes with it.
Will the float on this fuel pump module give a correct gas gauge reading?
Its empty float height and float retention match OE specifications, so the gas gauge reads correctly.
Do I need to clean the fuel tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first. The instruction sheet that comes with Delphi FG0206 covers the installation steps.
Does this fuel pump module draw less current?
Yes. It has a lower amperage draw, which puts less load on the electrical system.
