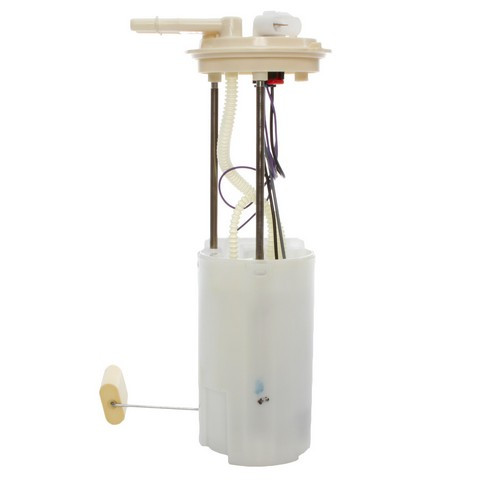

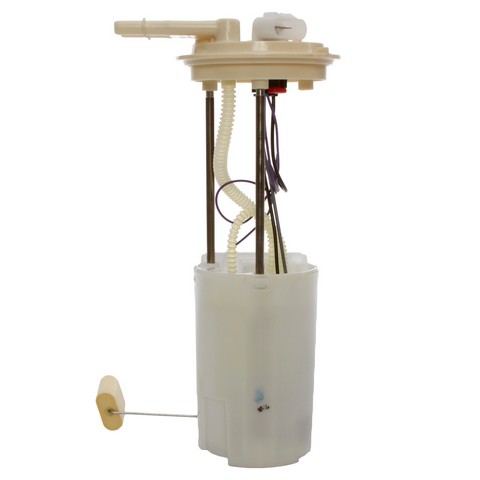

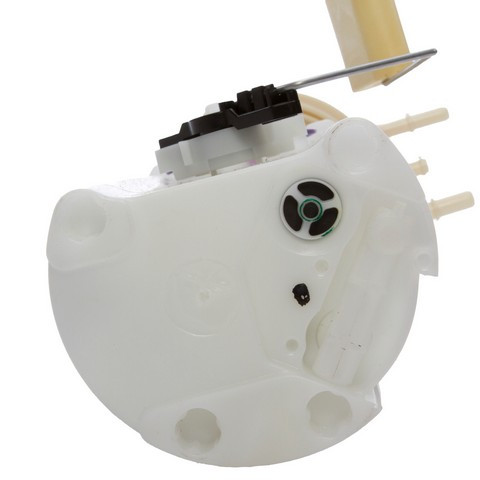

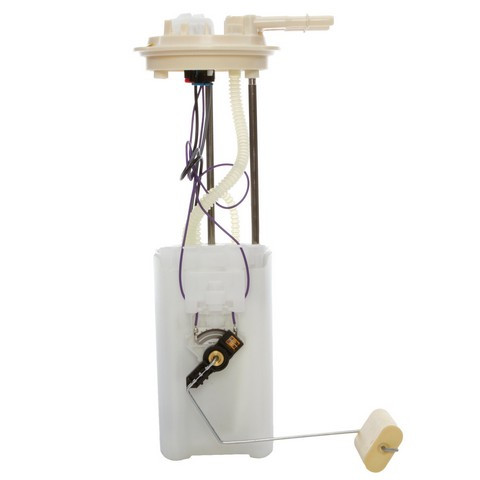

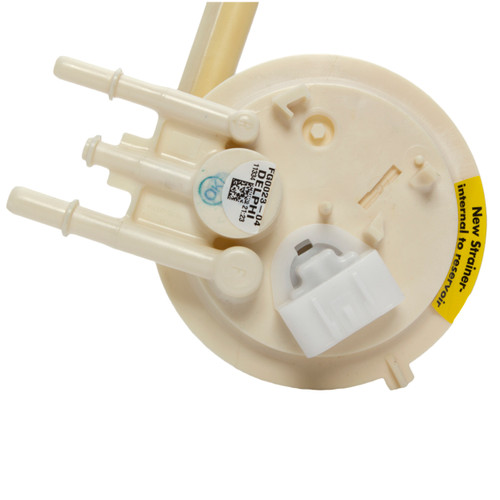

Delphi FG0023 fuel pump module for the 1996 Chevrolet Express 1500 V6 4.3L, V8 5.0L or 5.7L and other vehicles pumps fuel from the tank to the engine. This Delphi fuel pump module assembly is built to the maker's own OE standards and includes the float arm.
- Empty float height and float retention are made to match specifications for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0023 fuel pump module
- Also called: fuel pump assembly
- Fits: 1996 Chevrolet Express 1500 V6 4.3L, V8 5.0L or 5.7L and other vehicles
- Condition: New
Hard starting, sputtering under load or a fuel gauge that reads wrong can point to a worn module, though a clogged fuel filter or a faulty fuel pump relay can lie behind the first two as well. If the module is the cause, this one replaces it.
Fits
The 1996 Chevrolet Express 2500 V6 4.3L, V8 5.0L or 5.7L and the 1996 GMC Savana 1500 V6 4.3L, V8 5.0L or 5.7L are among the other vehicles it fits, and each takes one module. It is a direct-fit replacement for these vehicles.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box

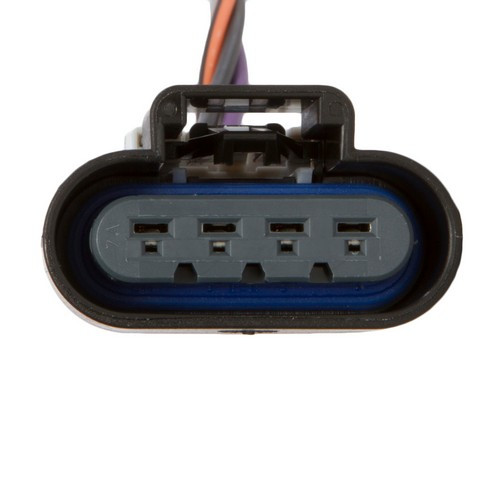

One fuel pump module with float arm, seal, splices, wire harness and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part.
Interchange: 953-5013 · 953-5014
MU1821 · MU6 · 4010071 · E3927M · DFG0023 · P470M · 67335 · P74741M · P74772M · AFS0525S · RE0525S · 19179619 · 19332095 · 25163531 · A30104 · SP470M · SP6004M · USEP3927M
This part cross-references / interchanges with the following part numbers:
MU1821, MU6, 4010071, E3927M, DFG0023, P470M, 67335, P74741M, P74772M, 953-5013, 953-5014, AFS0525S, RE0525S, 19179619, 19332095, 25163531, A30104, SP470M, SP6004M, USEP3927M
Frequently Asked Questions
Will the Delphi fuel pump module fit the 1996 GMC Savana 1500 V6 4.3L, V8 5.0L or 5.7L?
Yes. Delphi FG0023 fits the 1996 GMC Savana 1500 V6 4.3L, V8 5.0L or 5.7L and other vehicles. If yours is not named here, look up your own year and engine in the "Vehicles it fits" section.
What is included with the Delphi fuel module?
Delphi FG0023 comes with the float arm, seal, splices, wire harness and an instruction sheet.
Does the Delphi module draw less amperage?
Yes. This module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
Can a failing fuel pump assembly make the fuel gauge read wrong?
Yes, it can. The float arm in this module is tied to the gauge reading, so a worn float arm may throw the reading off.
Is there anything to do to the tank before installing this module?
Yes. Check and clean the fuel tank first, and use the instruction sheet that comes with the part.
