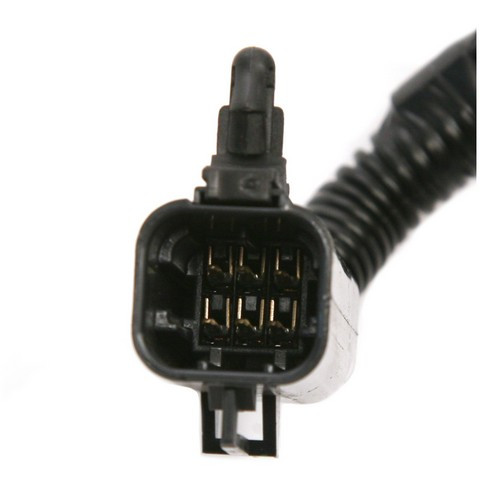

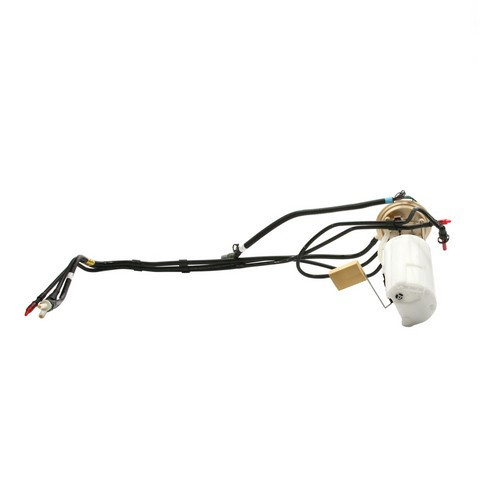

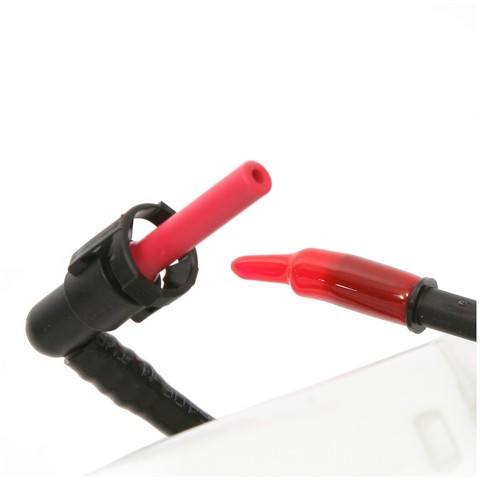

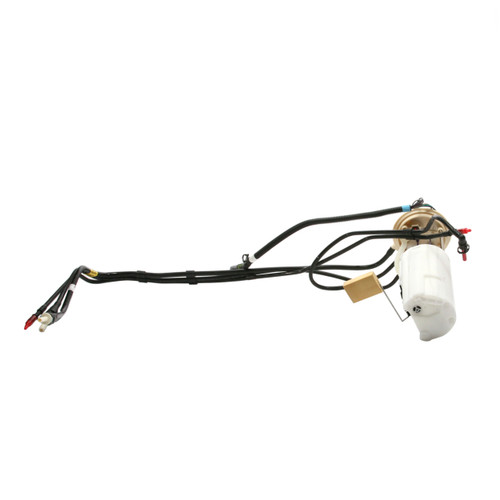

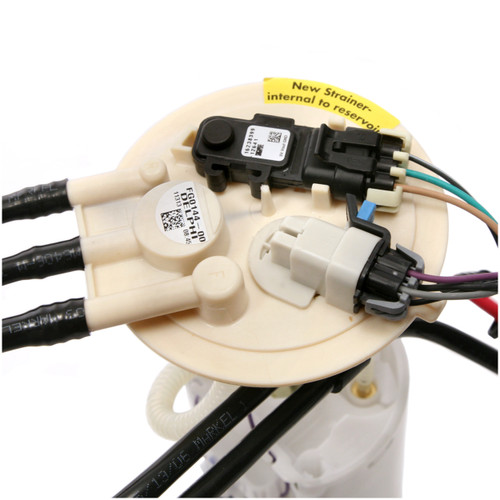

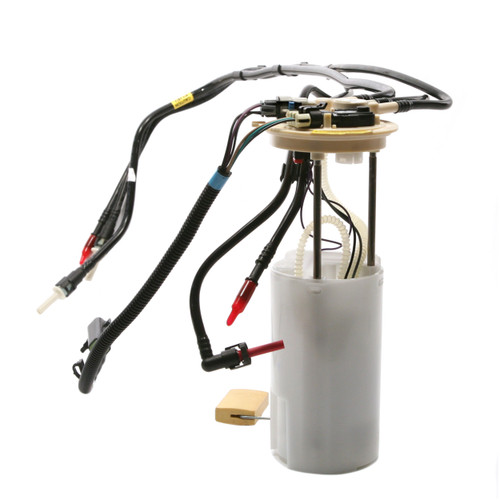

Delphi FG0144 fuel pump module for the 1999-2001 Chevrolet Lumina V6 3.1L and other vehicles moves fuel from the tank to the engine and reports the fuel level to the gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to its vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0144 fuel pump module
- Also called: fuel pump assembly
- Fits: 1999-2001 Chevrolet Lumina V6 3.1L and other vehicles
- Condition: New
Hard starting, sputtering or a gauge that misreads can point to a worn fuel pump assembly, though a fault elsewhere in the fuel system can show up the same way. With the engine off, look at the fuel pump fuse and its wiring connector for damage first; a shop can test fuel pressure safely.
Fits
This module is a direct-fit replacement for the 1999-2001 Chevrolet Lumina V6 3.1L and the 1999 Chevrolet Monte Carlo V6 3.1L. Delphi builds its fuel pumps to its own OE standards.
Specifications
- Engine: V6-3.1L
- Quantity per vehicle: 1
- Condition: New
In the box

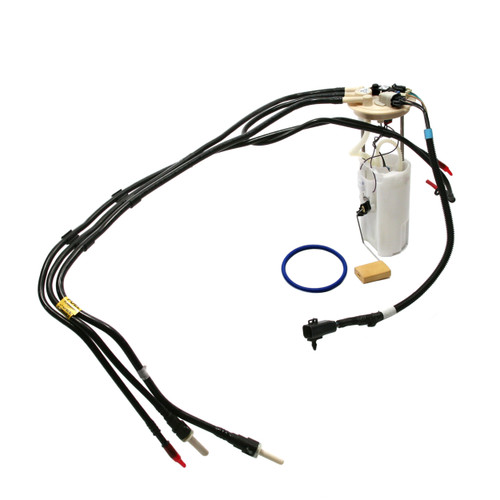

One fuel pump module with float arm, a seal and an instruction sheet. This listing holds one module, and both cars take a single module.
Installation notes
- The instruction sheet in the box covers the installation steps.
- Check and clean the fuel tank during installation.
Interchange: 953-5073 · 953-5075
MU1769 · MU215 · MU220 · 4010245 · E3514M · E3529M · FFG0144 · 67419 · P74960M · P74966M · AFS0757S · RE0757S · 19180108 · 25322662 · 25326603 · A43020 · SP3529M · SP6220M · USEP3529M
This part cross-references / interchanges with the following part numbers:
MU1769, MU215, MU220, 4010245, E3514M, E3529M, FFG0144, 67419, P74960M, P74966M, 953-5073, 953-5075, AFS0757S, RE0757S, 19180108, 25322662, 25326603, A43020, SP3529M, SP6220M, USEP3529M
Frequently Asked Questions
Does the Delphi fuel pump module assembly FG0144 fit the 1999-2001 Chevrolet Lumina V6 3.1L?
Yes. Delphi FG0144 fits the 1999-2001 Chevrolet Lumina V6 3.1L, and it also fits the 1999 Chevrolet Monte Carlo V6 3.1L.
What does the Delphi module include besides the pump?
It comes with a float arm, a seal and an instruction sheet. This listing is one module, and both cars take a single module.
Does the float on Delphi FG0144 give a correct gas gauge reading?
Yes. On Delphi FG0144, empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to clean the tank before fitting this Delphi fuel module?
Yes. The fuel tank should be checked and cleaned during installation, and the instruction sheet in the box covers the steps.
Can a fuel gauge that misreads mean the float on a fuel pump module is worn?
It can, if the float or its arm is the cause. A shop can test the fuel system safely.
