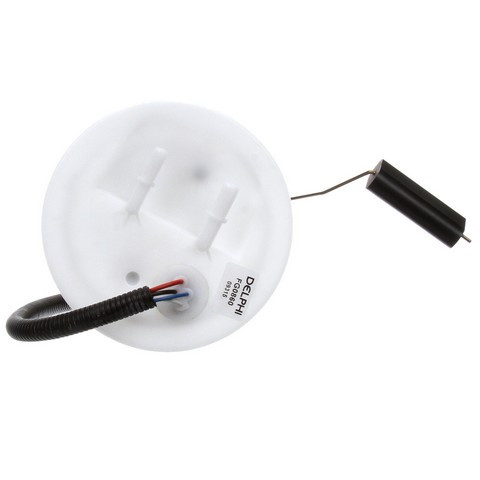

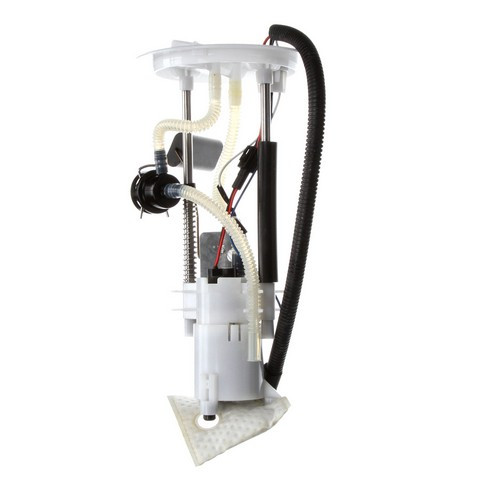

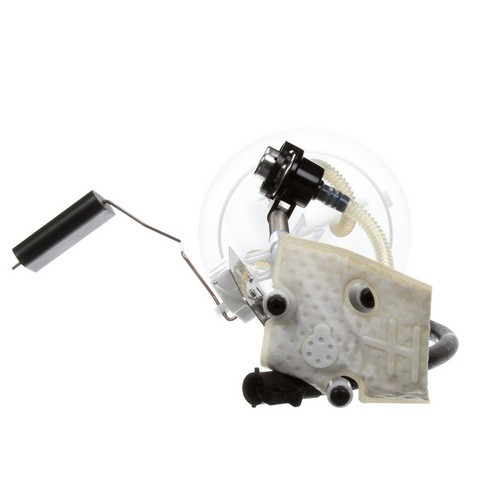

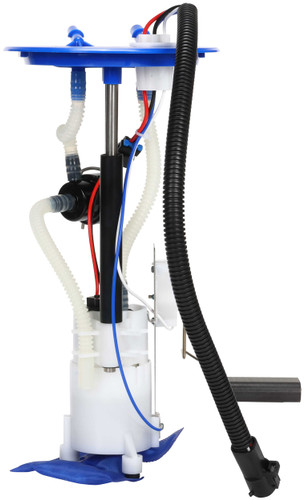

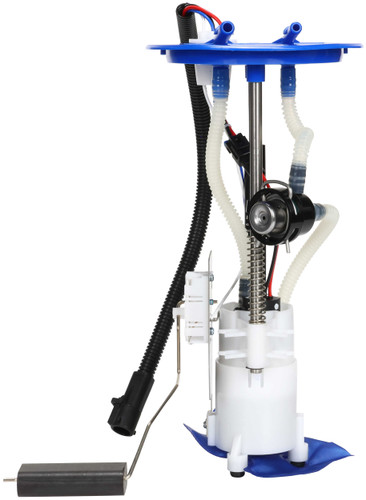

Delphi FG0860 fuel pump module for the 2003-2004 Ford Expedition V8 5.4L moves fuel from the tank to the engine. This Delphi fuel pump module assembly, built to Delphi's OE standards, also carries the float arm that reports the tank level to the gas gauge.
- Empty float height and float retention are set to specification, for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0860 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003-2004 Ford Expedition V8 5.4L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the fuel pump assembly is worn. A clogged fuel filter or a faulty fuel pressure regulator can also be behind hard starting or stalling, so find the cause before replacing the module.
Fits
The fuel pump module fits the 2003-2004 Ford Expedition V8 5.4L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8 5.4L
Build and materials
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- The instruction sheet in the box covers the installation steps.
Interchange: 2L1Z 9H307-BA · 2L1Z 9H307-BB · 2L1Z 9H307-BF · 2L1Z 9H307-BG · PFS-11 · PFS-453 · 150120-A
4010369 · E2360M · CFG0860 · F1371A · 67223 · M2510460 · P76022M · AFS0878S · RE0878S · 1AMFP00106 · C0071M · A30105 · SP2360M · USEP2360M
This part cross-references / interchanges with the following part numbers:
4010369, E2360M, CFG0860, F1371A, 67223, M2510460, P76022M, AFS0878S, RE0878S, 2L1Z 9H307-BA, 2L1Z 9H307-BB, 2L1Z 9H307-BF, 2L1Z 9H307-BG, 1AMFP00106, PFS-11, PFS-453, C0071M, A30105, SP2360M, 150120-A, USEP2360M
Frequently Asked Questions
Is this Delphi fuel pump module right for the 2003-2004 Ford Expedition V8 5.4L?
Yes. Delphi FG0860 is listed for the 2003-2004 Ford Expedition V8 5.4L, and that vehicle takes one.
Does this Delphi fuel module come with the float arm and a seal?
Yes. Delphi FG0860 comes with the float arm, a seal and an instruction sheet.
How does the float on this fuel pump module affect the gas gauge?
The float arm reports the fuel level to the gauge. Its empty height and retention are held to OE specifications so the reading stays correct.
Do I need to prepare the fuel tank before installing Delphi FG0860?
Yes. The tank should be checked and cleaned before the new module goes in, and the instruction sheet in the box covers the remaining steps.
Does Delphi FG0860 replace number 2L1Z 9H307-BA?
Yes. 2L1Z 9H307-BA is one of the numbers Delphi FG0860 replaces.
