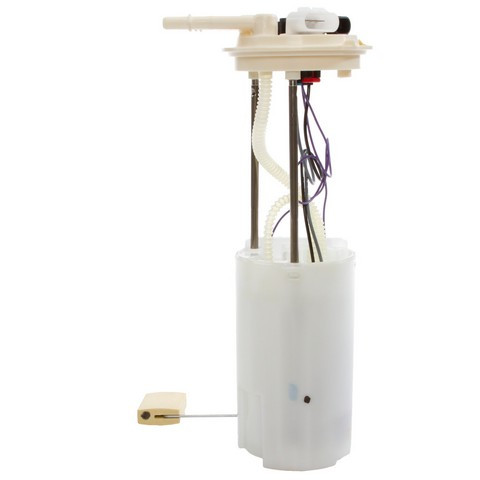

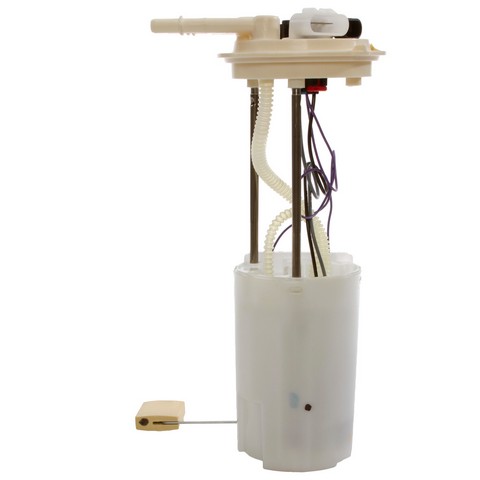

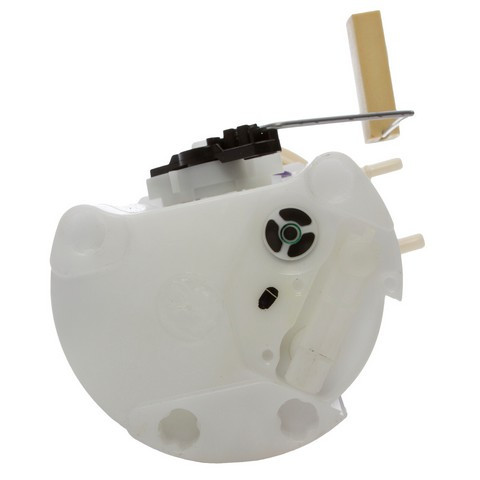

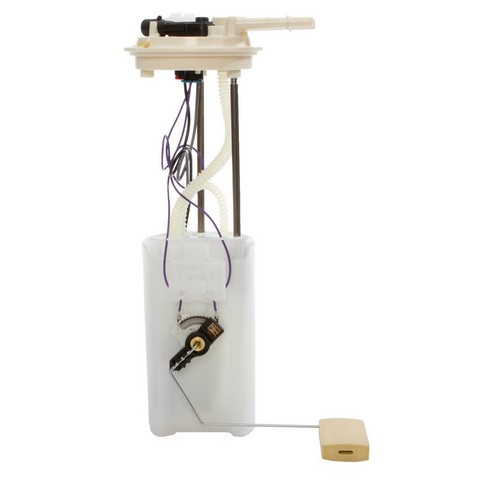

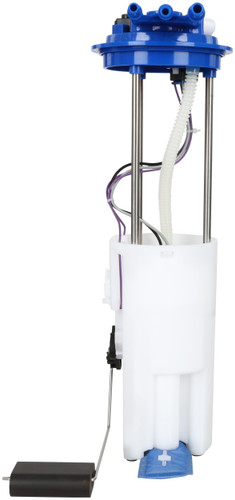

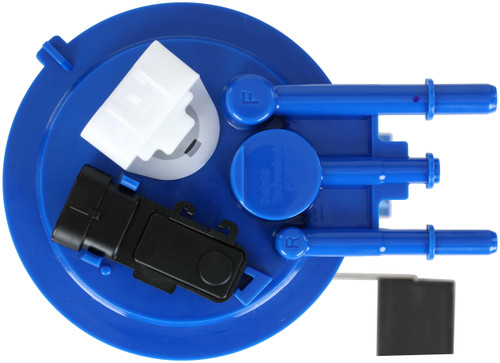

Delphi FG0099 fuel pump module for the 1998-2002 Chevrolet Express 2500 V6 4.3L, V8 5.0L or 5.7L, the 1999 Express 2500 V8 6.5L and other vehicles delivers fuel from the tank to the engine. Its empty float height and float retention match OE specifications, and the assembly is built to Delphi's OE standards.
- Float arm included for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated and tested before it is sold
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0099 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-2002 Chevrolet Express 2500 V6 4.3L, V8 5.0L or 5.7L, the 1999 Express 2500 V8 6.5L and other vehicles
- Condition: New
A worn module, also called a fuel pump assembly, can show up as an engine that cranks but will not start, stumbling under load or a gas gauge that reads wrong. These signs alone do not prove the module is the problem, since a clogged fuel filter can cause some of them too.
Fits
The 1998-2000 GMC Savana 3500 V8 7.4L and the 1998-2002 Chevrolet Express 1500 V6 4.3L, V8 5.0L or 5.7L also fit this module, along with many other vehicles. Each takes one, and the part is matched to the right vehicle application. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

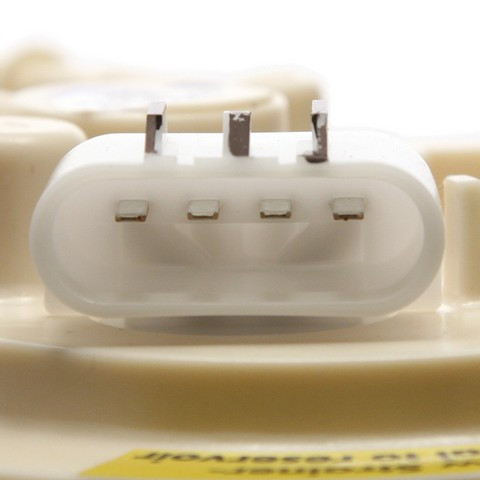

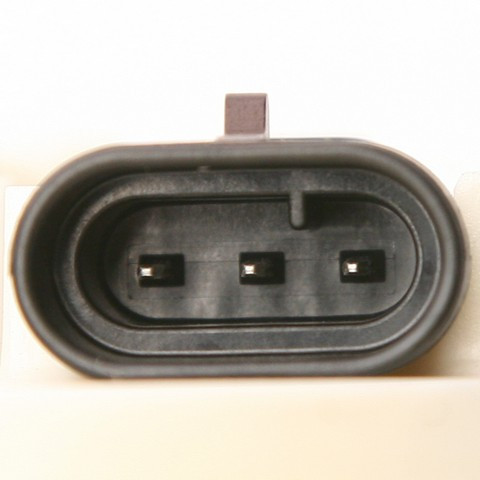

One fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part.
Frequently Asked Questions
Does the Delphi FG0099 fit the 1998-2002 Chevrolet Express 2500 with the V8 5.7L?
Yes. Delphi FG0099 fits the 1998-2002 Chevrolet Express 2500 V6 4.3L, V8 5.0L or 5.7L and the 1999 Express 2500 V8 6.5L. Use the "Vehicles it fits" section for other models.
Does the Delphi fuel pump module assembly come with the float arm and wire harness?
Yes. Delphi FG0099 includes the module with float arm, seal, splices, wire harness and an instruction sheet.
Does the float on this Delphi fuel module give a correct gas gauge reading?
Yes. Empty float height and float retention on this module match OE specifications, which gives a correct gas gauge reading.
Do I need to clean the tank before fitting this Delphi module?
Yes. Check and clean the fuel tank before installing the module, and follow the instruction sheet that comes with it.
Can a gas gauge that reads wrong point to a failing fuel pump module?
Yes, it can, because the float arm is part of this module. Other things can also cause a wrong reading, so a shop can test the fuel system to find the cause.
