V-Belt for 2025-2027 Cunningham Series V-6 & More - Gates TR22386

$24.99

Vehicles this part fits

    Part number: TR22386
    UPC: 072053277920
    Condition: New
    Weight: 0.40 LBS
    Item Package Quantity: 1
    $24.99
    Adding to cart… The item has been added

    Have questions?

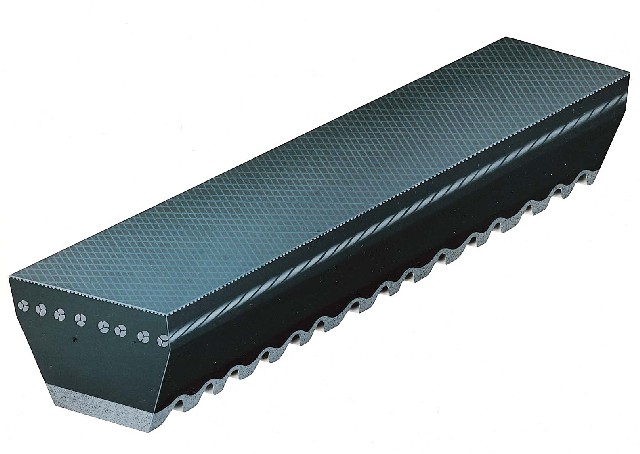

    Gates Accessory Drive Belt P/N:TR22386
    Gates Accessory Drive Belt P/N:TR22386
    $24.99
    $24.99

    Gates TR22386 V-belt for the 2025-2027 Cunningham Series V-6 and other vehicles and equipment carries engine power to the fan and power steering. This Gates V-belt rides in the pulley grooves, and its wedge shape grips the groove walls as it turns.

    • Part of the Gates Green Stripe Truck & Bus Series, designed for heavy-duty truck, bus and off-road equipment applications
    • Green Stripe V-belt absorbs normal shock loads without damage to the belt
    • Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
    • High modulus, high strength polyester tensile cord
    • Oil and heat-resistant construction throughout
    • Meets SAE J636b and SAE J637 specifications, plus RMA oil and heat resistant standards and static conductivity requirements

    Quick facts

    • Part: Gates TR22386 v-belt
    • Fits: 2025-2027 Cunningham Series V-6 and other vehicles and equipment
    • Position: Fan and power steering
    • Material: EPDM belt with polyester cord
    • Condition: New

    A squeal at start-up, cracks across the notches or frayed edges, and shiny glazed sides can mean the belt is worn. Before replacing it, look over each pulley the belt rides on with the engine off and cool; a pulley that wobbles or sits out of line can be the source of the noise, and a new belt alone will not fix that.

    Fits

    This V-belt is listed for a wide range of vehicles and equipment from makes such as Cunningham, Chevrolet, Ford and DAF, among them the 2022-2023 Cunningham Series V-4 and the 2017-2021 Cunningham Series V. This listing is one belt for the fan and power steering drive.

    Specifications

    Fit and size

    • Position: Fan and power steering
    • Cross section: RA
    • Angle: 40°
    • Top width: 15 mm (.594 in)
    • Outside circumference: 993 mm (39.11 in)
    • Effective length: 979 mm (38.53 in)
    • Strand quantity: 1

    Build and materials

    • Type: Truck & Bus V-belt
    • Construction: Notched
    • Belt material: EPDM
    • Cord material: Polyester
    • Condition: New
    • Country of origin: United States

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will the Gates TR22386 V-belt fit a 2022-2023 Cunningham Series V-4?

    Yes. The Gates TR22386 V-belt fits the 2022-2023 Cunningham Series V-4 on the fan and power steering drive; for other vehicles and equipment, look up your own in the "Vehicles it fits" section.

    Is the Gates accessory drive belt TR22386 a notched belt?

    Yes. Gates TR22386 is a notched RA-section belt whose molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat.

    What size is this RA cross-section V-belt?

    This V-belt has a 15 mm (.594 in) top width, a 993 mm (39.11 in) outside circumference and a 979 mm (38.53 in) effective length, with a 40° angle.

    What can a squealing fan and power steering belt mean?

    A squeal, cracks across the notches or glazed, shiny sides can mean this V-belt is worn or slipping, and a slipping belt can leave the steering feeling heavier. Have it checked or replaced promptly.

    Which SAE specifications does this Green Stripe belt meet?

    This Green Stripe Truck & Bus V-belt meets SAE J636b and SAE J637 specifications, along with RMA oil and heat resistant standards and static conductivity requirements.
