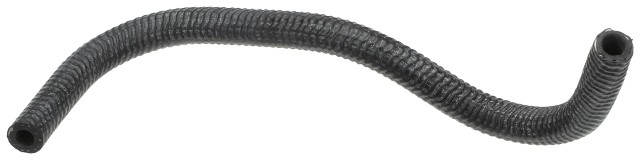

    Gates Engine Coolant Bypass Hose P/N:18376
    Gates Engine Coolant Bypass Hose P/N:18376
    $23.99
    $23.99

    Gates 18376 coolant bypass hose for the 2002-2009 Toyota Camry 4-cylinder 2.4L and other vehicles carries coolant between two engine connections. The part is also called an engine coolant bypass hose.

    • Gates Small I.D. Molded Coolant Hose line, made for smaller, tighter engine compartments
    • Approved for coolant, water and air applications, and for marine use
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube and cover with synthetic fiber knit reinforcement
    • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications

    Quick facts

    • Part: Gates 18376 coolant bypass hose
    • Also called: engine coolant bypass hose
    • Fits: 2002-2009 Toyota Camry 4-cylinder 2.4L and other vehicles
    • Material: EPDM
    • Condition: New

    Coolant drips, a cracked or swollen hose, or a temperature gauge that climbs can mean this hose is worn, though worn hose clamps or the water pump can be behind the same signs. Find the cause before you replace anything.

    Fits

    The 2002-2009 Toyota Camry 4-cylinder 2.4L and the 2002-2008 Toyota Solara 4-cylinder 2.4L both take this hose, one per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Centerline length: 12.7 in (323 mm)
    • Inside diameter, both ends: 8 mm (0.32 in)

    Build and materials

    • Construction: molded
    • Material: EPDM
    • Reinforcement: synthetic fiber knit
    • Standard: SAE 20R3 Type EC Class D-1 and D-2
    • Temperature range: -40 °F to 275 °F (-40 °C to 135 °C)
    • Condition: New
    • Country of origin: United States

    Installation notes

    • Replace the hose clamps each time a new coolant hose is installed.
    • Do not use this hose for fuel or oil transfer applications.

    Interchange: 14661S · 86831 · F10743 · 10376 · 162610H010

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    14661S, 18376, 86831, F10743, 10376, 162610H010

    Frequently Asked Questions

    Is the Gates 18376 coolant bypass hose right for a 2002-2009 Toyota Camry 4-cylinder 2.4L?

    Yes. Gates 18376 fits the 2002-2009 Toyota Camry 4-cylinder 2.4L, and the car takes one hose.

    How long is this coolant bypass hose and what is its inside diameter?

    This hose has a centerline length of 12.7 in (323 mm) and an inside diameter of 8 mm (0.32 in) at both ends. It is molded, with no branches or quick-connect fittings.

    What temperature range is the Gates 18376 hose rated for?

    Gates 18376 is rated from -40 °F to 275 °F (-40 °C to 135 °C). It has an EPDM tube and cover over a synthetic fiber knit reinforcement and meets SAE 20R3 Type EC Class D-1 and D-2.

    Can this bypass hose be used for fuel or oil lines?

    No. It is made for coolant, water and air applications and is also approved for marine use, not for carrying fuel or oil.

    Should I reuse my old clamps when installing this coolant hose?

    No. Fit new hose clamps whenever a new coolant hose goes on.
