Coolant Bypass Hose for 1983-1986 Ford Mustang & More - Gates 21309

$24.99

Vehicles this part fits

    Part number: 21309
    UPC: 072053056884
    Condition: New
    Weight: 0.21 LBS
    Item Package Quantity: 1
    $24.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Coolant Bypass Hose P/N:21309
    Gates Engine Coolant Bypass Hose P/N:21309
    $24.99
    $24.99

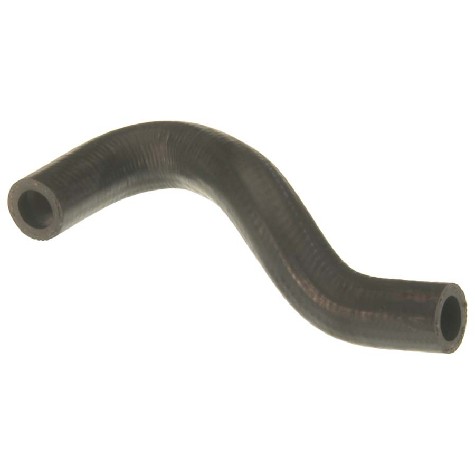

    Gates 21309 coolant bypass hose for the 1983-1986 Ford Mustang V6 3.8L and other vehicles carries coolant between connections in the engine's cooling system. The molded hose is also called an engine coolant bypass hose.

    • Specifically-engineered materials resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • Molded, pre-shaped form made to give a sealed connection
    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Meets requirements of SAE 20R4 class D2 and DIN 73411 class A, except for tolerances
    • Temperature range of -40°F to +257°F (-40°C to +125°C)

    Quick facts

    • Part: Gates 21309 coolant bypass hose
    • Also called: engine coolant bypass hose
    • Fits: 1983-1986 Ford Mustang V6 3.8L and other vehicles
    • Material: EPDM
    • Condition: New

    A worn bypass hose can show as coolant seepage at the ends, cracks, or a swollen, soft or collapsed hose. Before you replace it, rule out a loose clamp or a leak at another connection, since those can leave similar wet spots. Look with the engine off and cool.

    Fits

    This hose is listed for a wide range of Ford, Lincoln and Mercury models, including the 1987 Ford Cougar V6 3.8L and the 1982-1985 Mercury Cougar V6 3.8L, and each takes one hose. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Centerline length: 193 mm (7.6 in)
    • Inside diameter, both ends: 16 mm (0.62 in)

    Build and materials

    • Construction: molded
    • Material: EPDM
    • Contains spring: No
    • Condition: New
    • Country of origin: United States

    Installation notes

    • Replace the hose clamps each time a new coolant hose is installed.
    • Not for fuel or oil transfer applications.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Gates 21309 coolant bypass hose right for a 1983-1986 Ford Mustang V6 3.8L?

    Yes. Gates 21309 is listed for the 1983-1986 Ford Mustang V6 3.8L, and it takes one hose. For other models, open the "Vehicles it fits" section to check your exact model and engine.

    What temperature range can this molded coolant hose handle?

    Gates 21309 handles -40°F to +257°F (-40°C to +125°C). It meets requirements of SAE 20R4 class D2 and DIN 73411 class A, except for tolerances.

    Do I need new hose clamps with a new coolant bypass hose?

    Yes, plan on new hose clamps. They should be replaced each time a new coolant hose is installed.

    How can I tell if my coolant bypass hose is going bad?

    With the engine off and cool, look for cracks, a swollen or soft hose, or coolant seepage at the ends. Any of these can mean the hose is worn and due for replacement.

    Can I use this coolant hose for a fuel or oil line?

    No. Gates 21309 is a coolant hose and is not for fuel or oil transfer applications.
