Coolant Bypass Hose for 2002-2009 Toyota Camry & More - Gates 18375

$23.99

Vehicles this part fits

    Part number: 18375
    UPC: 770075528692
    Condition: New
    Weight: 0.20 LBS
    Item Package Quantity: 1
    $23.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Coolant Bypass Hose P/N:18375
    Gates Engine Coolant Bypass Hose P/N:18375
    $23.99
    $23.99

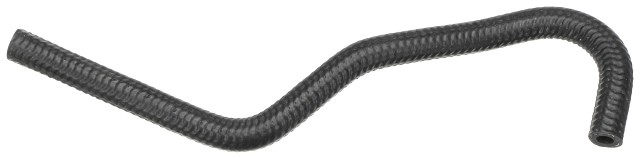

    Gates 18375 coolant bypass hose for the 2002-2009 Toyota Camry 4-cylinder 2.4L and other vehicles carries engine coolant on the run between the pipe and the throttle body.

    • Gates Small I.D. Molded Coolant Hose, factory-molded for smaller, tighter engine compartments
    • Can be used for coolant, water and air applications; also approved for marine applications
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube, synthetic fiber knit reinforcement and EPDM cover
    • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
    • Temperature range: -40 Deg. F to 275 Deg. F (-40 Deg. C to 135 Deg. C)

    Quick facts

    • Part: Gates 18375 coolant bypass hose
    • Also called: engine coolant bypass hose
    • Fits: 2002-2009 Toyota Camry 4-cylinder 2.4L and other vehicles
    • Position: Pipe to throttle body
    • Material: EPDM
    • Condition: New

    Coolant seepage at the hose ends, a cracked, soft or swollen hose, or a coolant level that keeps dropping can mean an engine coolant bypass hose is wearing out. These signs alone do not prove the hose is the problem, since a worn clamp can also leak at the same spot.

    Fits

    It fits the 2002-2009 Toyota Camry 4-cylinder 2.4L and the 2002-2008 Toyota Solara 4-cylinder 2.4L, and each of them takes one hose.

    Specifications

    Fit and size

    • Position: Pipe to throttle body
    • Quantity per vehicle: 1
    • Centerline length: 13.9 in (353 mm)
    • End 1 inside diameter: 8 mm (0.32 in)
    • End 2 inside diameter: 8 mm (0.32 in)

    Build and materials

    • Material: EPDM
    • Construction: molded
    • Condition: New
    • Country of origin: United States

    In the box

    One coolant bypass hose.

    Installation notes

    • Use new hose clamps each time a coolant hose is installed.
    • Not for fuel or oil transfer applications.

    Interchange: 14660S · F10742 · 10375 · 162640H010 · 1626428060

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    14660S, 18375, F10742, 10375, 162640H010, 1626428060

    Frequently Asked Questions

    Is the Gates 18375 coolant bypass hose right for a 2002-2009 Toyota Camry 4-cylinder 2.4L?

    Yes. Gates 18375 fits the 2002-2009 Toyota Camry 4-cylinder 2.4L and the 2002-2008 Toyota Solara 4-cylinder 2.4L. Each of them takes one hose.

    What is the Gates 18375 hose made of, and how long is it?

    The Gates 18375 has an EPDM tube and EPDM cover with synthetic fiber knit reinforcement. Centerline length is 13.9 in (353 mm), with an 8 mm (0.32 in) inside diameter at both ends.

    Can this molded coolant hose carry fuel or oil?

    No. It must not be used for fuel or oil transfer. It can be used for coolant, water and air applications, and is also approved for marine applications.

    How can I tell if a coolant bypass hose is going bad?

    With the engine off and cool, look for cracks, swelling, soft spots or coolant residue at the hose ends. A shop can pressure-test the cooling system if a leak is suspected.

    Should I put new clamps on when installing the Gates 18375?

    Yes. Fit new hose clamps whenever a coolant hose is installed, including the Gates 18375.
