Timing Belt Kit with Water Pump for 1988-1995 Honda Civic & More - Gates TCKWP143

$133.99

Vehicles this part fits

    Part number: TCKWP143
    UPC: 770075368816
    Condition: New
    Weight: 3.80 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP143
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP143
    $133.99
    $133.99

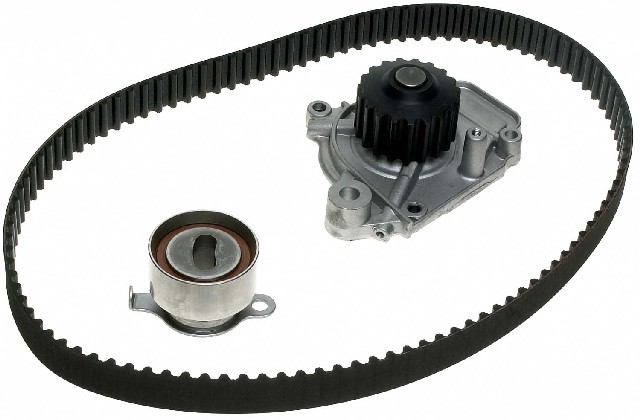

    Gates TCKWP143 timing belt kit with water pump for the 1988-1995 Honda Civic 4-cylinder 1.5L and other vehicles includes a timing belt, a spring tensioner and a water pump for the timing system. Replacing these parts together covers the critical components of the system in a single job.

    • PowerGrip Premium Timing Component Kit with Water Pump (TCKWP) line
    • Water pump included, since a timing-belt-driven water pump should be replaced at the same time as the belt
    • HSN timing belt with fiberglass cord, 106 teeth and a Modified Curvilinear (III) tooth type
    • Water pump designed and built for long-lasting, efficient cooling

    Quick facts

    • Part: Gates TCKWP143 timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 1988-1995 Honda Civic 4-cylinder 1.5L and other vehicles
    • Material: HSN, fiberglass cord (belt)
    • Condition: New

    Coolant weeping from the water pump or a whining noise from the timing-belt area can mean this kit is worn, though a loose accessory belt or a leaking radiator hose can be behind the same signs, so track down the cause before you replace it.

    Fits

    This kit also fits the 1993-1995 Honda Civic Del Sol 4-cylinder 1.5L and the 1988-1991 Honda CRX 4-cylinder 1.5L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Timing belt width: 24 mm (0.945 in)
    • Timing belt teeth: 106

    Build and materials

    • Condition: New
    • Belt material: HSN, fiberglass cord
    • Tooth type: Modified Curvilinear (III)
    • Grade type: OE Performance
    • Tensioner type: Spring
    • Warranty: the Gates warranty matches the original manufacturer's timing belt replacement intervals and covers parts, labor and other associated costs
    • Country of origin: China

    In the box

    One timing belt, one tensioner, one tensioner spring, one water pump and one rubber seal ring. An idler pulley, bolts and an installation tool are not included, so plan on new bolts. This listing is one kit, and the vehicle takes one.

    Installation notes

    • Detailed installation instructions come with the kit as instruction sheet 0098-1611.
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: WPK-0019 · 3435-0143
    AWK1234 · PP143LK2 · TB143LK2 · TB143LK1 · WP143K1A · WP143K1AS · GTKWP143 · 20330K · BWPK41040 · WPK41040 · VKMA93500SWP · USTK143

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP143, WPK-0019, AWK1234, PP143LK2, TB143LK2, TB143LK1, WP143K1A, WP143K1AS, 3435-0143, GTKWP143, 20330K, BWPK41040, WPK41040, VKMA93500SWP, USTK143

    Frequently Asked Questions

    Does the Gates TCKWP143 fit a 1993-1995 Honda Civic Del Sol 4-cylinder 1.5L?

    Yes. Gates TCKWP143 fits the 1993-1995 Honda Civic Del Sol 4-cylinder 1.5L, as well as the 1988-1991 Honda CRX 4-cylinder 1.5L.

    Does this Gates timing belt and water pump kit include an idler pulley?

    No. This kit has one belt, one tensioner, one tensioner spring, one water pump and one rubber seal ring. An idler pulley and bolts are not included.

    What size is the timing belt in the Gates TCKWP143 kit?

    The timing belt in Gates TCKWP143 is 24 mm (0.945 in) wide and has 106 teeth in a Modified Curvilinear (III) tooth type.

    Do instructions come with this engine timing belt kit with water pump?

    Yes. Detailed installation instructions (sheet 0098-1611) and Technical Service Bulletins for troublesome applications come with the kit. No installation tool is included.

    Does the Gates warranty on this kit cover labor?

    Yes. The Gates warranty matches the original manufacturer's timing belt replacement intervals and covers labor and other associated costs, not just parts.
