Timing Belt Kit with Water Pump for 1990-1997 Honda Accord & More - Gates TCKWP186

$202.99

Vehicles this part fits

    Part number: TCKWP186
    UPC: 770075368878
    Condition: New
    Weight: 5.10 LBS
    Item Package Quantity: 1
    $202.99
    Adding to cart… The item has been added

    Have questions?

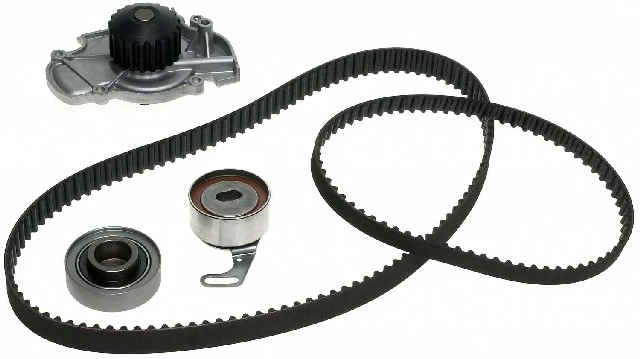

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP186
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP186
    $202.99
    $202.99

    Gates TCKWP186 timing belt kit with water pump for the 1990-1997 Honda Accord 4-cylinder 2.2L and other vehicles replaces the timing belts, tensioners and water pump together. A water pump driven by the timing belt should always be changed at the same time as the belt, so the pump comes in the kit.

    • PowerGrip Premium timing component kit with water pump
    • Two timing belts, two tensioners with two springs, a water pump and a rubber seal ring
    • Belt material is HSN with fiberglass cord, with a Modified Curvilinear (III) tooth type
    • Water pump designed and built for efficient, long-lasting cooling

    Quick facts

    • Part: Gates TCKWP186 timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 1990-1997 Honda Accord 4-cylinder 2.2L and other vehicles
    • Material: HSN, fiberglass cord (belts)
    • Condition: New

    Coolant seeping near the pump, a whine from the pump or an engine that runs hot can mean the pump or belt is wearing out. Seepage alone does not prove the pump is at fault, since a loose hose clamp can leak coolant too.

    Fits

    This kit is a direct-fit replacement for the 1990-1997 Honda Accord 4-cylinder 2.2L, the 1995-1997 Honda Odyssey 4-cylinder 2.2L and the 1996-1997 Isuzu Oasis 4-cylinder 2.2L. Each of them takes one kit. If your car is not one of these, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Timing belts: 2
    • Belt 1: 24 mm (0.945 in) wide, 113 teeth
    • Belt 2: 16 mm (0.63 in) wide, 70 teeth
    • Tensioners: 2, with 2 springs
    • Water pumps: 1
    • Seals: 1

    Build and materials

    • Belt material: HSN, fiberglass cord
    • Tooth type: Modified Curvilinear (III)
    • Tensioner type: spring
    • Grade: OE Exact
    • Condition: New
    • Gates warranty: matches the original manufacturer's timing belt replacement intervals for parts, labor and other associated costs
    • Country of origin: China

    In the box

    Two timing belts, two tensioners, two tensioner springs, one water pump and one rubber seal ring. Bolts, an idler pulley and an installation tool are not included, so plan on new bolts, as the old ones may not be reusable.

    Installation notes

    • Detailed installation instructions come in the kit as instruction sheet 0098-1620.

    Interchange: WPK-0003 · PP186-187LK1 · TB186-187LK1 · 3435-0186
    TKH007 · AWK1222 · WP187K1A · WP187K1AS · GTKWP186 · 20333K · BWPK41042 · WPK41042 · USTK186 · USTK187

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP186, TKH007, WPK-0003, AWK1222, PP186-187LK1, TB186-187LK1, WP187K1A, WP187K1AS, 3435-0186, GTKWP186, 20333K, BWPK41042, WPK41042, USTK186, USTK187

    Frequently Asked Questions

    Is Gates TCKWP186 the right Honda Odyssey timing belt kit with water pump for a 1995-1997 model with the 4-cylinder 2.2L?

    Yes. Gates TCKWP186 fits the 1995-1997 Honda Odyssey 4-cylinder 2.2L, and that vehicle takes one kit.

    What comes in the Gates timing belt and water pump kit?

    Gates TCKWP186 has two belts, two tensioners, two springs, one water pump and a rubber seal ring. It has no idler pulley, no bolts and no installation tool.

    How wide are the two belts in this engine timing belt kit with water pump?

    One belt is 24 mm (0.945 in) wide with 113 teeth, and the other is 16 mm (0.63 in) wide with 70 teeth.

    Why does this kit include a water pump along with the timing belts?

    A water pump driven by the timing belt should always be replaced when the belt is, so Gates TCKWP186 puts the belts, tensioners and pump in one box.

    What does the Gates warranty on this timing belt kit cover?

    The Gates warranty matches the original manufacturer's timing belt replacement intervals and covers labor and other associated costs, not just parts.
