Timing Belt Kit with Water Pump for 2004-2008 Suzuki Forenza & More - Gates TCKWP309

$283.99

Vehicles this part fits

    Part number: TCKWP309
    UPC: 770075472605
    Condition: New
    Weight: 4.00 LBS
    Item Package Quantity: 1
    $283.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP309
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP309
    $283.99
    $283.99

    Gates TCKWP309 timing belt kit with water pump for the 2004-2008 Suzuki Forenza 4-cylinder 2.0L and other vehicles replaces the belt, tensioner, idlers and water pump together. Because the water pump runs off the timing belt, it should be replaced at the same time as the belt.

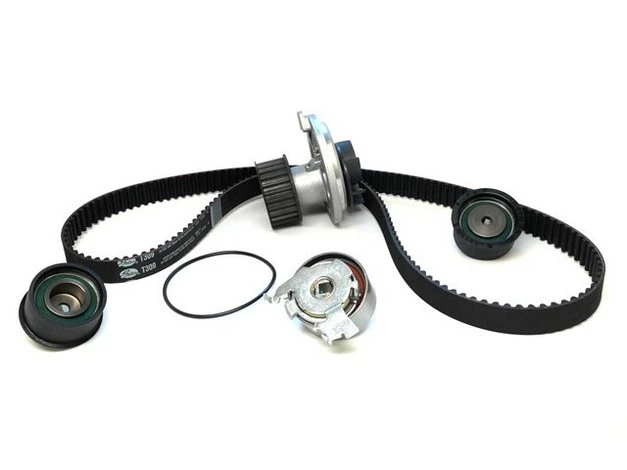

    • One kit with a timing belt, spring tensioner, two idlers, water pump and O-ring
    • Water pump designed and built for long-lasting, efficient cooling
    • Timing belt of HSN with fiberglass cord, 169 curvilinear (II) teeth, 24 mm wide
    • Part of the Gates PowerGrip timing component kit line

    Quick facts

    • Part: Gates TCKWP309 timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 2004-2008 Suzuki Forenza 4-cylinder 2.0L and other vehicles
    • Material: HSN, fiberglass cord (belt)
    • Condition: New

    Coolant seeping at the water pump, a whine from the front of the engine or a belt with cracked or frayed teeth can mean the kit is due. A leaking hose, a loose accessory belt or a failing thermostat can be behind coolant loss or noise too, so find the cause before buying.

    Fits

    This timing belt kit with water pump fits the 2005-2008 Suzuki Reno 4-cylinder 2.0L and the 2004-2007 Chevrolet Optra 4-cylinder 2.0L, and each takes one kit. If your car is not named here, look it up in the "Vehicles it fits" section of this page.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Timing belt width: 24 mm (0.945 in)
    • Timing belt teeth: 169
    • Tooth type: Curvilinear (II)
    • Idlers: 2

    Build and materials

    • Contents: belt, tensioner, 2 idlers, water pump, O-ring
    • Belt material: HSN, fiberglass cord
    • Tensioner type: Spring
    • Grade: OE Performance
    • Condition: New
    • Gates warranty: matches the original manufacturer's timing belt replacement intervals, for parts, labor and other associated costs
    • Country of origin: Mexico

    In the box

    One timing belt, one spring tensioner, two idlers, one water pump and one O-ring. Bolts, springs and an installation tool are not included, so plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Instruction sheet 0098-1710 comes with the kit for the steps.
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: 3460-0309
    PP309LK1 · TB309LK1 · WP309K1A · WP309K1B · GTKWP309 · 24475K · BWPK42408A · WPK42408A · VKMA05222SWP

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP309, PP309LK1, TB309LK1, WP309K1A, WP309K1B, 3460-0309, GTKWP309, 24475K, BWPK42408A, WPK42408A, VKMA05222SWP

    Frequently Asked Questions

    Is this Gates timing belt and water pump kit right for the 2004-2008 Suzuki Forenza 4-cylinder 2.0L?

    Yes. Gates TCKWP309 fits the 2004-2008 Suzuki Forenza 4-cylinder 2.0L, which takes one kit. For another model, use the "Vehicles it fits" section to find your own car.

    What parts come in this engine timing belt kit with water pump besides the belt?

    The kit adds a spring tensioner, two idlers, a water pump and an O-ring to the timing belt. Bolts, springs and an installation tool are not included.

    How wide is the timing belt in this kit and how many teeth does it have?

    The Gates TCKWP309 belt is 24 mm (0.945 in) wide with 169 curvilinear (II) teeth. It is made of HSN with fiberglass cord.

    What can coolant seepage near a belt-driven water pump mean?

    Coolant seepage or a whine from the front of the engine can come from a worn water pump. Have a shop inspect it promptly instead of driving on it.

    Does the Gates TCKWP309 kit include installation instructions?

    Yes. Instruction sheet 0098-1710 is included, along with Technical Service Bulletins for troublesome applications.
