Timing Belt Kit with Water Pump for 2006-2011 Subaru Outback & More - Gates TCKWP304AN

$373.99

Vehicles this part fits

    Part number: TCKWP304AN
    UPC: 770075707554
    Condition: New
    Weight: 9.50 LBS
    Item Package Quantity: 1
    $373.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP304AN
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP304AN
    $373.99
    $373.99

    Gates TCKWP304AN timing belt kit with water pump for the 2006-2011 Subaru Outback H4 2.5L and other vehicles replaces the timing belt, tensioner, idlers and water pump together. Water pumps driven by the timing belt should be replaced along with the belt, and this kit puts the parts for both jobs in one box.

    • PowerGrip timing component kit with water pump
    • Water pump designed and built for efficient, long-lasting cooling
    • Hydraulic tensioner included
    • Timing belt made of HSN with fiberglass cord and a modified curvilinear (III) tooth profile
    • Three idler pulleys in the kit

    Quick facts

    • Part: Gates TCKWP304AN timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 2006-2011 Subaru Outback H4 2.5L and other vehicles
    • Material: HSN, fiberglass cord
    • Condition: New

    A coolant leak at the water pump, a whining or grinding noise from the pump, or cracks and fraying on the belt can mean it is time for this kit. A leak alone does not prove the pump is at fault, since a loose hose clamp can leak too.

    Fits

    This kit fits the 2006-2011 Subaru Outback H4 2.5L, the 2006-2010 Subaru Forester H4 2.5L and the 2006-2011 Subaru Impreza H4 2.5L. This listing is one kit, and a 2006-2010 Subaru Forester H4 2.5L takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Belt width: 27 mm (1.063 in)
    • Belt teeth: 223
    • Idler pulleys: 3

    Build and materials

    • Tensioner type: hydraulic
    • Tooth type: Modified Curvilinear (III)
    • Belt material: HSN, fiberglass cord
    • Grade: OE Exact
    • Condition: New
    • Gates warranty: matches the original manufacturer's timing belt replacement intervals, covering parts, labor and other associated costs
    • Country of origin: Japan

    In the box

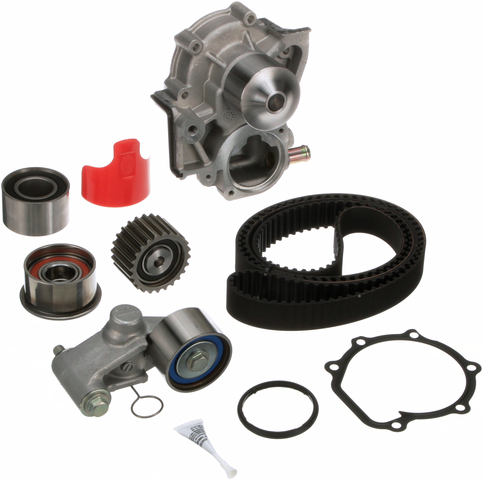

    One timing belt, one OE Improved hydraulic tensioner, three idlers, one water pump, an installation tool, Loctite, a metal gasket and an O-ring. Bolts and springs are not included, so plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Detailed installation instructions come with the kit (instruction sheet 0098-1654).
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: 24537KN

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    24537KN

    Frequently Asked Questions

    Does this Gates timing belt kit fit a 2006-2010 Subaru Forester H4 2.5L?

    Yes. Gates TCKWP304AN fits the 2006-2010 Subaru Forester H4 2.5L, and that car takes one kit.

    Does this Gates timing belt and water pump kit include the tensioner and idlers?

    Yes. Gates TCKWP304AN has the belt, an OE Improved hydraulic tensioner, three idlers and the water pump, plus an installation tool, Loctite, a metal gasket and an O-ring.

    Do I need to buy bolts separately for this engine timing belt kit with water pump?

    Yes. The kit does not include bolts or springs, so plan on new bolts, since the old ones may not be reusable.

    How wide is the belt in the Gates TCKWP304AN kit, and how many teeth does it have?

    The belt is 27 mm (1.063 in) wide with 223 teeth and a modified curvilinear (III) tooth profile. It is made of HSN with fiberglass cord.

    Do installation instructions come with this timing belt kit?

    Yes. Detailed installation instructions (sheet 0098-1654) and Technical Service Bulletins for troublesome applications come with the kit.
