Timing Belt Kit with Water Pump for 2002-2005 Subaru Forester - Gates TCKWP304C

$396.99

Vehicles this part fits

    Part number: TCKWP304C
    UPC: 770075453734
    Condition: New
    Weight: 8.80 LBS
    Item Package Quantity: 1
    $396.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP304C
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP304C
    $396.99
    $396.99

    Gates TCKWP304C timing belt kit with water pump for the 2002-2005 Subaru Forester H4 2.5L replaces the timing belt and water pump together. The pump is driven by the belt, so it is changed at the same time as the belt, and this Gates timing belt and water pump kit supplies both.

    • Part of the Gates PowerGrip timing component kit line
    • 27 mm wide, 223-tooth belt in HSN with fiberglass cord and a Modified Curvilinear (III) tooth type
    • Water pump designed and built for long-lasting, efficient cooling

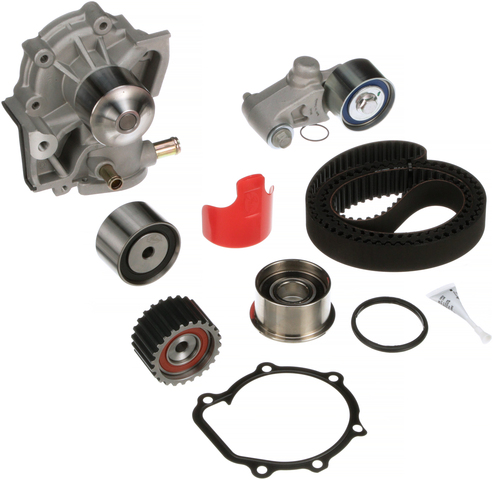

    • One belt, one hydraulic tensioner, three idlers and one water pump in a single kit

    Quick facts

    • Part: Gates TCKWP304C timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 2002-2005 Subaru Forester H4 2.5L
    • Material: HSN belt with fiberglass cord
    • Condition: New

    Coolant seepage near the pump, noise from the belt area or an engine that runs hot can mean the belt, pump or tensioner is worn, though a leaking hose or a faulty thermostat can be behind those signs too, so find the cause before replacing anything.

    Fits

    It is a direct-fit replacement for the 2002-2005 Subaru Forester H4 2.5L, which takes one kit.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Belt width: 27 mm (1.063 in)
    • Belt teeth: 223
    • Idlers: 3
    • Number of components: 6

    Build and materials

    • Condition: New
    • Tensioner type: Hydraulic
    • Belt material: HSN, fiberglass cord
    • Tooth type: Modified Curvilinear (III)
    • Grade type: OE Improved
    • Timing marks: Yes
    • Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals, covering parts, labor and other associated costs
    • Country of origin: China

    In the box

    One installation tool, Loctite, one metal gasket and one O-ring come with the belt, tensioner, idlers and water pump. Bolts and tensioner springs are not included, so plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Instruction sheet 0098-1654 comes with the kit and gives the steps.
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: WPK-0078 · 3460-3304
    AWK1337 · PP304LK4 · TB304LK2 · WP304K1B · WP304K1BS · GTKWP304C · 24469K · BWPK43527 · WPK43527

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP304C, WPK-0078, AWK1337, PP304LK4, TB304LK2, WP304K1B, WP304K1BS, 3460-3304, GTKWP304C, 24469K, BWPK43527, WPK43527

    Frequently Asked Questions

    Is the Gates TCKWP304C kit right for the 2002-2005 Subaru Forester H4 2.5L?

    Yes. Gates TCKWP304C is a direct-fit kit for the 2002-2005 Subaru Forester H4 2.5L, and that vehicle takes one kit.

    Does this engine timing belt kit with water pump include bolts?

    No. Gates TCKWP304C leaves out bolts and tensioner springs. It has the belt, hydraulic tensioner, three idlers, water pump, installation tool, Loctite, metal gasket and O-ring.

    What kind of belt comes in this timing belt kit?

    The belt is 27 mm wide with 223 teeth and a Modified Curvilinear (III) tooth type. It is made of HSN with fiberglass cord, and the tensioner in the kit is hydraulic.

    How can I tell the water pump in a timing belt kit is wearing out?

    Coolant seepage around the pump, noise from the belt area or a temperature gauge that climbs can be signs. A shop can test the cooling system to confirm.

    Does the TCKWP304C kit come with installation instructions and a tool?

    Yes. Instruction sheet 0098-1654 and Technical Service Bulletins come with Gates TCKWP304C, and an installation tool is included.
