Timing Belt Kit with Water Pump for 2001-2005 Volkswagen Passat & More - Gates TCKWP306A

$317.99

Vehicles this part fits

    Part number: TCKWP306A
    UPC: 770075369264
    Condition: New
    Weight: 5.70 LBS
    Item Package Quantity: 1
    $317.99
    Adding to cart… The item has been added

    Have questions?

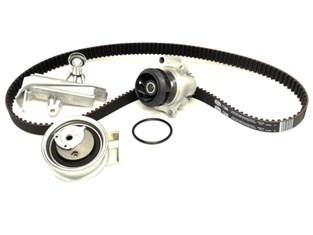

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP306A
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP306A
    $317.99
    $317.99

    Gates TCKWP306A timing belt kit with water pump for the 2001-2005 Volkswagen Passat 4-cylinder 1.8L, the 2002 Passat W8 4.0L and other vehicles replaces the timing belt, hydraulic tensioner and water pump in a single repair. Because the water pump is driven by the timing belt, the two are changed at the same time.

    • PowerGrip Premium timing component kit with water pump
    • Timing belt with a fiberglass cord and curvilinear (II) teeth
    • Hydraulic tensioner with the pulley attached
    • Water pump with plastic impeller, designed and built for long-lasting, efficient cooling

    Quick facts

    • Part: Gates TCKWP306A timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: the 2001-2005 Volkswagen Passat 4-cylinder 1.8L, the 2002 Passat W8 4.0L and other vehicles
    • Material: HSN, fiberglass cord (belt)
    • Condition: New

    A frayed or cracked belt, or coolant seepage at the water pump, can mean the kit is due. Before you replace it, rule out other sources of coolant loss or overheating, such as a leaking hose or radiator, because those can look the same. The 2001-2005 Volkswagen Passat 4-cylinder 1.8L takes one kit.

    Fits

    It is also a timing belt kit with water pump for the 1999-2006 Audi A4 4-cylinder 1.8L and fits the 1999-2005 Audi A4 Quattro 4-cylinder 1.8L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Timing belt width: 23 mm (0.906 in)
    • Timing belt teeth: 150
    • Water pump quantity: 1

    Build and materials

    • Tensioner type: Hydraulic
    • Tooth type: Curvilinear (II)
    • Belt material: HSN, fiberglass cord
    • Water pump impeller: plastic
    • Grade type: OE Performance
    • Condition: New
    • Country of origin: Mexico
    • Gates warranty: matches the original manufacturer's timing belt replacement intervals, for parts, labor and other associated costs

    In the box

    One timing belt, a tensioner, a hydraulic tensioner with the pulley attached, a water pump with plastic impeller and one O-ring. Idler pulleys, tensioner springs, bolts and an installation tool are not included; plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Detailed installation instructions come with the kit (instruction sheet 0098-1645).
    • Technical service bulletins for troublesome applications are included.

    Interchange: WPK-0065 · 3480-0296 · VKMC01918-1
    AWK1324 · CK306LK2 · GTKWP306C · PP306LK4 · PP306LK2 · TB306LK2 · WP306K1A · WP306K1AS · GTKWP306A · 20356K · BWPK41127B · WPK41127B · VKMA01918SHWP1 · USTK306A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP306A, WPK-0065, AWK1324, CK306LK2, GTKWP306C, PP306LK4, PP306LK2, TB306LK2, WP306K1A, WP306K1AS, 3480-0296, GTKWP306A, 20356K, BWPK41127B, WPK41127B, VKMA01918SHWP1, VKMC01918-1, USTK306A

    Frequently Asked Questions

    Does Gates TCKWP306A fit the 2002 Volkswagen Passat W8 4.0L?

    Yes. Gates TCKWP306A fits the 2002 Passat W8 4.0L and the 2001-2005 Volkswagen Passat 4-cylinder 1.8L, one kit per vehicle.

    Is the tensioner in the Gates timing belt and water pump kit hydraulic?

    Yes. Gates TCKWP306A includes a hydraulic tensioner with the pulley attached, and the kit has no idler pulley.

    What is in this engine timing belt kit with water pump?

    This kit has a timing belt, tensioners, a water pump with plastic impeller and an O-ring. Idler pulleys, tensioner springs, bolts and an installation tool are not included.

    How wide is the timing belt in this kit, and how many teeth does it have?

    The belt is 23 mm (0.906 in) wide with 150 curvilinear (II) teeth.

    Does this timing belt kit with water pump come with installation instructions?

    Yes. Gates TCKWP306A comes with detailed installation instructions (sheet 0098-1645) and technical service bulletins for troublesome applications.
