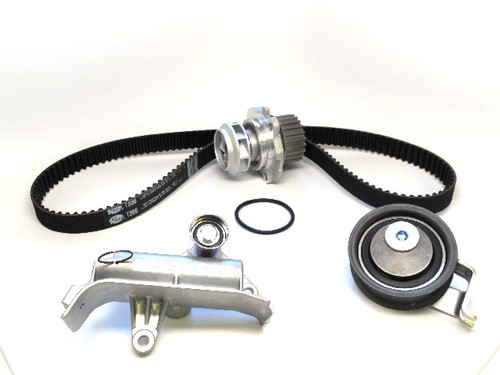

Gates TCKWP306AM timing belt kit with water pump for the 2001-2005 Volkswagen Passat 4-cylinder 1.8L, the 2002 Passat W8 4.0L and other vehicles replaces the timing belt, tensioners and water pump in one job. A water pump driven by the timing belt should be replaced at the same time as the belt, and this Gates timing belt and water pump kit covers both.
- PowerGrip timing component kit with belt, tensioners and water pump in one box
- HSN timing belt with fiberglass cord, 150 curvilinear (II) teeth and a 23 mm width
- Two tensioners, including a hydraulic tensioner with the pulley attached
- Water pump with a metal impeller, designed and built for efficient cooling
Quick facts
- Part: Gates TCKWP306AM timing belt kit with water pump
- Also called: engine timing belt kit with water pump
- Fits: 2001-2005 Volkswagen Passat 4-cylinder 1.8L, the 2002 Passat W8 4.0L and other vehicles
- Material: HSN, fiberglass cord (belt)
- Condition: New
Coolant seeping from the water pump, an engine that runs hot or a belt with cracks can mean this kit is due. A failing thermostat or a leaking radiator hose can also cause an engine to run hot, so rule those out first.
Fits
It also works as a timing belt kit with water pump for the 1999-2006 Audi A4 4-cylinder 1.8L and the 1999-2005 Audi A4 Quattro 4-cylinder 1.8L. The 1999-2006 Audi A4 4-cylinder 1.8L takes one kit.
Specifications
Fit and size
- Quantity per vehicle: 1
- Belt width: 23 mm (0.906 in)
- Belt teeth: 150
- Tooth type: Curvilinear (II)
- Tensioners: 2
- Water pump: 1
Build and materials
- Tensioner type: Hydraulic
- Belt material: HSN, fiberglass cord
- Water pump impeller: metal
- Grade: OE Performance
- Condition: New
- Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals, for parts, labor and other associated costs
- Country of origin: China
In the box
One timing belt, one tensioner, one hydraulic tensioner with the pulley attached, one water pump with metal impeller and one O-ring. Bolts, springs, an idler pulley and an installation tool are not included; plan on new bolts, since the old ones may not be reusable.
Installation notes
- Detailed installation instructions come with the kit (sheet 0098-1645).
- Technical Service Bulletins for troublesome applications are included.
Interchange: 3480-6306
PP306LK4MI · PP306LK2MI · TB306LK2MI · WP306K1AM · WP306K1AMS · 24442KM · BWPK41127EM · WPK41127EM
This part cross-references / interchanges with the following part numbers:
TCKWP306AM, PP306LK4MI, PP306LK2MI, TB306LK2MI, WP306K1AM, WP306K1AMS, 3480-6306, 24442KM, BWPK41127EM, WPK41127EM
Frequently Asked Questions
Is the Gates TCKWP306AM kit right for the 2002 Volkswagen Passat W8 4.0L?
Yes, Gates TCKWP306AM fits the 2002 Volkswagen Passat W8 4.0L. It also fits the 2001-2005 Volkswagen Passat 4-cylinder 1.8L.
Does this kit come with bolts or tensioner springs?
No. Bolts and springs are not included, so plan on new bolts. The kit has one belt, two tensioners, one water pump with metal impeller and an O-ring.
How wide is the timing belt in this kit, and how many teeth does it have?
The Gates TCKWP306AM belt is 23 mm (0.906 in) wide with 150 curvilinear (II) teeth. It is made of HSN with fiberglass cord.
Why does an engine timing belt kit with water pump include the pump?
Because the pump is driven by the timing belt, the two should be changed together. This kit supplies the belt, tensioners and water pump so one repair covers all three.
What instructions come with the Gates TCKWP306AM?
The kit includes detailed installation instructions (sheet 0098-1645) and Technical Service Bulletins for troublesome applications. It also includes a hydraulic tensioner with the pulley attached.
