Timing Belt Kit with Water Pump for 2005-2009 Subaru Outback & More - Gates TCKWP328

$448.99

Vehicles this part fits

    Part number: TCKWP328
    UPC: 770075407447
    Condition: New
    Weight: 9.40 LBS
    Item Package Quantity: 1
    $448.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328
    $448.99
    $448.99

    Gates TCKWP328 timing belt kit with water pump for the 2005-2009 Subaru Outback H4 2.5L and other vehicles replaces the timing belt, tensioner, idlers and water pump together. The belt drives the water pump, so the pump should be replaced at the same time as the belt.

    • PowerGrip Premium Timing Component Kit with Water Pump (TCKWP) product line from Gates
    • Timing belt of HSN with fiberglass cord and Modified Curvilinear (III) teeth
    • Hydraulic tensioner and four idler pulleys supplied with the belt
    • Belt-driven water pump designed and built for efficient cooling

    Quick facts

    • Part: Gates TCKWP328 timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: the 2005-2009 Subaru Outback H4 2.5L and other vehicles
    • Material: HSN belt with fiberglass cord
    • Condition: New

    A leaking hose, a weak thermostat or a faulty radiator cap can be behind coolant loss or overheating, so find the actual cause before buying this kit. A failing water pump can also show as a coolant leak or a whine, and a worn belt can show cracks or fraying when looked at with the engine off and cool. The engine takes one kit.

    Fits

    The vehicles it fits include the 2005-2009 Subaru Outback H4 2.5L, the 2004-2007 Subaru Forester H4 2.5L and the 2005-2009 Subaru Legacy H4 2.5L. It is a direct-fit replacement for these vehicles.

    Specifications

    Fit and size

    • Quantity per vehicle: 1 kit
    • Timing belt width: 29 mm (1.142 in)
    • Timing belt teeth: 281
    • Idler pulleys: 4

    Build and materials

    • Belt material: HSN, fiberglass cord
    • Tooth type: Modified Curvilinear (III)
    • Tensioner type: hydraulic
    • Grade: OE Improved
    • Condition: New
    • Gates warranty: matches the original manufacturer's timing belt replacement intervals and covers labor and other associated costs as well as parts
    • Country of origin: China

    In the box

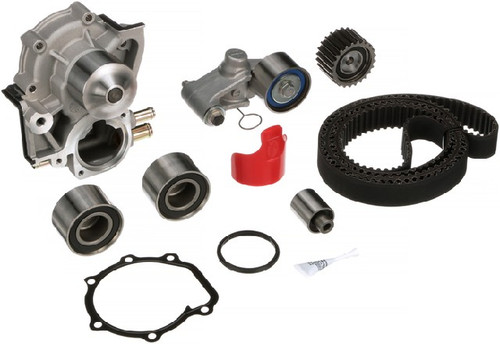

    One timing belt, one hydraulic tensioner, four idlers, one water pump, an installation tool, Loctite, two gaskets and one O-ring. Bolts and tensioner springs are not included.

    Installation notes

    • Instruction sheet 0098-1668 comes with the kit and gives the detailed steps, along with Technical Service Bulletins for troublesome applications.
    • Bolts are not included and the old ones may not be reusable, so plan on new bolts.

    Interchange: WPK-0057 · 3460-0328
    TKF004 · AWK1316 · PP328LK4 · PP328LK6 · TB328LK4 · TB328LK1 · WP328K1A · GTKWP328 · 20412K · BWPK43548 · WPK43548 · TBK328WP · USTK328

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP328, TKF004, WPK-0057, AWK1316, PP328LK4, PP328LK6, TB328LK4, TB328LK1, WP328K1A, 3460-0328, GTKWP328, 20412K, BWPK43548, WPK43548, TBK328WP, USTK328

    Frequently Asked Questions

    Is this the right Subaru Legacy timing belt kit with water pump for a 2005-2009 Legacy H4 2.5L?

    Yes, Gates TCKWP328 fits the 2005-2009 Subaru Legacy H4 2.5L, one kit per engine. If your car is a different Subaru or a Saab, look it up in the "Vehicles it fits" section on this page.

    Does this engine timing belt kit with water pump include bolts?

    No. Gates TCKWP328 leaves out bolts and tensioner springs; it includes the belt, hydraulic tensioner, four idlers, water pump, installation tool, Loctite, two gaskets and an O-ring.

    Is the tensioner in this timing belt kit with water pump hydraulic?

    Yes. This kit's single tensioner is a hydraulic unit, and it comes with four idler pulleys.

    What are signs the water pump in this kit may be wearing out?

    A coolant leak at the pump, a whine or grinding noise from the front of the engine, or overheating can point to a worn pump. Look for leaks or a cracked, frayed belt with the engine off and cool; a shop can test the rest.

    Does the Gates timing belt and water pump kit carry a warranty that covers labor?

    Yes. The Gates warranty matches the original manufacturer's timing belt replacement intervals and covers labor and other associated costs, not just the parts.
