Timing Belt Kit with Water Pump for 2002-2003 Subaru Impreza - Gates TCKWP328A

$507.99

Vehicles this part fits

    Part number: TCKWP328A
    UPC: 770075407454
    Condition: New
    Weight: 9.30 LBS
    Item Package Quantity: 1
    $507.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328A
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328A
    $507.99
    $507.99

    Gates TCKWP328A timing belt kit with water pump for the 2002-2003 Subaru Impreza H4 2.0L replaces the belt, tensioner, idlers and pump together. This Gates timing belt and water pump kit adds the belt-driven pump, which should be replaced along with the belt.

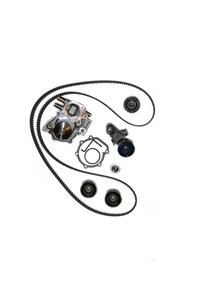

    • PowerGrip Premium timing component kit with water pump
    • Seven components, including a hydraulic tensioner, four idlers and the water pump
    • HSN belt with fiberglass cord and a modified curvilinear (III) tooth type
    • Water pump designed and built for efficient cooling

    Quick facts

    • Part: Gates TCKWP328A timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 2002-2003 Subaru Impreza H4 2.0L
    • Material: HSN, fiberglass cord (belt)
    • Condition: New

    Coolant seepage around the water pump, a whine from the pump area, or a belt that looks cracked or frayed with the timing cover off can mean the kit is due. Before replacing it, look around the pump for coolant residue with the engine off and cool, since a hose or radiator leak can leave similar marks.

    Fits

    This engine timing belt kit with water pump fits the 2002-2003 Subaru Impreza H4 2.0L, and each engine takes one kit.

    Specifications

    Fit and size

    • Quantity per vehicle: 1 kit
    • Timing belt width: 29 mm (1.142 in)
    • Timing belt teeth: 281

    Build and materials

    • Grade: OE Improved
    • Belt material: HSN, fiberglass cord
    • Timing marks: Yes
    • Condition: New
    • Gates warranty: matches the original manufacturer's timing belt replacement intervals, covering parts, labor and other associated costs
    • Country of origin: China

    In the box

    The belt, hydraulic tensioner, four idlers and water pump, plus a gasket, a metal gasket and Loctite. Bolts and springs are not included, so plan on new bolts rather than reusing the old ones.

    Installation notes

    • An installation tool comes in the kit.
    • Detailed installation instructions (sheet 0098-1658) and Technical Service Bulletins for troublesome applications are included.

    Interchange: 3460-1328
    TB328LK5 · TB328LK2 · WP328K1AS · GTKWP328A · 20413K · BWPK43513 · WPK43513 · USTK328A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP328A, TB328LK5, TB328LK2, WP328K1AS, 3460-1328, GTKWP328A, 20413K, BWPK43513, WPK43513, USTK328A

    Frequently Asked Questions

    Is the Gates TCKWP328A kit the right one for the 2002-2003 Subaru Impreza H4 2.0L?

    Yes. Gates TCKWP328A fits the 2002-2003 Subaru Impreza H4 2.0L, and each engine takes one kit.

    Do the bolts and springs come with the Gates TCKWP328A kit?

    No, bolts and springs are not included, so plan on new bolts; the kit does include an installation tool, a gasket, a metal gasket and Loctite.

    What belt material and tooth type does this timing belt kit have?

    The belt is HSN with fiberglass cord. It is 29 mm wide with 281 teeth and a modified curvilinear (III) tooth type.

    What are signs the water pump in this kit may be wearing out?

    Coolant seepage around the pump or a whine from the pump area can be signs of wear. A shop can test the cooling system to confirm.

    Does Gates TCKWP328A replace the WP328K1AS kit number?

    Yes. WP328K1AS is on the interchange list for Gates TCKWP328A, along with several other cross-reference numbers.
