Timing Belt Kit with Water Pump for 2006-2008 Volkswagen Jetta & More - Gates TCKWP334

$326.99

Vehicles this part fits

    Part number: TCKWP334
    UPC: 770075572145
    Condition: New
    Weight: 3.69 LBS
    Item Package Quantity: 1
    $326.99
    Adding to cart… The item has been added

    Have questions?

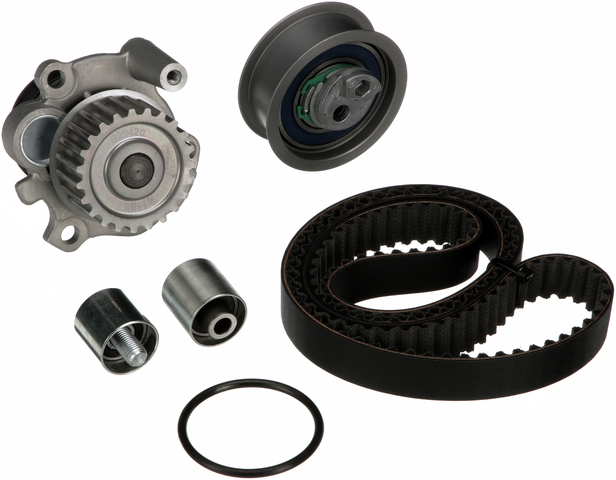

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP334
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP334
    $326.99
    $326.99

    Gates TCKWP334 timing belt kit with water pump for the 2006-2008 Volkswagen Jetta 4-cylinder 2.0L and other vehicles replaces the timing belt and the water pump in one job. Sold as an engine timing belt kit with water pump, it adds the tensioner and idlers, because a belt-driven pump is replaced at the same time as the belt.

    • PowerGrip Premium timing component kit with water pump
    • HSN belt with fiberglass cord and curvilinear (II) teeth
    • Spring-type tensioner with two idlers
    • Water pump with a plastic impeller, designed for efficient cooling
    • Bolt and O-ring supplied with the kit

    Quick facts

    • Part: Gates TCKWP334 timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: the 2006-2008 Volkswagen Jetta 4-cylinder 2.0L and other vehicles
    • Material: Belt, HSN with fiberglass cord
    • Condition: New

    Coolant seepage near the pump, noise from the front of the engine, or a cracked or frayed belt can mean the kit is due. With the engine off and cool, look over the belt and pump area where you can see it, and find the cause before buying parts, since a leak or noise can have other sources. Each engine takes one kit, with one belt and one pump.

    Fits

    The vehicles it fits include the 2006-2008 Volkswagen Passat 4-cylinder 2.0L and the 2005-2009 Audi A4 4-cylinder 2.0L, along with other Volkswagen and Audi models.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Components in kit: 5
    • Belt width: 23 mm (0.906 in)
    • Belt teeth: 148
    • Idlers: 2

    Build and materials

    • Belt material: HSN, fiberglass cord
    • Tooth type: Curvilinear (II)
    • Tensioner type: Spring
    • Water pump impeller: plastic
    • Condition: New
    • Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals for parts, labor and other associated costs
    • Country of origin: Mexico

    In the box

    One timing belt, one spring tensioner, two idlers, one water pump with plastic impeller, one bolt and one O-ring, plus installation instructions. An installation tool is not included.

    Installation notes

    • Detailed installation instructions, sheet 0098-1721, come with the kit.
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: 3480-1334
    CK334LK1 · PP334LK1 · TB334LK1 · WP334K1A · WP334K1AS · GTKWP334 · 24503K · BWPK41190 · WPK41190

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP334, CK334LK1, PP334LK1, TB334LK1, WP334K1A, WP334K1AS, 3480-1334, GTKWP334, 24503K, BWPK41190, WPK41190

    Frequently Asked Questions

    Is Gates TCKWP334 the Audi A4 timing belt kit with water pump for 2005-2009 cars with the 4-cylinder 2.0L?

    Yes. Gates TCKWP334 fits the 2005-2009 Audi A4 4-cylinder 2.0L and the 2006-2008 Volkswagen Passat 4-cylinder 2.0L. For another car, look up your year and engine in the "Vehicles it fits" section.

    Does the Gates timing belt and water pump kit include a tensioner and idlers?

    Yes. The kit has one belt, one tensioner, two idlers, a water pump, one bolt and an O-ring, plus instructions. An installation tool is not included.

    How wide is the belt in Gates TCKWP334 and how many teeth does it have?

    The belt is 23 mm (0.906 in) wide with 148 curvilinear (II) teeth. It is made of HSN with fiberglass cord.

    What signs can a worn timing belt or water pump show?

    With the engine off and cool, coolant seepage at the pump, a whining or grinding noise from the front of the engine, or a cracked or frayed belt can mean the parts are due. A shop can test the rest.

    Does Gates TCKWP334 come with installation instructions?

    Yes. Detailed instructions, sheet 0098-1721, come in the box with Technical Service Bulletins for troublesome applications.
