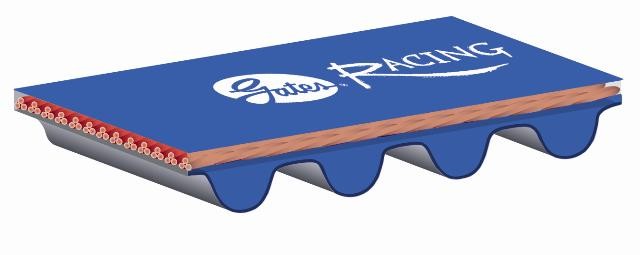

Gates T328RB timing belt for the 2002-2005 Subaru Impreza H4 2.0L, the 2004-2014 Impreza H4 2.5L and other vehicles keeps the camshafts turning in time with the crankshaft. This Gates timing belt is a high performance belt made to withstand the rigors of higher horsepower engines.
- Part of the Gates RPM high performance timing belt line
- Specially formulated belt compound for heat resistance
- Gripping teeth reinforced with an aramid and nylon cover to minimize wear
- Fiberglass cord with a modified curvilinear (III) profile and 281 teeth
- Construction that reduces the chance of engine damage, particularly on interference engines
Quick facts
- Part: Gates T328RB timing belt
- Also called: engine timing belt
- Fits: the 2002-2005 Subaru Impreza H4 2.0L, the 2004-2014 Impreza H4 2.5L and other vehicles
- Material: HSN belt material, fiberglass cord
- Condition: New
Cracks, frayed edges or missing teeth on an engine timing belt, or oil on the belt, can mean it needs replacing, and a shop can inspect it. A tensioner, an idler pulley or a leaking cam seal can be behind some of these signs too, so track down the cause before you buy a new belt.
Fits
For the 2004-2013 Subaru Forester H4 2.5L and the 2005-2009 Subaru Outback H4 2.5L, this timing belt installs and fits like the OE version, and it fits many other vehicles as well; the quantity is one belt per vehicle. If your car is not one of these, find your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Teeth: 281
- Pitch: 8 mm (0.315 in)
- Top width: 30 mm (1.18 in)
- Pitch length: 2248 mm (88.5 in)
Build and materials
- Type: high performance timing belt
- Belt material: HSN
- Cord material: Fiberglass
- Profile: Modified Curvilinear (III)
- Timing marks: Yes
- Condition: New
- Country of origin: United States
In the box
One timing belt.
Interchange: TB328 · T328 · B328 · CD328 · 95328 · 95328FN · 40328 · 250328 · HXB328 · 32005536 · OHC328 · 13028AA200 · 13028AA240 · 13028AA250
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TB328, T328, T328RB, B328, CD328, 95328, 95328FN, 40328, 250328, HXB328, 32005536, OHC328, 13028AA200, 13028AA240, 13028AA250
Frequently Asked Questions
Is the Gates T328RB the right Subaru Impreza timing belt for a 2004-2014 Impreza H4 2.5L?
Yes. Gates T328RB fits the 2004-2014 Subaru Impreza H4 2.5L and the 2002-2005 Impreza H4 2.0L, and each takes one belt.
Does this Subaru Outback timing belt fit a 2005-2009 Outback H4 2.5L?
Yes. It fits the 2005-2009 Subaru Outback H4 2.5L, one belt per engine. For another year or engine, look in the "Vehicles it fits" section.
What are the tooth count and width of the Gates T328RB?
The Gates T328RB has 281 teeth at an 8 mm pitch, is 30 mm wide and has a pitch length of 2248 mm.
What cord and belt material does this timing belt use?
The belt material is HSN with a fiberglass cord. The gripping teeth are reinforced with an aramid and nylon cover to minimize wear.
Does Gates T328RB cross-reference to 13028AA200?
Yes. 13028AA200 is one of the numbers this belt replaces, along with TB328 and 95328.
