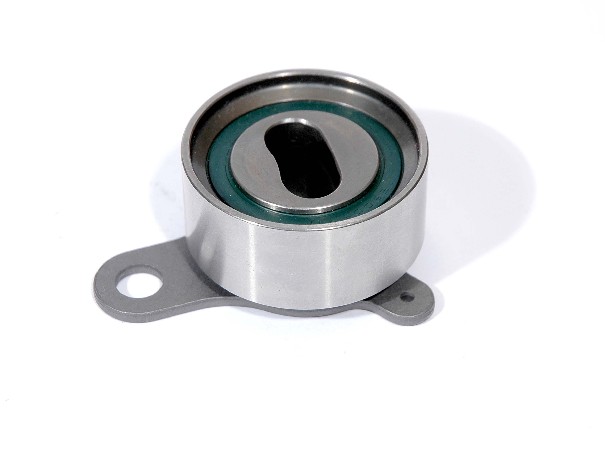

Gates Engine Timing Belt Tensioner Hydraulic Assembly,Engine Timing Belt Tensioner P/N:T43169
Gates T41066 timing belt tensioner for the 1983-1992 Toyota Corolla 4-cylinder 1.6L and other vehicles uses a spring to keep the timing belt under tension. This Gates timing belt tensioner is built with OE-quality or OE-exact fit and performance, and its bearings meet or exceed OE standards.
A worn tensioner can show up as a rattle or chirp from the front of the engine, a pulley that wobbles or feels rough when turned by hand during a belt service, or uneven wear on the belt. Before replacing it, look over the old belt with the engine off for fraying or oil contamination, since those can have causes other than the tensioner.
This spring-type timing belt tensioner fits the 1983-1992 Toyota Corolla 4-cylinder 1.6L, the 1990-1993 Toyota Celica 4-cylinder 1.6L and the 1989-1992 Geo Prizm 4-cylinder 1.6L. The Prizm takes one.
Fit and size
Build and materials
One timing belt tensioner.
Interchange: 024-1087 · 9-5066 · 470-8010 · 222-66BT
84002 · 85066 · 9066 · FS60191 · GT80010 · 94847323 · VKM71202 · 1350501010 · 1350515031 · 1350515040 · 1350515041
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Gates T41066 work as a Toyota Corolla timing belt tensioner on the 1983-1992 Corolla 4-cylinder 1.6L?
Yes, the Gates T41066 fits the 1983-1992 Toyota Corolla 4-cylinder 1.6L and the 1990-1993 Toyota Celica 4-cylinder 1.6L. For any other car, look it up in the "Vehicles it fits" section on this page.
Is anything besides the tensioner in the Gates T41066 package?
No. The package contains one tensioner, so a timing belt and other parts are not part of this listing.
How large is the pulley on the Gates T41066 engine timing belt tensioner?
The single smooth, backside-contact pulley on the Gates T41066 is 52 mm in outside diameter and 23 mm wide, with no flange. The tensioner is spring type.
How does this spring-type tensioner resist contamination?
Its metal components resist contamination with a composite sealant, and the Gates T41066 bearings meet or exceed OE standards.
Does the Gates T41066 replace part number 1350515040?
Yes. 1350515040 is one of the numbers on the Interchange line that the Gates T41066 replaces.
