Heater Hose for 2006-2010 Mazda 5 - Gates 12129

$18.99

Vehicles this part fits

    Part number: 12129
    UPC: 770075681649
    Condition: New
    Weight: 0.19 LBS
    Item Package Quantity: 1
    $18.99
    Adding to cart… The item has been added

    Have questions?

    Gates HVAC Heater Hose P/N:12129
    Gates HVAC Heater Hose P/N:12129
    $18.99
    $18.99

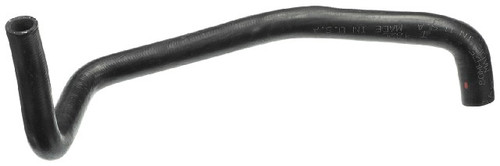

    Gates 12129 heater hose for the 2006-2010 Mazda 5 4-cylinder 2.3L carries coolant on the reservoir-to-filler-neck run. As a Gates molded heater hose, it is factory-molded in an OEM style to suit today's smaller, tighter-fitting engine compartments.

    • Gates Small I.D. Molded Coolant Hose line
    • EPDM tube and EPDM cover with synthetic fiber knit reinforcement
    • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
    • Temperature range of -40 °F to 275 °F (-40 °C to 135 °C)
    • Engineered to resist electrochemical degradation, the leading cause of hose failure

    Quick facts

    • Part: Gates 12129 heater hose
    • Also called: HVAC heater hose
    • Fits: 2006-2010 Mazda 5 4-cylinder 2.3L
    • Position: Reservoir to filler neck
    • Material: EPDM, plastic
    • Condition: New

    Cracks, a soft or swollen spot, or coolant stains on the hose can mean it is wearing out. These signs alone do not prove this hose is the problem; a loose clamp is another common source of a coolant leak.

    Fits

    This listing is one hose, a direct-fit replacement for the 2006-2010 Mazda 5 4-cylinder 2.3L, which takes one hose.

    Specifications

    Fit and size

    • Position: reservoir to filler neck
    • Quantity per vehicle: 1
    • Centerline length: 13.54 in (344 mm)
    • Inside diameter, both ends: 0.25 in (6 mm)

    Build and materials

    • Material: EPDM, plastic
    • Construction: molded
    • Reinforcement: synthetic fiber knit
    • Condition: New
    • Country of origin: United States

    Installation notes

    • Replace the hose clamps each time a new coolant hose is installed.
    • Do not use this hose for fuel or oil transfer applications.

    Interchange: 16703M · LFB715381A · LFB715381B · 13129

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    16703M, LFB715381A, LFB715381B, 13129

    Frequently Asked Questions

    Does the Gates 12129 heater hose fit the 2006-2010 Mazda 5 4-cylinder 2.3L?

    Yes. Gates 12129 is a heater hose for the 2006-2010 Mazda 5 4-cylinder 2.3L, and that car takes one.

    Is this HVAC heater hose approved for marine use?

    Yes. The molded hose is approved for marine applications, and it can also be used for coolant, water and air applications.

    Is this a 1/4 inch heater hose from Gates?

    Yes. Gates 12129 has a 0.25 in (6 mm) inside diameter at both ends and a centerline length of 13.54 in (344 mm).

    Do I need new clamps with this molded hose?

    Yes. Hose clamps should be replaced each time a new coolant hose is installed.

    Is LFB715381A a cross-reference for this heater hose?

    Yes. LFB715381A is a listed interchange number for Gates 12129, so it can be used to match this hose to an older part number.
