Heater Hose for 1985-1986 Ford Mustang & More - Gates 18304

$21.99

Vehicles this part fits

    Part number: 18304
    UPC: 072053191363
    Condition: New
    Weight: 0.22 LBS
    Item Package Quantity: 1
    $21.99
    Adding to cart… The item has been added

    Have questions?

    Gates HVAC Heater Hose P/N:18304
    Gates HVAC Heater Hose P/N:18304
    $21.99
    $21.99

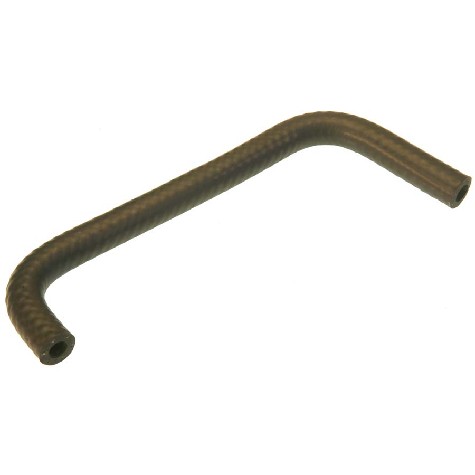

    Gates 18304 heater hose for the 1985-1986 Ford Mustang 4-cylinder 2.3L and other vehicles carries hot engine coolant through the heating circuit. This Gates molded heater hose, also called an HVAC heater hose, is sold one hose per listing.

    • Small I.D. molded hose, factory-molded for today's smaller, tighter engine compartments
    • Used for coolant, water and air applications, and approved for marine applications
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube, synthetic fiber knit reinforcement and EPDM cover
    • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
    • Temperature range of -40 °F to 275 °F (-40 °C to 135 °C)

    Quick facts

    • Part: Gates 18304 heater hose
    • Also called: HVAC heater hose
    • Fits: 1985-1986 Ford Mustang 4-cylinder 2.3L and other vehicles
    • Position: pipe-2 to intake manifold, engine to oil cooler, pipe to throttle body, pipe-1 to intake manifold
    • Material: EPDM
    • Condition: New

    Coolant drips, cracks or bulges, and a soft hose wall can mean the hose is worn out. A loose clamp, a leaking heater core or a failing water pump can be behind coolant loss too, so find the cause before buying a hose. Look it over only with the engine cool. Do not use it to carry fuel or oil.

    Fits

    It fits the 1985-1986 Ford Mustang 4-cylinder 2.3L, the 1990-1993 Geo Storm 4-cylinder 1.6L and the 1985-1989 Merkur XR4Ti 4-cylinder 2.3L. A single hose is needed per application, and this listing is one.

    Specifications

    Fit and size

    • Position: pipe-2 to intake manifold, engine to oil cooler, pipe to throttle body, pipe-1 to intake manifold
    • Quantity per application: 1
    • Centerline length: 12.7 in (323 mm)
    • Inside diameter: 10 mm (0.38 in) at both ends

    Build and materials

    • Construction: molded
    • Material: EPDM
    • Reinforcement: synthetic fiber knit
    • Condition: New
    • Country of origin: United States

    Installation notes

    • Replace the hose clamps each time a new coolant hose is installed.

    Interchange: E5ZZ 18472 D
    14050S · MB113185 · MD113185 · 63172 · 87004 · C87004 · 94479520 · 10304

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    14050S, 18304, MB113185, MD113185, 63172, 87004, C87004, E5ZZ 18472 D, 94479520, 10304

    Frequently Asked Questions

    Is this a heater hose for the 1985-1986 Ford Mustang 4-cylinder 2.3L?

    Yes. Gates 18304 is listed for the 1985-1986 Ford Mustang 4-cylinder 2.3L.

    How long is this Gates heater hose?

    Gates 18304 has a centerline length of 12.7 in (323 mm) and a 10 mm (0.38 in) inside diameter at both ends.

    What temperatures can this EPDM heater hose handle?

    It handles -40 °F to 275 °F (-40 °C to 135 °C). The tube and cover are EPDM with synthetic fiber knit reinforcement.

    Can I use this molded hose for fuel or oil lines?

    No. This hose is for coolant, water and air applications, and it is not for fuel or oil transfer.

    Does Gates 18304 replace Ford E5ZZ 18472 D?

    Yes. E5ZZ 18472 D is one of the numbers Gates 18304 replaces, along with 14050S and 63172.
