Heater Hose for 1996-1998 Buick Skylark & More - Gates 22946

$158.99

Vehicles this part fits

    Part number: 22946
    UPC: 072053576566
    Condition: New
    Weight: 0.90 LBS
    Item Package Quantity: 1
    $158.99
    Adding to cart… The item has been added

    Have questions?

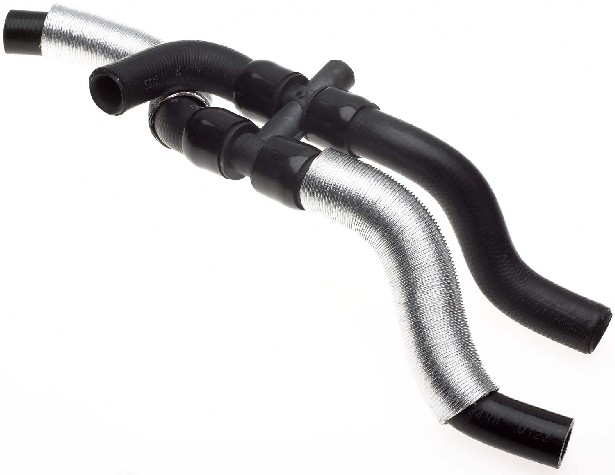

    Gates HVAC Heater Hose P/N:22946
    Gates HVAC Heater Hose P/N:22946
    $158.99
    $158.99

    Gates 22946 heater hose for the 1996-1998 Buick Skylark 4-cylinder 2.4L and other vehicles carries engine coolant between the heater and the engine.

    • Gates Modular Coolant Hose line: a molded modular assembly with four hose branches
    • Specifically-engineered materials resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 for 25 mm (1 in.) ID and over

    Quick facts

    • Part: Gates 22946 heater hose
    • Also called: HVAC heater hose
    • Fits: 1996-1998 Buick Skylark 4-cylinder 2.4L and other vehicles
    • Position: Heater to engine
    • Material: EPDM, plastic
    • Condition: New

    A leaking, cracked or swollen hose, or a heater that blows cool air, can mean the heater hose is wearing out. A thermostat stuck open can also give weak heat, so these signs alone do not prove the hose is at fault.

    Fits

    This heater hose fits the 1996-1998 Buick Skylark 4-cylinder 2.4L, the 1996-1998 Oldsmobile Achieva 4-cylinder 2.4L and the 1996-1998 Pontiac Grand Am 4-cylinder 2.4L as a direct-fit replacement. These cars take one hose each, and this listing is a single hose.

    Specifications

    Fit and size

    • Position: Heater to engine
    • Quantity per vehicle: 1
    • Centerline length: 13.1 in (333 mm)
    • End 1 inside diameter: 0.62 in (16 mm)
    • Ends 2, 3 and 4 inside diameter: 0.75 in (19 mm)
    • Branches: 4

    Build and materials

    • Material: EPDM, plastic
    • Construction: molded modular hose, no internal spring
    • Temperature range: -40 °F to +257 °F (-40 °C to +125 °C)
    • Condition: New
    • Country of origin: United States

    Installation notes

    • Replace the clamps each time a new coolant hose is installed.
    • Not for fuel or oil transfer applications.

    Interchange: 22515M · 64190 · 86103 · E86103 · 22650687 · 22659030 · 64350 · 9581

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    22515M, 22946, 64190, 86103, E86103, 22650687, 22659030, 64350, 9581

    Frequently Asked Questions

    Is this a heater hose for the 1996-1998 Pontiac Grand Am 4-cylinder 2.4L?

    Yes. Gates 22946 fits the 1996-1998 Pontiac Grand Am 4-cylinder 2.4L as a heater-to-engine hose, and the car takes one.

    Are all four ends on this Gates 3/4 heater hose the same size?

    No. Gates 22946 has one end of 0.62 in (16 mm) inside diameter and three ends of 0.75 in (19 mm).

    Does this Gates molded heater hose come with the branches included?

    Yes. Gates 22946 is molded and includes four branches as a modular assembly, with no internal spring and no quick-connect fittings.

    Can this HVAC heater hose be used on fuel or oil lines?

    No. Gates 22946 is a coolant hose and is not for fuel or oil transfer applications.

    What temperatures can this Gates heater hose handle?

    Its temperature range is -40 °F to +257 °F (-40 °C to +125 °C).
