Heater Hose for 2005-2006 Chevrolet Uplander & More - Gates 23335

$77.99

Vehicles this part fits

    Part number: 23335
    UPC: 770075325147
    Condition: New
    Weight: 0.50 LBS
    Item Package Quantity: 1
    $77.99
    Adding to cart… The item has been added

    Have questions?

    Gates HVAC Heater Hose P/N:23335
    Gates HVAC Heater Hose P/N:23335
    $77.99
    $77.99

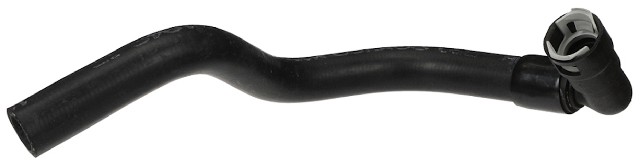

    Keep coolant moving through the heater circuit with the Gates Modular Coolant Hose 23335, a direct-fit heater hose for the listed applications. It fits many vehicles, among them the 2005-2006 Chevrolet Uplander, 2005-2006 Buick Terraza and 2005-2006 Pontiac Montana; see the "Vehicles it fits" section for the full list. It handles the HEATER TO PIPE-1 and PIPE-4 TO HEATER routing, arriving as a modular assembly with the integrated OE components built in.

    • Modular construction: built with OEM-exact hose components such as quick-connects, branch connectors/tees and sensors, similar to OEM specifications.
    • Coolant-rated materials: EPDM tube, synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover.
    • Engineered durability: specifically-engineered materials resist collapse under vacuum and resist electrochemical degradation, the leading cause of hose failure.
    • Standards & range: meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID and SAE 20R4 EC Class D1 for 25mm ID and over; temperature range -40°F to +257°F (-40°C to +125°C).

    Gates recommends replacing the clamps each time a new coolant hose is installed. Do not use for fuel or oil transfer applications.

    Interchange: 20497S · 64362 · F10165 · 15814103 · 19129959 · 89023413 · 16073

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    20497S, 23335, 64362, F10165, 15814103, 19129959, 89023413, 16073

    Frequently Asked Questions

    What vehicles does the Gates 23335 hose fit?

    It fits many vehicles, among them the 2005-2006 Chevrolet Uplander, 2005-2006 Buick Terraza and 2005-2006 Pontiac Montana. See the "Vehicles it fits" section for the full list.

    What is a modular coolant hose?

    It is an assembly built with OEM-exact hose components such as quick-connects, branch connectors/tees and sensors, made to fit the specific application similar to OEM specifications.

    What is this hose made of?

    It uses an EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover. It resists collapse under vacuum and electrochemical degradation.

    Should I replace the clamps when installing it?

    Yes. Gates recommends replacing the clamps each time a new coolant hose is installed to help maintain a proper seal.

    Can this hose be used for fuel or oil lines?

    No. This is a coolant hose only; do not use it for fuel or oil transfer applications. It is rated for a temperature range of -40°F to +257°F.
