Heater Hose for 2010-2017 Toyota Prius & More - Gates 23773

$120.99

Part number: 23773

UPC: 770075504276

Condition: New

Weight: 1.80 LBS

Item Package Quantity: 1

$120.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

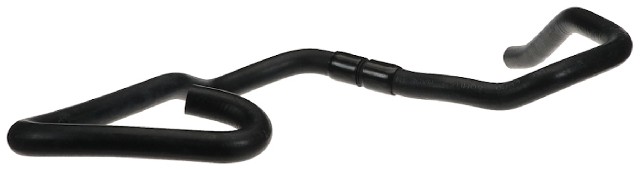

Gates HVAC Heater Hose P/N:23773

$120.99

Description

Gates 23773 heater hose for the 2010-2017 Toyota Prius 4-cylinder 1.8L and other vehicles carries coolant as part of the cooling system. The Gates heater hose is molded and made with OEM-exact hose components.

ThermalPro Premium modular coolant hose with a junction included
Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation, the leading cause of hose failure
EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID

Quick facts

Part: Gates 23773 heater hose
Also called: HVAC heater hose
Fits: 2010-2017 Toyota Prius 4-cylinder 1.8L and other vehicles
Position: Inverter cooling hose-3
Material: EPDM, Plastic
Condition: New

Coolant seeping at the hose ends, a soft or swollen hose, or a falling coolant level can mean the hose is worn. Before ordering, look over the hose and its clamps with the engine off and cool, because a loose clamp or a neighboring hose can leak the same way.

Fits

The 2010-2017 Toyota Prius 4-cylinder 1.8L, the 2017 Toyota Prius Prime 4-cylinder 1.8L and the 2012-2017 Toyota Prius v 4-cylinder 1.8L all take this hose, and so do other Toyota models. If your car is not named here, enter it in the "Vehicles it fits" section to see whether this hose is listed for it.

Specifications

Fit and size

Position: Inverter cooling hose-3
Quantity per vehicle: 1
Centerline length: 48.3 in (1227 mm)
End 1 inside diameter: 0.63 in (16 mm)
End 2 inside diameter: 0.63 in (16 mm)

Build and materials

Material: EPDM, Plastic
Construction: molded, modular, junction included
Branches: 0; quick-connect fittings: 0
Contains spring: No
Temperature range: -40 °F to +257 °F (-40 °C to +125 °C)
Condition: New
Country of origin: United States

In the box

One heater hose with its junction. This listing is one hose, and the vehicle takes one.

Installation notes

Replace the clamps each time a new hose is installed.
Do not use this hose for fuel or oil transfer.

Interchange: 27057X · 87991 · 16459 · G922947020

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

27057X, 23773, 87991, 16459, G922947020

Buyer's Q&A

Frequently Asked Questions

Does the Gates 23773 heater hose fit a 2010-2017 Toyota Prius 4-cylinder 1.8L?

Yes. Gates 23773 is listed for the 2010-2017 Toyota Prius 4-cylinder 1.8L, and the 2017 Toyota Prius Prime 4-cylinder 1.8L is listed too.

What are the dimensions of the Gates molded heater hose?

Gates 23773 has a 16 mm (0.63 in) inside diameter at both ends and a centerline length of 1227 mm (48.3 in).

What temperature range does this HVAC heater hose handle?

The range is -40 °F to +257 °F (-40 °C to +125 °C). The hose meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID.

Should I replace the clamps when I install this heater hose?

Yes, replace the clamps each time a new hose goes on, and keep this heater hose off fuel and oil lines.

Does the 23773 hose have branches or quick connectors?

No. Gates 23773 is a molded hose with a junction included, and it has no branches and no quick-connect fittings.
