Gates HVAC Heater Hose P/N:24118

Be the first to review this product

$72.99

MPN: 24118

UPC: 770075564034

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Gates HVAC Heater Hose P/N:24118

$72.99

Description

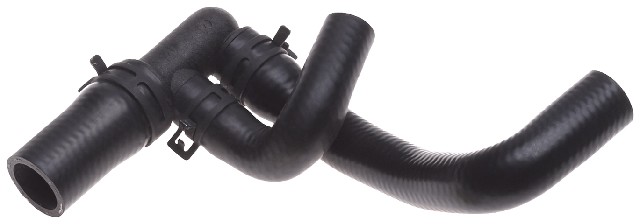

Keep coolant flowing on your Volkswagen with the Gates Modular Coolant Hose 24118. This modular assembly is a direct-fit replacement for the 1993-1999 Volkswagen Golf [L4-2.0L] and Jetta [L4-2.0L], the 1999 Golf [L4-1.9L], the 1996-1997 Passat [L4-1.9L] and 1995-1996 Passat [L4-2.0L], and the 1995-2002 Cabrio [L4-2.0L]. It is cataloged for the water-pump-to-oil-cooler-to-pipe position, routing coolant between those points.

EPDM construction: EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical-coolant-resistant EPDM cover.
Modular design: Built to fit specific applications and similar to OEM specifications, with 2 integrated branch connectors.
Durability-focused materials: Specifically-engineered materials resist collapse under vacuum and are engineered to resist electrochemical degradation, a leading cause of hose failure.
Rated: Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 for 25 mm (1 in.) ID and over; temperature range -40°F to +257°F (-40°C to +125°C).

Not for fuel or oil transfer applications. Gates recommends replacing the clamps each time a new coolant hose is installed.

Interchange: 20629S · 88508 · F11161 · 16772 · R25276 · CHE0193P · 037122058

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

20629S, 24118, 88508, F11161, 16772, R25276, CHE0193P, 037122058

Frequently Asked Questions

What is the Gates 24118?

It is a modular coolant hose with an EPDM tube, synthetic fiber knit reinforcement, and an EPDM cover, built to fit specific applications with 2 integrated branch connectors.

Which vehicles does this hose fit?

It fits the 1993-1999 VW Golf and Jetta [L4-2.0L], 1999 Golf [L4-1.9L], 1996-1997 Passat [L4-1.9L], 1995-1996 Passat [L4-2.0L], and 1995-2002 Cabrio [L4-2.0L]. See the Buyer's Guide tab for full details.

Where does this hose install?

It is cataloged for the water-pump-to-oil-cooler-to-pipe position, routing coolant between those points on the listed applications.

What temperature and standards does it meet?

It meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 for 25 mm and over, with a temperature range of -40°F to +257°F (-40°C to +125°C).

Do I need new clamps, and can I use it for fuel or oil?

Gates recommends replacing the clamps each time a new coolant hose is installed. Do not use this hose for fuel or oil transfer applications.
