Lower Radiator Coolant Hose for 2002 Ford Thunderbird & More - Gates 22840

$219.99

Vehicles this part fits

    Part number: 22840
    UPC: 770075248668
    Condition: New
    Weight: 14.44 LBS
    Item Package Quantity: 1
    $219.99
    Adding to cart… The item has been added

    Have questions?

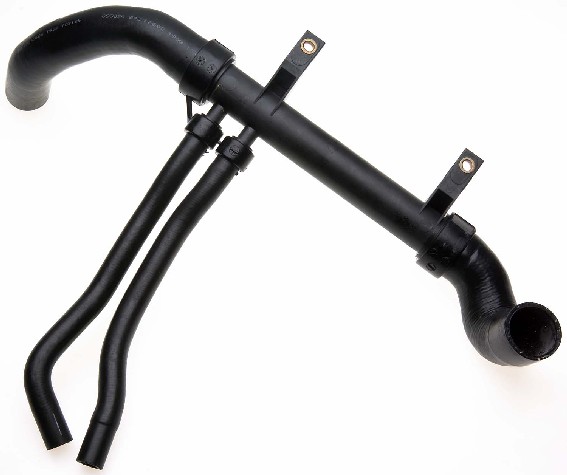

    Gates Radiator Coolant Hose P/N:22840
    Gates Radiator Coolant Hose P/N:22840
    $219.99
    $219.99

    Gates 22840 lower radiator coolant hose for the 2002 Ford Thunderbird V8 3.9L and other vehicles carries coolant through the engine's cooling system. It is built for specific applications and is similar to OEM specifications.

    • Modular coolant hose with 2 branches and molded construction
    • Materials engineered to resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 for 25 mm (1 in.) ID and over
    • Temperature range of -40°F to +257°F (-40°C to +125°C)

    Quick facts

    • Part: Gates 22840 radiator coolant hose
    • Fits: 2002 Ford Thunderbird V8 3.9L and other vehicles
    • Position: Lower
    • Material: EPDM, plastic
    • Condition: New

    With the engine off and cool, look for cracks, bulges, soft spots or seepage at the hose ends. A collapsed hose or a coolant loss can mean the hose is worn. Before you replace it, rule out a loose clamp, a leaking radiator or a water pump leak as the source of the coolant loss.

    Fits

    It fits the 2002 Ford Thunderbird V8 3.9L and the 2000-2002 Lincoln LS V8 3.9L, and each takes one.

    Specifications

    Fit and size

    • Position: Lower
    • Quantity per vehicle: 1
    • Centerline length: 28 in (711 mm)
    • Inside diameter, ends 1 and 2: 1.45 in (37 mm)
    • Inside diameter, ends 3 and 4: 0.61 in (15 mm)
    • Branches: 2

    Build and materials

    • Material: EPDM, plastic
    • Construction: molded, modular
    • Quick connect fittings: none
    • Spring: none
    • Condition: New
    • Country of origin: United States

    In the box

    One radiator coolant hose with 2 branches.

    Installation notes

    • Replace the clamps each time a new coolant hose is installed.
    • Not for fuel or oil transfer applications.

    Interchange: 1W4Z 8286 CA · XW4Z 8286 CA
    26464X · 72690 · E72690 · F11144 · 9475

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    26464X, 22840, 72690, E72690, F11144, 1W4Z 8286 CA, XW4Z 8286 CA, 9475

    Frequently Asked Questions

    Is this Gates lower radiator hose right for the 2002 Ford Thunderbird V8 3.9L?

    Yes. Gates 22840 is a lower radiator coolant hose listed for the 2002 Ford Thunderbird V8 3.9L, and that car takes one.

    Is this Gates coolant hose a modular assembly with branches?

    Yes. Gates 22840 is a molded modular hose with 2 branches and no quick-connect fittings.

    What temperature range does this Gates radiator coolant hose handle?

    It is rated for -40°F to +257°F (-40°C to +125°C). It meets SAE 20R3 EC Class D1 under 25 mm ID and SAE 20R4 EC Class D1 at 25 mm ID and over.

    Is this Gates molded coolant hose reinforced?

    Yes. The tube is EPDM with synthetic fiber knit reinforcement, and the EPDM cover resists heat, ozone and chemical coolants.

    Do I need new clamps with this coolant hose?

    Yes. Replace the clamps whenever a new coolant hose goes on. This hose is for coolant only, not for fuel or oil transfer.
