Front Wheel Bearing and Hub Assembly for 2011-2019 Chevrolet Silverado 2500 HD & More - MOOG 515145

$331.99

Vehicles this part fits

    Part number: 515145
    UPC: 019826207456
    Condition: New
    Weight: 24.20 LBS
    Item Package Quantity: 1
    $331.99
    Adding to cart… The item has been added

    Have questions?

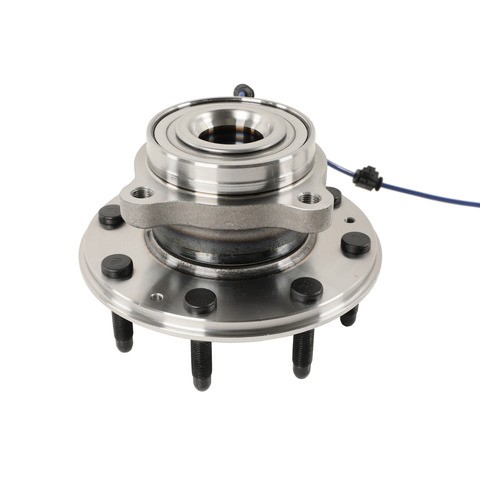

    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:515145
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:515145
    $331.99
    $331.99

    MOOG 515145 front wheel bearing and hub assembly for the 2011-2019 Chevrolet Silverado 2500 HD and other vehicles carries the front wheel and lets it turn on the axle. As with MOOG wheel bearing and hub assemblies in general, the bearing and hub are one unit, so a worn bearing means replacing the whole assembly.

    • Roll-form design sets a consistent, optimal factory-installed preload to minimize excessive noise and wear
    • Application-specific advanced raceway design reduces stress, rotation and heat on components
    • Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
    • Abrasion-resistant ABS cord resists damage, contamination and vibration that may lead to premature wear
    • Comprehensive testing by MOOG engineers throughout design and development

    Quick facts

    • Part: MOOG 515145 wheel bearing and hub assembly
    • Fits: 2011-2019 Chevrolet Silverado 2500 HD and other vehicles
    • Position: Front
    • Condition: New

    A humming or growling noise that changes with speed, or an ABS warning light, can mean a front wheel bearing is wearing out. Worn tires and brake parts can sound similar, so note whether the noise changes as you steer through a gentle curve in normal driving, and let a shop's inspection settle the source first. Plan on doing both front wheels together; this listing is a single assembly, and the vehicle has one on each side of the front axle.

    Fits

    The 2011-2019 Chevrolet Silverado 2500 HD, the 2011-2019 Chevrolet Silverado 3500 HD and the 2011-2019 GMC Sierra 2500 HD all take this front assembly, and so do other vehicles. If yours is not named here, find it in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Bolt circle diameter: 180 mm (7.087 in), 4 flange bolt holes
    • Brake pilot diameter: 126.9 mm
    • Flange diameter: 218.9 mm
    • Flange offset: 73.9 mm
    • Flange shape: trapezoid

    Build and materials

    • ABS sensor: included
    • Condition: New
    • Country of origin: China

    In the box

    One front wheel bearing and hub assembly with the anti-lock brake sensor included.

    Interchange: FW386 · WE61805 · BR930824 · 102237 · 23203922 · 25807420 · 84199397 · 84459703 · 620303 · MB50308 · SP620303

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    FW386, WE61805, BR930824, 102237, 23203922, 25807420, 84199397, 84459703, 620303, MB50308, SP620303

    Frequently Asked Questions

    Is this MOOG wheel hub sold with the bearing built in?

    Yes. MOOG 515145 is a front wheel bearing and hub assembly, so the bearing and hub come as one unit, with the anti-lock brake sensor included.

    Are the wheel studs on this MOOG hub bearing assembly coated?

    Yes. The wheel studs have a coating that resists corrosion and rust, which makes them easier to remove and helps with proper torqueing.

    What are the bolt circle and pilot sizes of these MOOG front wheel bearings?

    MOOG 515145 has a 180 mm (7.087 in) bolt circle with 4 flange bolt holes and a 126.9 mm brake pilot diameter. Its flange diameter is 218.9 mm.

    Does the MOOG 515145 fit the 2011-2019 GMC Sierra 2500 HD?

    Yes, MOOG 515145 is a front hub assembly for the 2011-2019 GMC Sierra 2500 HD, with one on each side of the axle. For other trucks, see the "Vehicles it fits" section.

    How are MOOG bearings like this one tested?

    MOOG engineers run comprehensive testing throughout design and development. The roll-form design sets a consistent preload at the factory to minimize excessive noise and wear.
