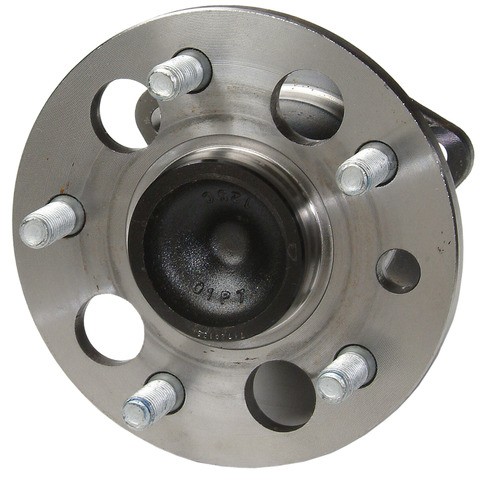

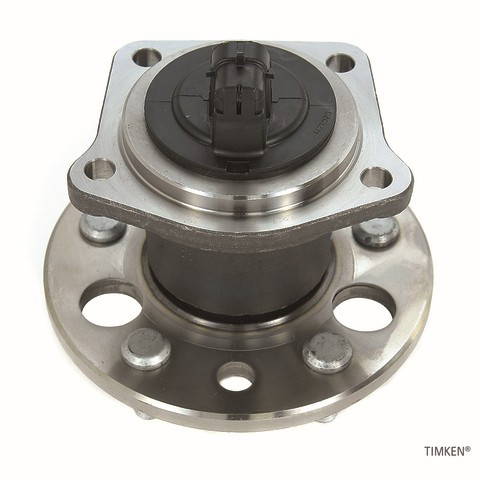

MOOG 512041 rear wheel bearing and hub assembly for the 1998-2003 Toyota Sienna supports the rear wheel and lets it spin. It replaces the bearing and hub as one unit.
- Bearing raceways and rolling elements are matched exactly to minimize noise and vibration
- Design enhancements that extend product life and simplify installation and replacement
- Application-specific design
- Performance proven and quality tested
Quick facts
- Part: MOOG 512041 wheel bearing and hub assembly
- Fits: 1998-2003 Toyota Sienna
- Position: Rear
- Condition: New
A worn bearing can show up as a hum or growl from the rear that changes with road speed, or as a rough feel from one wheel. Tires and brakes can make similar sounds, so look over the rear tires for uneven wear and have a shop confirm the cause before you replace the bearing. This listing is one assembly, and both rear sides are normally replaced together.
Fits
This wheel bearing and hub assembly is a direct-fit replacement for the 1998-2003 Toyota Sienna.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 114.3 mm, 4 flange bolt holes
- Brake pilot diameter: 62 mm
- Flange diameter: 153 mm
- Flange offset: 78.6 mm
Build and materials
- Condition: New
- Anti-lock brake sensor: included
- Country of origin: China
In the box
One wheel bearing and hub assembly with the anti-lock brake sensor included. The 1998-2003 Toyota Sienna takes two.
Interchange: 051-6208 · 407.44009E · 799-0245 · 42450-08010
WE61918 · 516208 · 40744009 · BR930495 · 7467125 · 7470613 · 7470614 · NT512041 · G512041 · H512041 · 712041 · BR930421
This part cross-references / interchanges with the following part numbers:
WE61918, 051-6208, 516208, 40744009, 407.44009E, BR930495, 7467125, 7470613, 7470614, NT512041, 799-0245, G512041, H512041, 712041, BR930421, 512041, 42450-08010, 4245008010
Frequently Asked Questions
Can I use this to replace the wheel bearing on a 1998-2003 Toyota Sienna?
Yes. MOOG 512041 is a rear wheel bearing and hub assembly for the 1998-2003 Toyota Sienna.
Does this rear wheel bearing and hub assembly come with the ABS sensor?
Yes. The listing is one wheel bearing and hub assembly with the anti-lock brake sensor included.
What bolt pattern does the MOOG 512041 wheel bearing and hub assembly have?
MOOG 512041 has four flange bolt holes on a 114.3 mm bolt circle, with a 62 mm brake pilot diameter and a 153 mm flange diameter.
What does a failing rear wheel bearing sound like?
A hum or growl from the rear that changes with road speed can be a sign. A shop can check the bearing for play and noise safely.
Is MOOG 512041 a match for number 42450-08010?
Yes. 42450-08010 is among the numbers MOOG 512041 replaces, along with 051-6208 and 799-0245.
