INA US ZC-76275S timing chain kit for the 2009-2022 Toyota Corolla 4-cylinder 1.8L and other vehicles replaces the oil pump drive chains, tensioner and chain guides. It is also called an engine timing chain kit.
- INA CDC kit for the oil pump drive system, built for consistent oil flow and reliability
- High-grade materials; each component is engineered to endure the highest torque and torque spikes in the engine's operating range
- Precise tolerances on each component to minimize parasitic drag and keep wear low
- Testing and tolerance management at each critical manufacturing stage
- Chain smoothened, accurately set and pinned for low friction, even load distribution and quiet operation
Quick facts
- Part: INA US ZC-76275S timing chain kit
- Also called: engine timing chain kit
- Fits: 2009-2022 Toyota Corolla 4-cylinder 1.8L and other vehicles
- Condition: New
A rattle from the front of the engine or a check-engine light can mean stretched chains or worn guides. A weak oil pump, a faulty crankshaft sensor or worn sprockets can be behind similar signs too, so find the cause before buying this kit.
Fits
The vehicles it fits include the 2009-2022 Toyota Corolla 4-cylinder 1.8L, the 2010-2022 Toyota Prius 4-cylinder 1.8L and the 2017-2022 Toyota Prius Prime 4-cylinder 1.8L, and each one takes one kit. If your car is not named here, open the "Vehicles it fits" section and check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Timing chains in the kit: 2
Build and materials
- Grade: Premium
- Condition: New
- Country of origin: Taiwan
In the box

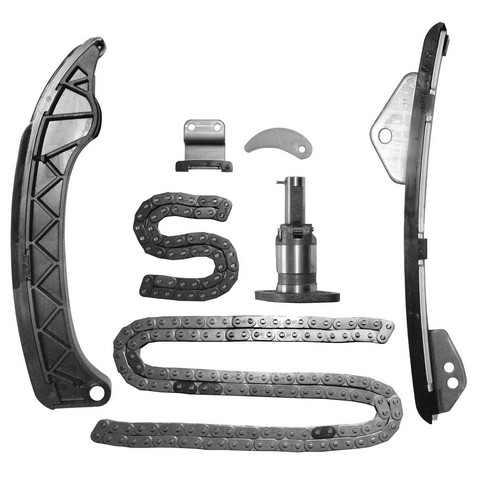

One timing chain kit with two chains, a tensioner and chain guides. Camshaft, crankshaft and drive sprockets and gaskets are not included.
Interchange: 9-4220SX · 13506-0T020 · 13507-0H020 · 13540-0T020 · 13549-0T020 · 13559-0T020 · 13561-0T020 · 13562-0T020 · 9-6251 · 3-4220SX
5591616100 · 76275S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
9-4220SX, 5591616100, 13506-0T020, 13507-0H020, 13540-0T020, 13549-0T020, 13559-0T020, 13561-0T020, 13562-0T020, 9-6251, 3-4220SX, 76275S
Frequently Asked Questions
Is this a Toyota Corolla timing chain kit for a 2009-2022 Corolla 4-cylinder 1.8L?
Yes. INA US ZC-76275S fits the 2009-2022 Toyota Corolla 4-cylinder 1.8L, and each vehicle takes one kit.
Does the INA ZC-76275S kit include sprockets and gaskets?
No. This INA US ZC-76275S kit has two chains, a tensioner and chain guides. Camshaft, crankshaft and drive sprockets and gaskets are not included.
Is this timing chain kit made for the oil pump drive?
Yes. It is an INA CDC kit engineered for the oil pump drive system, aimed at consistent oil flow and quiet operation.
Where is this INA CDC timing chain kit made?
The country of origin is Taiwan. The kit holds two chains, and each vehicle takes one kit.
Does ZC-76275S replace number 13540-0T020?
Yes. 13540-0T020 is one of the numbers this INA US kit replaces; others include 9-4220SX and 76275S.
