Front Strut Assembly for 2009-2013 Ford F-150 - KYB SR4171

$347.99
video
video

Vehicles this part fits

    Part number: SR4171
    UPC: 781552728740
    Condition: New
    Weight: 35.40 LBS
    Item Package Quantity: 1
    $347.99
    Adding to cart… The item has been added

    Have questions?

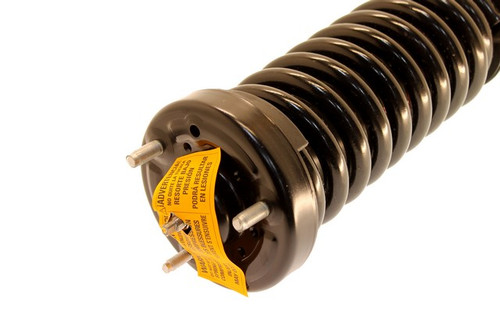

    KYB Suspension Strut and Coil Spring Assembly P/N:SR4171
    KYB Suspension Strut and Coil Spring Assembly P/N:SR4171
    $347.99
    $347.99

    KYB SR4171 front strut assembly for the 2009-2013 Ford F-150 combines the strut, mount and coil spring in one pre-assembled corner unit. This KYB strut assembly handles vehicle weight, sets ride height and acts as the steering pivot.

    • KYB Strut-Plus corner unit with strut, mount and coil spring attached together
    • KYB Excel-G strut with a stronger steel outer shell and application-specific precision-designed damping valves
    • High carbon steel coil spring developed around vehicle attributes and corner weights to help restore the original ride height
    • Application-engineered spring matched to the strut to hold ride height longer without hurting ride quality
    • Engineered to help vehicles with electronic safety systems such as ESC and ABS

    Quick facts

    • Part: KYB SR4171 strut assembly
    • Also called: complete strut and coil spring assembly
    • Fits: the 2009-2013 Ford F-150
    • Position: Front
    • Condition: New

    A leaking strut, a bouncy or nose-diving ride and uneven tire wear can mean a worn strut or spring. Tie rods, ball joints, tires and wheel alignment can be behind similar signs too, so find the cause before buying. If a worn strut or spring is it, this complete strut and coil spring assembly replaces both in one unit.

    Fits

    This KYB front strut assembly fits the 2009-2010 Ford F-150 V8-4.6L or V8-5.4L and the 2010-2013 F-150. The truck takes two, one at each front wheel, and the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2

    Build and materials

    • Type: strut, mount and coil spring assembly
    • Strut: KYB Excel-G
    • Coil spring material: high carbon steel
    • Condition: New
    • Assembled in: United States

    In the box

    A strut, mount and coil spring assembled together.

    Interchange: 171141 · 181141

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    171141, 181141

    Frequently Asked Questions

    Is the KYB complete strut assembly SR4171 right for a 2009-2013 Ford F-150?

    Yes. KYB SR4171 is a front strut assembly for the 2009-2010 Ford F-150 V8-4.6L or V8-5.4L and for the 2010-2013 F-150.

    Are these KYB loaded struts supplied with the mount and spring?

    Yes. The KYB SR4171 is a complete corner unit, with the strut, mount and coil spring assembled together.

    Which strut is inside these KYB complete struts?

    This front strut assembly has a KYB Excel-G strut with a stronger steel outer shell and damping valves designed specifically for the application.

    How do I spot a worn front strut on this KYB SR4171 assembly?

    A clunk over bumps, a lower stance at one corner or heavy body lean in turns can point to a worn strut or spring. A shop can test the strut and the parts around it.

    Does the KYB SR4171 strut assembly replace number 171141?

    Yes. 171141 is an interchange number listed for the KYB SR4171 strut assembly.
