Rear Strut Cartridge for 1991-1995 Toyota MR2 - KYB 765016

$168.99

Vehicles this part fits

    Part number: 765016
    UPC: 781552001027
    Condition: New
    Weight: 5.20 LBS
    Item Package Quantity: 1
    $168.99
    Adding to cart… The item has been added

    Have questions?

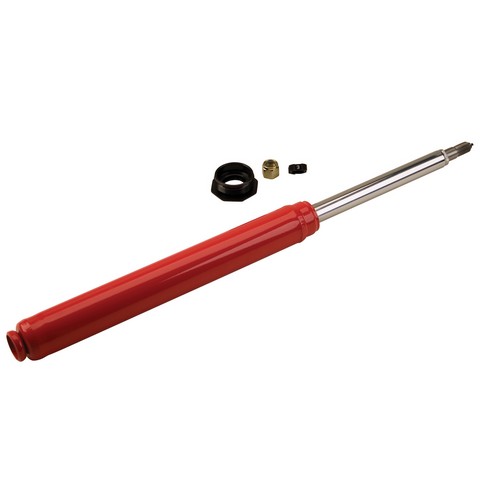

    KYB Suspension Strut Cartridge P/N:765016
    KYB Suspension Strut Cartridge P/N:765016
    $168.99
    $168.99

    KYB 765016 rear strut cartridge for the 1991-1995 Toyota MR2 controls rear wheel movement with a damping rate you adjust yourself. This KYB strut cartridge, also called a suspension strut cartridge, is designed for enthusiasts who tune their own ride control.

    • KYB AGX manually adjustable damping, up to 125% more damping force
    • Adjusts externally without lifting the vehicle, removing the tires or using special tools
    • One adjustment changes both rebound and compression damping
    • Precision multi-stage hydraulic valves for a broad performance range
    • Working cylinder matched with a Teflon coated piston band for a positive seal and longer life
    • Engineered to help vehicles with electronic safety systems such as ESC and ABS

    Quick facts

    • Part: KYB 765016 strut cartridge
    • Also called: suspension strut cartridge
    • Fits: 1991-1995 Toyota MR2
    • Position: Rear

    A worn rear strut cartridge can show up as a bouncy ride over bumps, a floaty rear end or uneven tire wear. These signs alone do not prove the cartridge is the problem; a worn tire or a loose rear mount can feel much the same.

    Fits

    It fits the 1991-1995 Toyota MR2, which takes two. This listing is one cartridge, so order two and fit them together.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2

    Build and materials

    • Type: damping rate adjustable cartridge
    • Adjuster: eight-position knob or four-position screwdriver slot, depending on application
    • Working cylinder: seamless
    • Piston band: Teflon coated

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the KYB 765016 rear strut cartridge fit the 1991-1995 Toyota MR2?

    Yes. KYB 765016 is a rear strut cartridge for the 1991-1995 Toyota MR2, and each car takes two.

    Is the damping on this rear cartridge set with a knob or a screwdriver?

    It depends on the application: either an eight-position knob or a four-position screwdriver slot. Both offer the same overall capability.

    Can the KYB 765016 damping be adjusted without removing the wheels?

    Yes. The KYB 765016 is externally adjustable without lifting the vehicle or removing the tires, and it needs no special tools.

    How much extra damping can the AGX cartridge add?

    Up to 125% more damping force than the vehicle's OEM design. One simple adjustment increases both rebound and compression damping.

    Is there a KYB boot made for these strut cartridges?

    Yes. The KYB SB102 strut boot protects new struts from dirt, debris and salt; it is a separate part from this cartridge.
