Oil Pump for 1967-1970 Ford Mustang & More - Melling M-57B

$122.99

Vehicles this part fits

    Part number: M-57B
    UPC: 729295100683
    Condition: New
    Weight: 4.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $122.99
    Adding to cart… The item has been added

    Have questions?

    Melling Engine Oil Pump P/N:M-57B
    Melling Engine Oil Pump P/N:M-57B
    $122.99
    $122.99

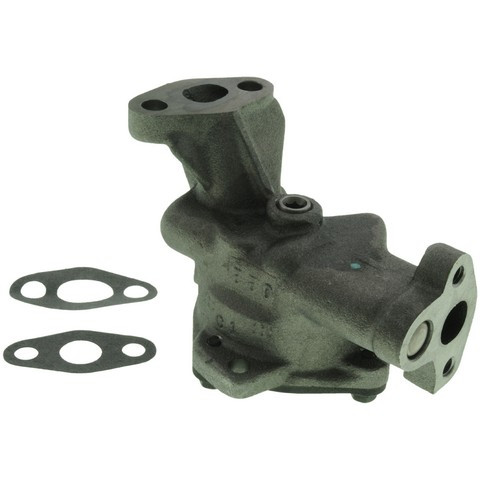

    Melling M-57B oil pump for the 1967-1968 Ford Mustang V8 6.4L, the 1967-1970 Mustang V8 7.0L and other vehicles feeds pressurized oil from the sump to the engine's moving parts. This Melling oil pump is a stock replacement unit.

    • Standard-volume, standard-pressure gear pump with spur gears
    • Cast iron housing and cover with steel gears
    • Gears machined to close tolerances for proper engine pressure and efficient pump operation
    • Precision-ground end plates for wear resistance
    • Each pump tested individually for pressure and flow in conditions designed to duplicate engine operation

    Quick facts

    • Part: Melling M-57B oil pump
    • Also called: engine oil pump
    • Fits: the 1967-1968 Ford Mustang V8 6.4L, the 1967-1970 Mustang V8 7.0L and other vehicles
    • Material: Cast iron housing and cover, steel gears
    • Condition: New

    A worn engine oil pump can show up as a low oil pressure warning light, a ticking or whining noise from the engine, or pressure that drops at hot idle. A clogged pickup screen can also lower oil pressure, so these signs alone don't prove the pump is the problem.

    Fits

    The 1962-1968 Ford Country Sedan V8 6.4L and the 1966-1970 Country Sedan V8 7.0L are among the cars this oil pump fits, along with a wide range of other Ford and Mercury models, and each takes one. It meets or exceeds original equipment specifications. If your car isn't named above, find its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Pickup tube diameter: 16.0 mm (0.61 in)
    • Inlet size: 16.00 mm (0.630 in)
    • Mounting hole diameter: 10.0 mm (0.375 in), 2 mounting holes
    • Height: 94 mm (3.68 in)
    • Width: 117 mm (4.61 in)
    • Drive type: drive shaft

    Build and materials

    • Type: gear oil pump, spur gear, wet sump
    • Pressure and volume: standard pressure, standard volume
    • Housing and cover material: cast iron
    • Gear material: steel
    • Finish: rust preventative
    • Grade: standard replacement
    • Condition: New
    • Country of origin: United States

    In the box

    One oil pump with its pump cover, gears and a gasket. The pickup screen, drive shaft, bolts, washers and cotter pin are not included; plan on new bolts, since the old ones may not be reusable.

    Interchange: A-57B · 41-132U · 41-169 · B-57B · DM-57B · EM-57B · C9ZZ-6600-A · COAE-6600-C · MM-57-B · 601-1044 · OP-57-B · 224-41169
    OP150 · HM57B · 50066

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    A-57B, 41-132U, 41-169, B-57B, DM-57B, EM-57B, OP150, C9ZZ-6600-A, COAE-6600-C, HM57B, MM-57-B, 601-1044, OP-57-B, 224-41169, 50066

    Frequently Asked Questions

    Does Melling M-57B work as a Mustang oil pump for a 1967-1968 Ford Mustang V8 6.4L?

    Yes. Melling M-57B fits the 1967-1968 Ford Mustang V8 6.4L and the 1967-1970 Mustang V8 7.0L, and each takes one.

    Is the M-57B a Melling high volume oil pump?

    No. The M-57B is a standard-volume, standard-pressure gear pump sold as a stock replacement.

    Is the M-57B a Melling high pressure oil pump?

    No. Melling M-57B is a standard-pressure gear pump with no adjustable bypass pressure, and alternate pressure springs are not included.

    Does the Melling M-57B come with a pickup screen or bolts?

    No. It comes with the pump cover, gears and a gasket; the pickup screen, drive shaft and bolts are not included.

    What size is the pickup tube on this oil pump?

    The pickup tube diameter is 16.0 mm (0.61 in), and the inlet size is 16.00 mm (0.630 in).
