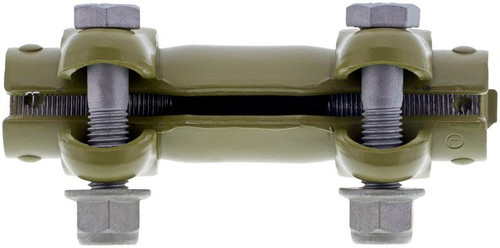

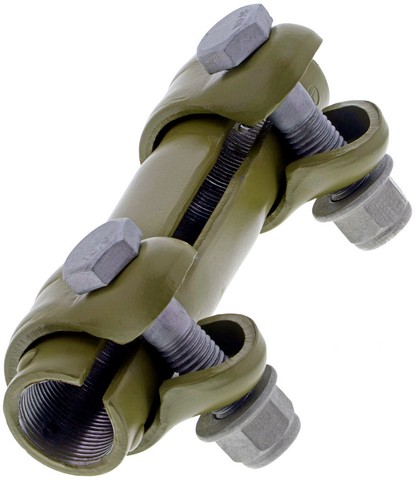

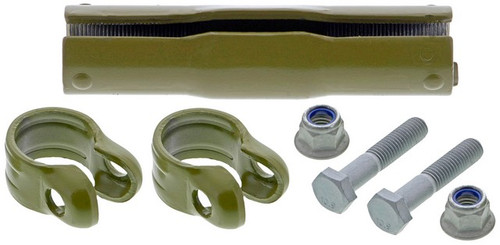

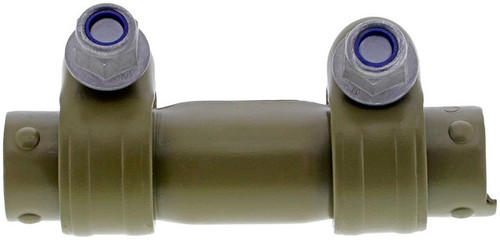

Replace a rusted, seized or bent sleeve in your steering linkage with the Mevotech TTX Tie Rod End Adjusting Sleeve, part number TXES2012S. It is a direct-fit replacement for the listed applications. These include the 1976-1986 Chevrolet K20, 1991-1994 Ford Explorer, 1994-2001 Dodge Ram 1500, 2003-2014 Ford E-250 and 2007-2018 Jeep Wrangler, plus many more Chevrolet, GMC, Dodge, Ford, Jeep and Mazda trucks, vans and SUVs. See the Buyer's Guide tab for the full list and engine details.
This threaded sleeve connects sections of the steering linkage and is turned to set toe during a wheel alignment. Catalog positions vary by application and include front, front right, right (steering arm to steering arm), left (pitman arm to connecting tie rod), right (pitman arm to steering arm) and pitman arm to connecting rod.
- Resists corrosion: A protective surface treatment helps prevent rust buildup and increase longevity.
- Alignment adjustment: Turning the sleeve changes the effective length of the linkage so toe can be set to specification.
- Application-specific positions: Cataloged for the steering positions listed above for each application.
Signs this part may need replacing include a sleeve that is rusted or seized and will not turn during an alignment, a visibly bent sleeve, an off-center steering wheel, or uneven tire wear. If a damaged sleeve is the cause, this part replaces it. Diagnose the steering linkage first, and have a wheel alignment performed after installation.
Interchange: 19476367 · E7TZ3281A
This part cross-references / interchanges with the following part numbers:
19476367, E7TZ3281A, TXES2012S
