Rear Shock Absorber for 1977-1982 Chevrolet Impala & More - Monroe Shocks & Struts MA717

$193.99
Sold out

Vehicles this part fits

    Part number: MA717
    UPC: 048598030801
    Condition: New
    Weight: 11.20 LBS
    Item Package Quantity: 1
    $193.99

    Out of stock

    Have questions?

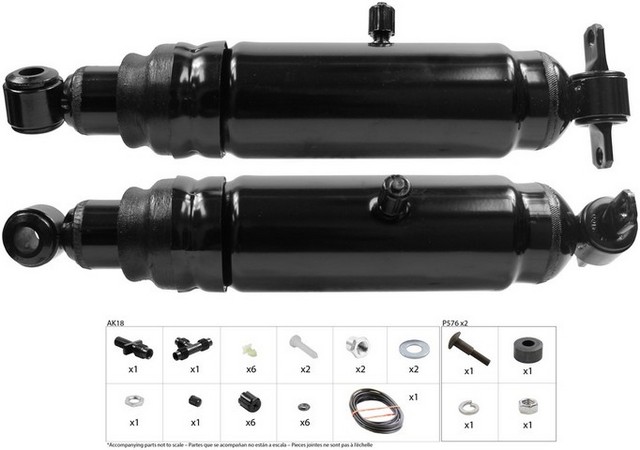

    Monroe Shocks & Struts Air Shock Absorber P/N:MA717
    Monroe Shocks & Struts Air Shock Absorber P/N:MA717
    $193.99
    $193.99

    Monroe Shocks & Struts MA717 rear shock absorber for the 1977-1982 Chevrolet Impala and other vehicles helps hold the rear at level height under extra weight with an air-adjustable chamber. It is meant for hauling, and the load it can carry is limited by the vehicle's suspension, tires and transmission.

    • Max-Air air chamber inflates or deflates up to 150 PSI to hold level height with up to 1,200 lbs. of added weight
    • Special air fitting resists air leakage, ties into the factory system where applicable or inflates manually with an air compressor
    • Full-displaced valving on compression and extension cycles for a smooth ride
    • Hardened and precision ground piston rod, sintered iron piston and a lubricated air sleeve that reduces friction
    • All-weather fluid with special modifiers to handle extreme temperatures and help reduce friction

    Quick facts

    • Part: Monroe Shocks & Struts MA717 shock absorber
    • Fits: 1977-1982 Chevrolet Impala and other vehicles
    • Position: Rear
    • Condition: New

    A rear end that sags or bottoms out under a load, a floating or bouncy ride, or an oily film on the shock body can mean the shock absorber is worn. Before replacing it, look over the body, boot, mounting bushings and air fitting with the engine off, because a sagging rear can also come from the springs or an air leak. Rear shocks are normally replaced as a left and right pair.

    Fits

    This shock absorber is listed for a wide range of Chevrolet, Buick, Oldsmobile and Pontiac models, including the 1977-1982 Chevrolet Impala, the 1975 Chevrolet Malibu and the 1977-1996 Chevrolet Caprice. The quantity per application is one, and it is a direct-fit replacement for these vehicles.

    Specifications

    Fit and size

    • Position: rear
    • Quantity per application: 1
    • Compressed length: 12.75 in (323.8 mm)
    • Extended length: 20.875 in (530.2 mm)
    • Travel length: 8.125 in
    • Upper mount: cross pin mount, closed ended, 5/16 hole ID (both ends) x 2.7/8 pin length (hole center to center)
    • Lower mount: loop bushing and cantilever pin mount, 1/2 stud diameter x 1 5/16 stud length (center of loop to frame)
    • Measuring points: center of loop (body end), center of cross pin (rod end)

    Build and materials

    • Type: air shock absorber
    • Air chamber pressure: up to 150 PSI
    • Dust shield material: rubber
    • Dust shield and boot: included
    • Condition: new
    • Country of origin: China

    In the box

    The shock absorber with its dust shield and boot.

    Interchange: 49152 · 49334 · 15300

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    49152, 49334, MA717, 15300

    Frequently Asked Questions

    Does the Monroe Shocks & Struts MA717 rear shock absorber fit a 1977-1982 Chevrolet Impala?

    Yes. The Monroe Shocks & Struts MA717 is listed as a rear shock absorber for the 1977-1982 Chevrolet Impala, and for many other models. If your car is not named here, look it up in the "Vehicles it fits" section.

    How much extra weight can the Max-Air MA717 air shock handle?

    Inflating the air chamber, up to 150 PSI, keeps the rear at level height with up to 1,200 lbs. of added weight. The vehicle's suspension, tires and transmission set the real limit, so check the owner's manual.

    Does the Monroe MA717 come with a dust shield and boot?

    Yes. The Monroe MA717 includes a rubber dust shield and a boot. Air shock accessory and shock air hose AK kits are separate items that pair with it, and they vary by application.

    What should I look for on a worn rear air shock absorber?

    With the engine off, look for an oily film on the shock body, a torn boot or worn mounting bushings. A rear end that sags or bounces under load can also mean the shock is worn.

    Can I fill the MA717 air shock with a regular air compressor?

    Yes. The special air fitting inflates manually with an air compressor, and on some applications it ties into the factory system instead. The fitting is designed to resist air leakage.
