Rear Shock Absorber for 1978-1995 Chevrolet G10 & More - Monroe Shocks & Struts MA817

$192.99

Vehicles this part fits

    Part number: MA817
    UPC: 048598031730
    Condition: New
    Weight: 11.50 LBS
    Item Package Quantity: 1
    $192.99
    Adding to cart… The item has been added

    Have questions?

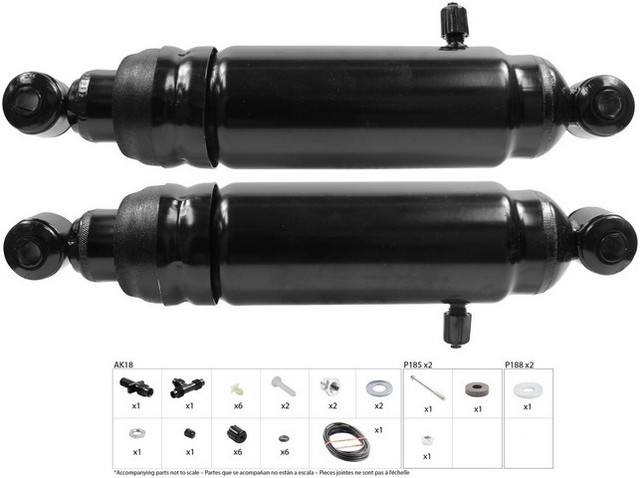

    Monroe Shocks & Struts Air Shock Absorber P/N:MA817
    Monroe Shocks & Struts Air Shock Absorber P/N:MA817
    $192.99
    $192.99

    Monroe Shocks & Struts MA817 rear shock absorber for the 1978-1995 Chevrolet G10 and other vehicles holds the rear at level height under load with an air chamber. Load capacity is limited by the vehicle's suspension, tires and transmission; see the owner's manual.

    • Max-Air air chamber inflates or deflates up to 150 PSI to keep level height with up to 1,200 lbs of added weight
    • Special air fitting resists air leakage, ties into the factory system where applicable or inflates with an air compressor
    • Full-displaced valving on compression and extension cycles for a smooth ride
    • Hardened, precision-ground piston rod and sintered iron piston for consistent performance and longer service life
    • Lubricated air sleeve reduces friction for smooth operation
    • All-weather fluid with special modifiers to handle extreme temperatures and help reduce friction

    Quick facts

    • Part: Monroe Shocks & Struts MA817 rear shock absorber
    • Fits: 1978-1995 Chevrolet G10 and other vehicles
    • Position: Rear
    • Condition: New

    Fluid on the shock body, a rear end that sags or bounces, or an air fitting that will not hold pressure can mean the shock is worn or leaking. Before you replace it, rule out a worn bushing, a damaged air line or fitting and a spring problem, since those can look much alike. Rear shocks are normally replaced in pairs on the same axle.

    Fits

    The 1978-1995 Chevrolet G10, the 1978-1995 Chevrolet G20 and the 1979-1995 GMC G1500 are among the vehicles it fits, and it fits more. Open the "Vehicles it fits" section to look up your exact model and engine. The catalog lists a quantity of one per application for the 1978-1995 Chevrolet G20.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per application: 1
    • Compressed length: 12.75 in (323.8 mm)
    • Extended length: 20.875 in (530.2 mm)
    • Travel length: 8.125 in
    • Upper and lower mount: Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 1.11/16 Sleeve OAL
    • Measuring points, body end and rod end: center of loop

    Build and materials

    • Type: air-adjustable air shock absorber
    • Air pressure: up to 150 PSI
    • Dust shield: rubber, included
    • Boot: included
    • Condition: New
    • Country of origin: China

    In the box

    Rear air shock absorber with its dust shield and boot.

    Interchange: 49212

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    49212, MA817

    Frequently Asked Questions

    Will the Monroe MA817 fit a 1978-1995 Chevrolet G10?

    Yes. Monroe Shocks & Struts MA817 is listed as a rear shock absorber for the 1978-1995 Chevrolet G10. For other models, open the "Vehicles it fits" section.

    How much weight and air pressure can the Max-Air MA817 handle?

    The air chamber inflates or deflates up to 150 PSI to maintain level height with up to 1,200 lbs of added weight. Capacity is limited by suspension, tires and transmission.

    How do I inflate this Max-Air rear shock?

    On the Monroe MA817, the air fitting ties into the factory system where applicable, or you can inflate it with an air compressor. Monroe air shock accessory and shock air hose AK kits pair with it, depending on the application.

    Does this air shock come with a dust shield and boot?

    Yes. The dust shield and the boot are both included with this rear air shock absorber, and the dust shield is rubber.

    What are the compressed and extended lengths of this rear air shock?

    Compressed length is 12.75 in (323.8 mm), extended length is 20.875 in (530.2 mm) and travel is 8.125 in. Both ends use a loop bushing and sleeve mount.
