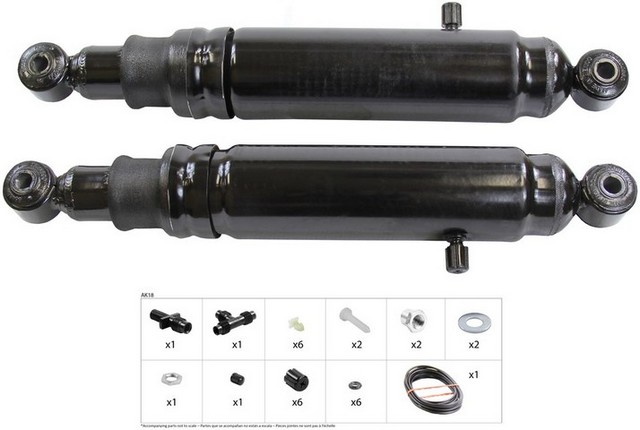

Monroe Shocks & Struts MA835 rear shock absorber for the 2009-2014 Ford F-150 and other vehicles holds ride height level when you haul extra weight. You add or release air to match the load; the vehicle's suspension, tires and transmission limit the capacity, so see the owner's manual.
- Monroe Max-Air line, an air-adjustable shock absorber
- Air chamber adjusts up to 150 PSI to hold level height under up to 1,200 lbs of added weight
- Special air fitting resists leakage and ties into the factory system where applicable, or inflates manually with an air compressor
- Full-displaced valving on compression and extension cycles for a smooth ride
- Hardened, precision-ground piston rod, sintered iron piston and a lubricated air sleeve that reduces friction
- All-weather fluid with special modifiers to handle extreme temperatures and help reduce friction
Quick facts
- Part: Monroe Shocks & Struts MA835 shock absorber
- Fits: 2009-2014 Ford F-150 and other vehicles
- Position: Rear
- Condition: New
Worn shocks can show up as a bouncy ride, nose dive when braking or oil on the shock body. Before you replace these shocks, rule out tires, springs, bushings and the air fitting, since any of them can produce a ride complaint like this one.
Fits
This shock absorber fits the 2009-2014 Ford F-150 and the 2009-2014 Ford Lobo. The listing is a pack of 2, one for each side of the rear axle.
Specifications
Fit and size
- Position: Rear
- Pieces per listing: 2
- Compressed length: 16.9 in (429.3 mm)
- Extended length: 28.26 in (717.8 mm)
- Travel length: 11.36 in
- Measuring points: center of loop at body end and rod end
- Lower mount: Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL
- Upper mount: Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 38.1MM Sleeve OAL
Build and materials
- Type: air adjustable shock absorber
- Maximum air pressure: 150 PSI
- Boot: included
- Condition: New
- Country of origin: China
In the box
Two rear shock absorbers with boots. A dust shield is not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Monroe Max-Air MA835 the right shock for a 2009-2014 Ford F-150?
Yes. Monroe Shocks & Struts MA835 is a rear shock absorber for the 2009-2014 Ford F-150 and the 2009-2014 Ford Lobo.
How much air pressure can the MA835 air shock take?
The air chamber can be inflated or deflated up to 150 PSI to keep level height with up to 1,200 lbs of added weight. Suspension, tires and transmission limit the capacity.
Can I fill these air shocks with a regular air compressor?
Yes. The air fitting inflates manually with an air compressor or ties into the factory system where applicable, and Monroe air shock accessory and air hose AK kits pair with it, depending on application.
What comes in the Monroe Shocks & Struts MA835 pack?
The pack holds two rear air shock absorbers with boots. A dust shield is not included.
What are the compressed and extended lengths of this rear air shock?
It measures 16.9 in compressed and 28.26 in extended, for 11.36 in of travel. Both lengths are measured from the center of the loop at each end.
