Rear Shock Absorber for 2009-2014 Ford F-150 - Monroe Shocks & Struts MA836

$191.99

Vehicles this part fits

    Part number: MA836
    UPC: 048598163059
    Condition: New
    Weight: 13.00 LBS
    Item Package Quantity: 1
    $191.99
    Adding to cart… The item has been added

    Have questions?

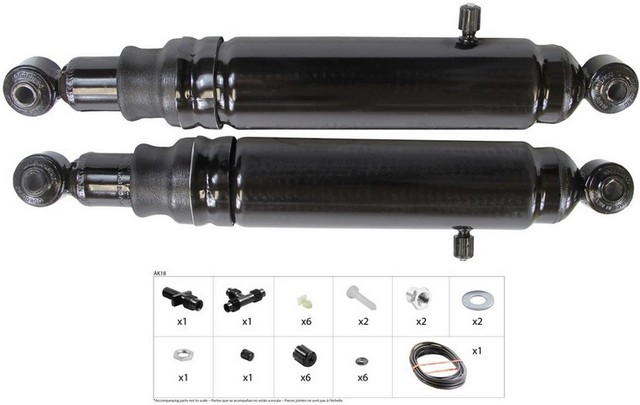

    Monroe Shocks & Struts Air Shock Absorber P/N:MA836
    Monroe Shocks & Struts Air Shock Absorber P/N:MA836
    $191.99
    $191.99

    Monroe Shocks & Struts MA836 rear shock absorber for the 2009-2014 Ford F-150 holds ride height level under load with an adjustable air chamber. It is made for hauling, and capacity is limited by the vehicle's suspension, tires and transmission, so see the owner's manual.

    • Max-Air air chamber inflates or deflates up to 150 PSI to keep level height with up to 1,200 lbs of added weight
    • Special air fitting resists air leakage and ties into the factory system where applicable, or inflates manually with an air compressor
    • Full-displaced valving on compression and extension cycles for a smooth ride
    • Hardened, precision-ground piston rod and sintered iron piston for consistent performance and longer service life
    • Lubricated air sleeve reduces friction for smooth operation
    • All-weather fluid with special modifiers for extreme temperatures and reduced friction

    Quick facts

    • Part: Monroe Shocks & Struts MA836 shock absorber
    • Fits: 2009-2014 Ford F-150
    • Position: Rear

    A sagging rear end under load, a bouncy ride, or oil or air leaking at the shock can mean a rear shock is worn. With the engine off and the truck parked, look over the shock bodies, boots and air fittings for fluid or damage, and find the cause of the symptom before you replace anything.

    Fits

    This rear air shock absorber fits the 2009-2014 Ford F-150.

    Specifications

    Fit and size

    • Position: Rear
    • Pieces per listing: pack of 2
    • Compressed length: 17.4 in (442 mm)
    • Extended length: 29.26 in (743.2 mm)
    • Travel length: 11.86 in
    • Upper mount: Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 38.1MM Sleeve OAL
    • Lower mount: Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL
    • Measuring points, body and rod ends: center of loop

    Build and materials

    • Type: air shock absorber
    • Maximum air pressure: 150 PSI
    • Added load to maintain level height: up to 1,200 lbs
    • Country of origin: China

    In the box

    A pack of 2 rear air shock absorbers with a boot. A dust shield is not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    MA836

    Frequently Asked Questions

    Does the Monroe MA836 rear air shock fit a 2009-2014 Ford F-150?

    Yes. Monroe Shocks & Struts MA836 is a rear shock absorber listed for the 2009-2014 Ford F-150.

    How much air pressure can the Max-Air MA836 take?

    The air chamber takes up to 150 PSI to hold level height with up to 1,200 lbs of added weight. That capacity is limited by the vehicle's suspension, tires and transmission.

    Is a dust shield included with these rear air shocks?

    No. The Monroe MA836 pack of 2 includes a boot, but a dust shield is not included.

    Do I need an air compressor to adjust this air shock?

    The special air fitting on this shock ties into the factory system where applicable, or you inflate the shock manually with an air compressor.

    How can I tell if a rear air shock is worn?

    Rear sag under load, a bouncy ride, or oil or air leaking at the shock can be signs. With the engine off, look over the shock body and boot for fluid or damage; a shop can test the rest.
