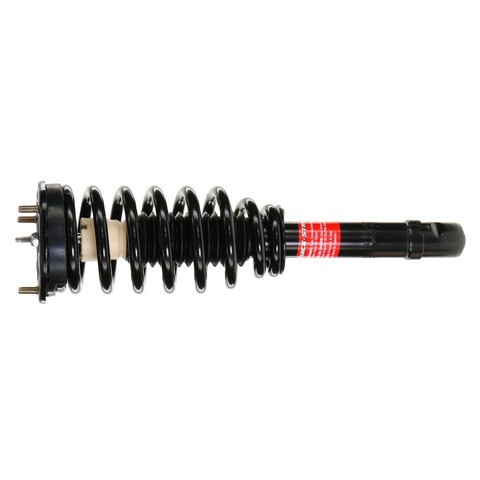

Monroe 171364 front strut assembly for the 2002-2005 Hyundai XG350 and other vehicles replaces the strut, coil spring and upper mount as one unit. This Monroe quick strut is a complete strut and coil spring assembly that arrives with the parts already put together.
- Strut, coil spring and upper strut mount come preassembled in the Quick-Strut line
- Application-specific coil spring, mount and strut designs, ride tested
- Coil spring is calibrated to restore ride height and support the vehicle's weight
- Upper strut mount helps with steering precision and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing backs it up
- Reduces body sway, vibration and road harshness before they reach the passenger cabin
Quick facts
- Part: Monroe 171364 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2002-2005 Hyundai XG350 and other vehicles
- Position: Front
- Condition: New
A worn strut assembly can show up as a bouncy ride, nose dive under braking or a clunk over bumps. Before you replace it, rule out uneven tire wear and wheel alignment problems, which can cause similar noise and pulling.
Fits
It fits the 2002-2005 Hyundai XG350 and the 2001 Hyundai XG300, and each takes two front struts. Its vehicle-specific design is fit checked. This listing is one strut assembly; the other front strut is normally replaced at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Body length: 12 in
- Compressed length: 12.375 in (314.3 mm)
- Extended length: 17.75 in (450.8 mm)
- Travel length: 5.375 in
Build and materials
- Type: gas charged, passive suspension
- Compression and ride height: not adjustable
- Coating: protective rust-resistant coating
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One strut assembly with its coil spring, upper strut mount, insulators for the spring and the mount, and mounting hardware.
Installation notes
- No spring compressor is needed for strut replacement.
Interchange: 18817631 · 2335556 · 5461139404 · 33HY1121 · 92130349
This part cross-references / interchanges with the following part numbers:
18817631, 2335556, 5461139404, 33HY1121, 171364, 92130349
Frequently Asked Questions
Will the Monroe quick strut assembly fit a 2002-2005 Hyundai XG350?
Yes. Monroe 171364 fits the 2002-2005 Hyundai XG350 and the 2001 Hyundai XG300, and each of them takes two front struts.
Does the Monroe Quick-Strut strut and coil spring assembly need a spring compressor?
No. Monroe 171364 arrives fully assembled, so strut replacement needs no spring compressor.
What is included with the Monroe complete strut assembly?
The front strut assembly includes the coil spring, upper strut mount, insulators for the spring and the mount, and mounting hardware.
Is this Monroe strut assembly gas charged?
Yes. This front strut assembly is gas charged and has passive suspension, with no adjustable compression or ride height.
How long is the Monroe 171364 strut assembly compressed and extended?
Monroe 171364 measures 12.375 in (314.3 mm) compressed and 17.75 in (450.8 mm) extended, with a travel length of 5.375 in.
